About the product

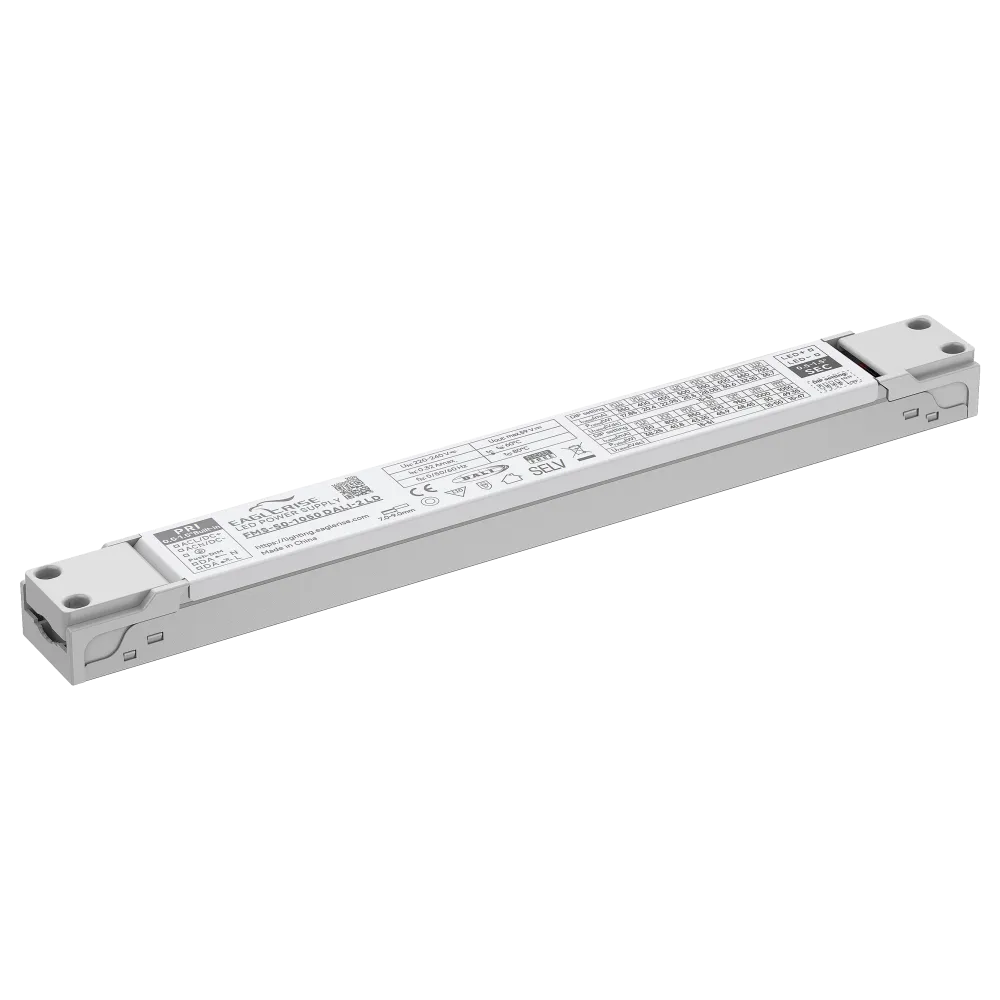

The LED driver FMS-50-1050 DALI2 LD with constant current output is designed for the operation of LED lighting applications from 350 to 1050 mA in the voltage range from 15 to 51Vdc. The output current can be set using the DIP switch on the device. The dimming range is 1 to 100% and can be controlled via AC Push or DALI.
Technical data
- Forward voltage range 15 to 51Vdc
- Adjustable output currents 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA (Factory Setting)
- Dimming range 1 to 100% from 550 to 1050mA and minimum dimming level 5mA at 350 to 500mA£
- Supports DALI Maintenance (Part 251,252,253)
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 50 W |
| Output voltage range (VDC) | 15-51 V |
| Output current | 350-1050 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 280 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI, AC Push Dimming |
| Efficiency | 90.00% |
