About the product

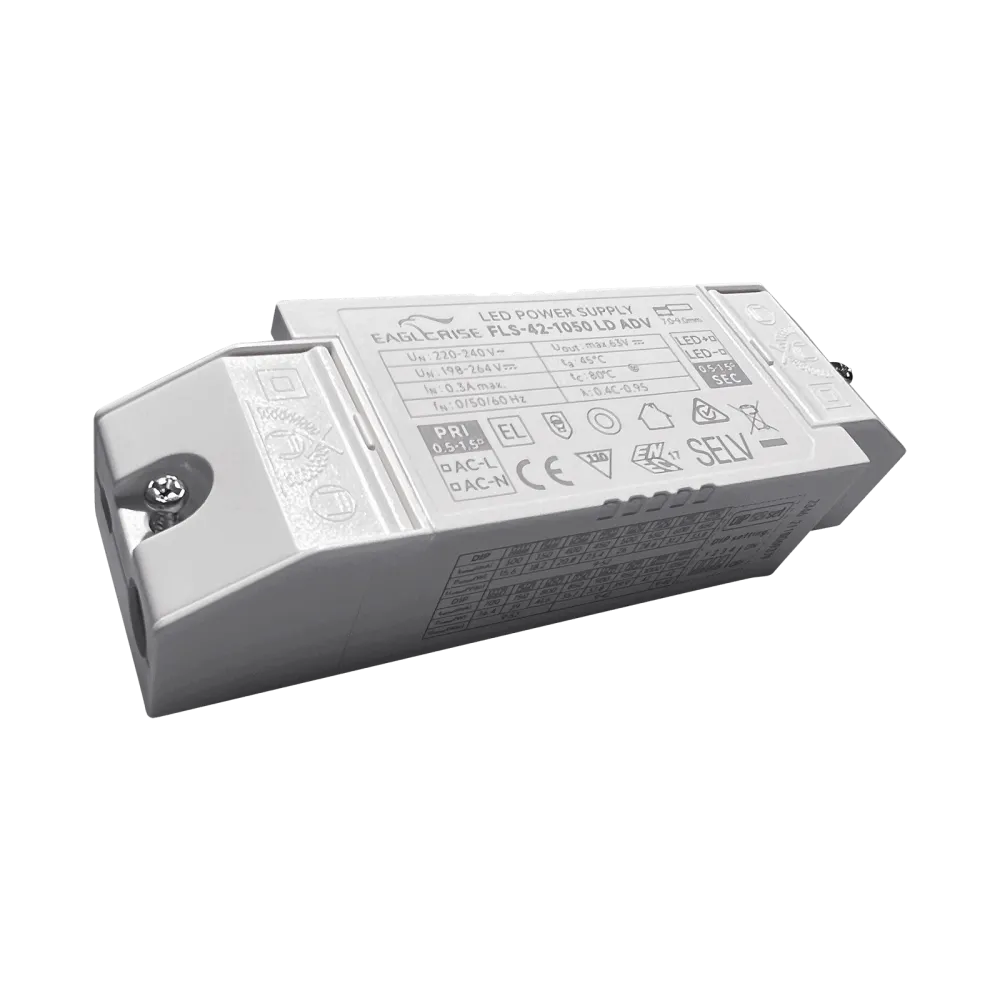

The Flexible Line LED driver FLS-42-1050-LD-ADV-C with constant current output is designed to drive LED lighting applications from 300 to 1050mA in the voltage range of 9 to 52Vdc. The output current can be set via DIP switch on the unit. Side covers with strain relief are fitted ex works.
Technical data
- Forward voltage range 9 to 52Vdc
- Adjustable output currents 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- Side cover available as accessory
- Dimensions 97 x 43 x 30mm (L x W x H) without Side Cover / 130x43x30mm with Side Cover
Product specifications
| Power | 42 W |
| Output current | 300-1050 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 43 mm |
| Length | 130 mm |
| Application | Single color |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 9-52 V |
