About the product

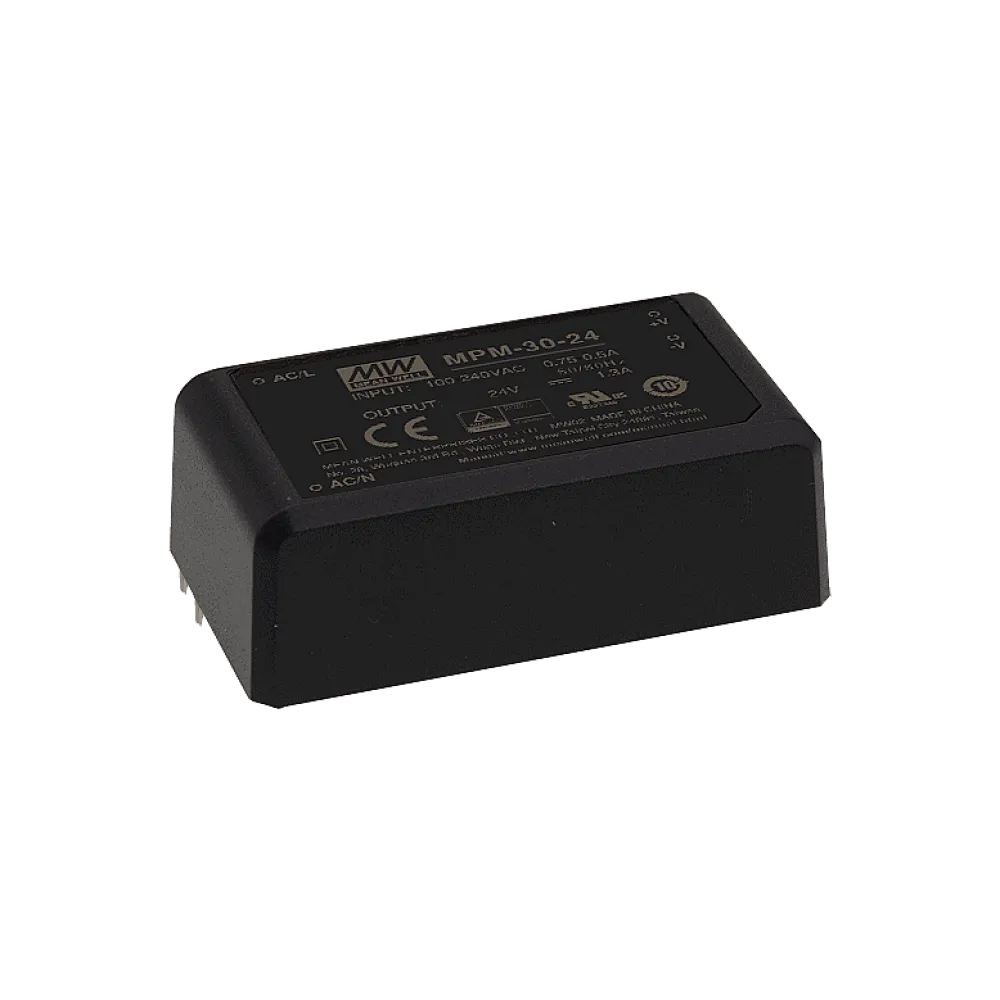

MPM-30 is an high density and small size AC/DC encapsulated type medical grade on board power supply series
Technical data
- Input voltage range 80 bis 264Vac
- No load power consumption 0.075W
- Extremely low leakage current (80µA)
- Class II unit without FG
- Wide operating temp. range -40 to +85°C
- 2x MOPP isolation
- Suitable for BF application with appropriate system consideration
- Operating altitude 5000 meters
- Medical safety approved according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Design refer to household certification EN60335-1
- 3 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Certificates | EN60601-1 / Medical, UL60601-1 / Medical |
| Input voltage range (VAC) | 80-264 V |
| Height | 24 mm |
| Width | 39 mm |
| Length | 69.5 mm |
| Application | Household, Medical |
| Power | 30 W |
| Efficiency | 86.00% |
