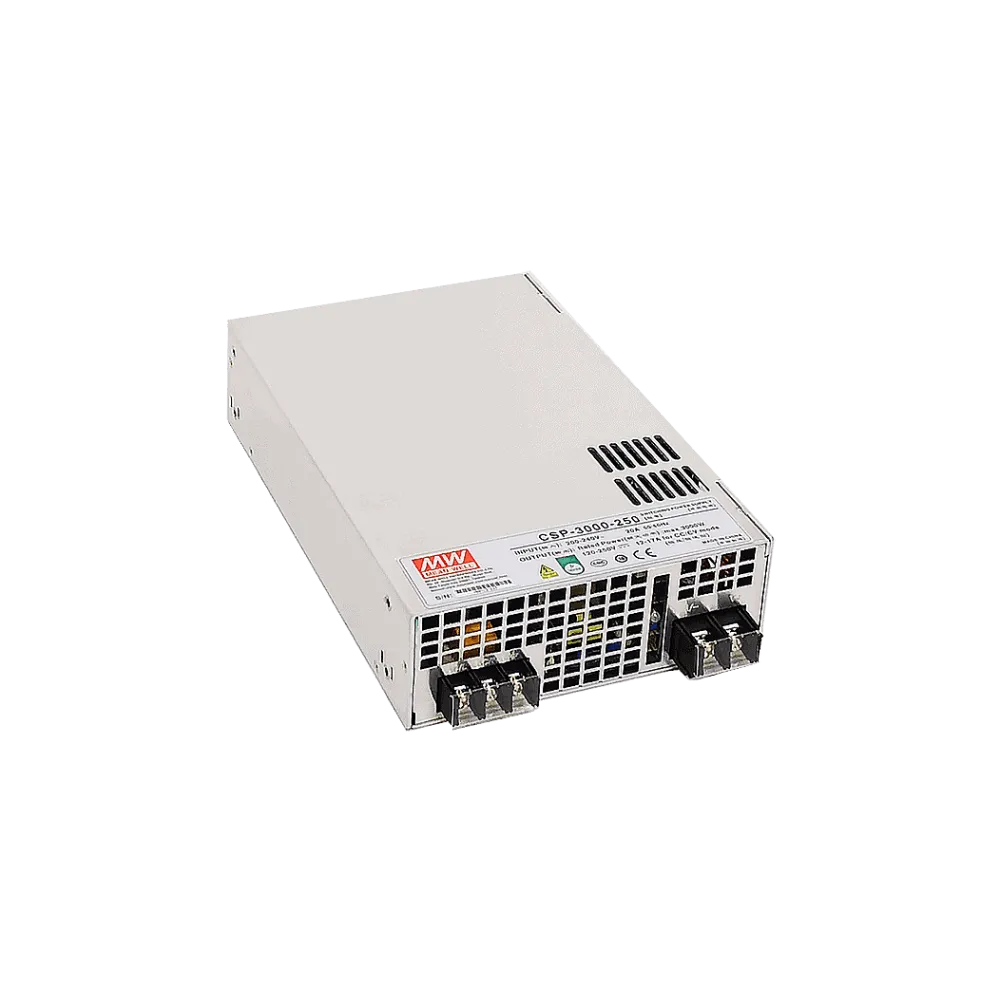

3000W Enclosed Power Supply 400V/7.5A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

CSP-3000 series is a single-output high voltage power supply. Combined with constant current limit set at 100% output, this product series is very suitable for laser, UV curing, and charging equipment.

Technical data

180~264VAC input
Built-in active PFC function
High efficiency up to 93%
Built-in DC fans for forced air cooling
Output voltage/current programmable
Active current sharing up to 7200W(2+1)
Built-in remote ON/OFF control & power OK signal
Auxiliary power 12V@0.4A
Protections: short circuit/over current/over voltage/over temperature
UL/Dekra/EAC/CB/CE safety approved
Dimensions (LxWxH): 278 x 177.8 x 63.5 mm
5 years warranty
Manufacturer MEAN WELL

Product specifications

Output voltage (VDC)	400 V
Manufacturer warranty	5 years
Manufacturer	MEAN WELL
Control signals	Programmable output current, Programmable output voltage, Remote ON/OFF
Status signals	DC OK signal
Additional functions	12V DC auxiliary output, Parallel connectable
Application	ITE/AV
Voltage setting range	60.0-400.0 VDC
Height	63.5 mm
Width	177.8 mm
Length	278 mm
Protection class	Class I
Input voltage range (VAC)	180-264 V
Power	3000 W
Efficiency	93.00%
