About the product

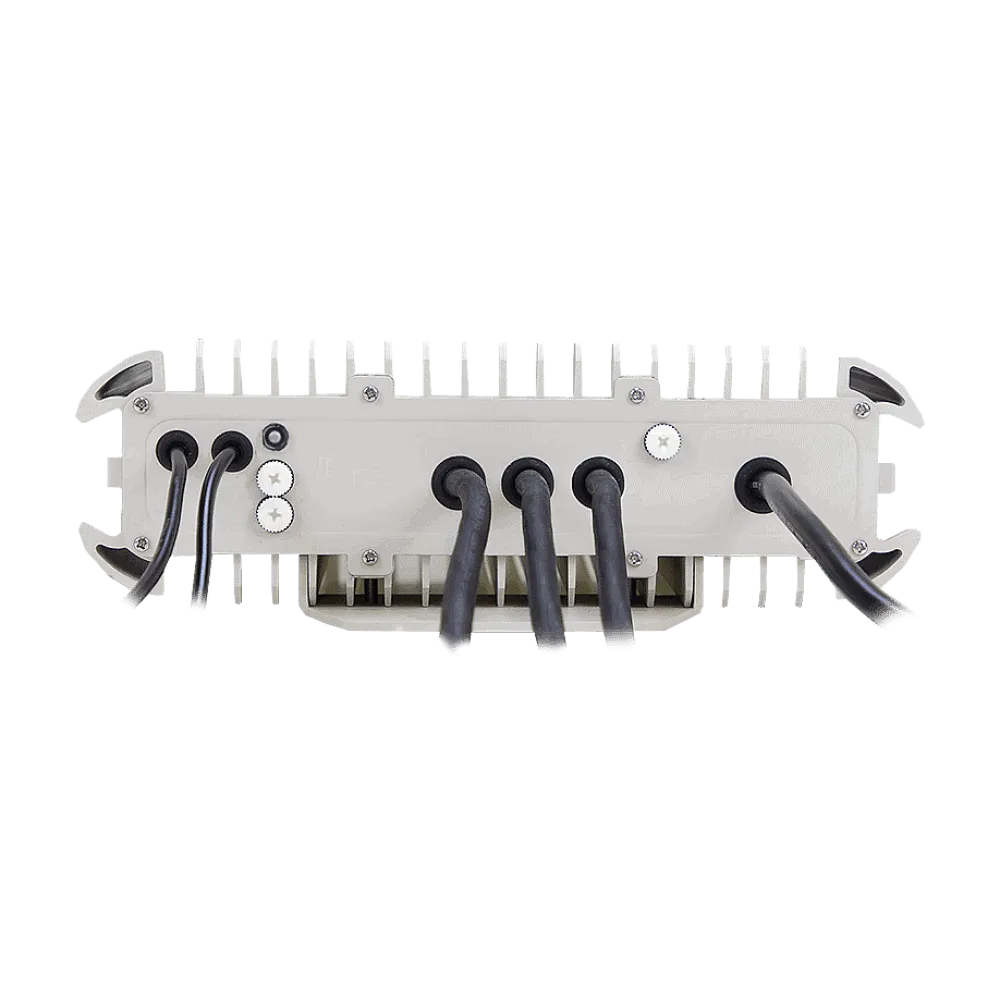

HEP-2300 is a 2300W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high vibration harsh environment. The entire series is housed with the aluminium case and fully potted with heat-conducted glue. Adopting the full range 90-305Vac input, the entire series provides an output voltage line of 115V, 230V or 380V. In addition to the high efficiency up to 95.5%, that the whole series operates from -40°C to +70°C under air convection without fan. HEP-2300 has the complete protection functions and 10G anti-vibration capability ; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. HEP-2300 series seves as a high performance power supply solution for various industrial applications.
Technical data
- High Voltage output
- 95% high efficiency
- Fanless design, coolyng by free air convection
- Aluminium case and filling with heat-conducted glue
- Withstand 10G vibration test
- Output voltage and current programmable
- IP67
- Wiring type
Product specifications
| Output voltage (VDC) | 380 V |
| Manufacturer warranty | 6 years |
| Manufacturer | MEAN WELL |
| IP protection | IP67 |
| Control signals | Programmable output current, Programmable output voltage |
| Status signals | DC OK signal |
| Additional functions | 12 V DC auxiliary output |
| Application | ITE/AV |
| Voltage setting range | 190.0-400.0 VDC |
| Height | 88 mm |
| Width | 280 mm |
| Length | 375 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-305 V |
| Power | 2300 W |
| Efficiency | 95.00% |
