About the product

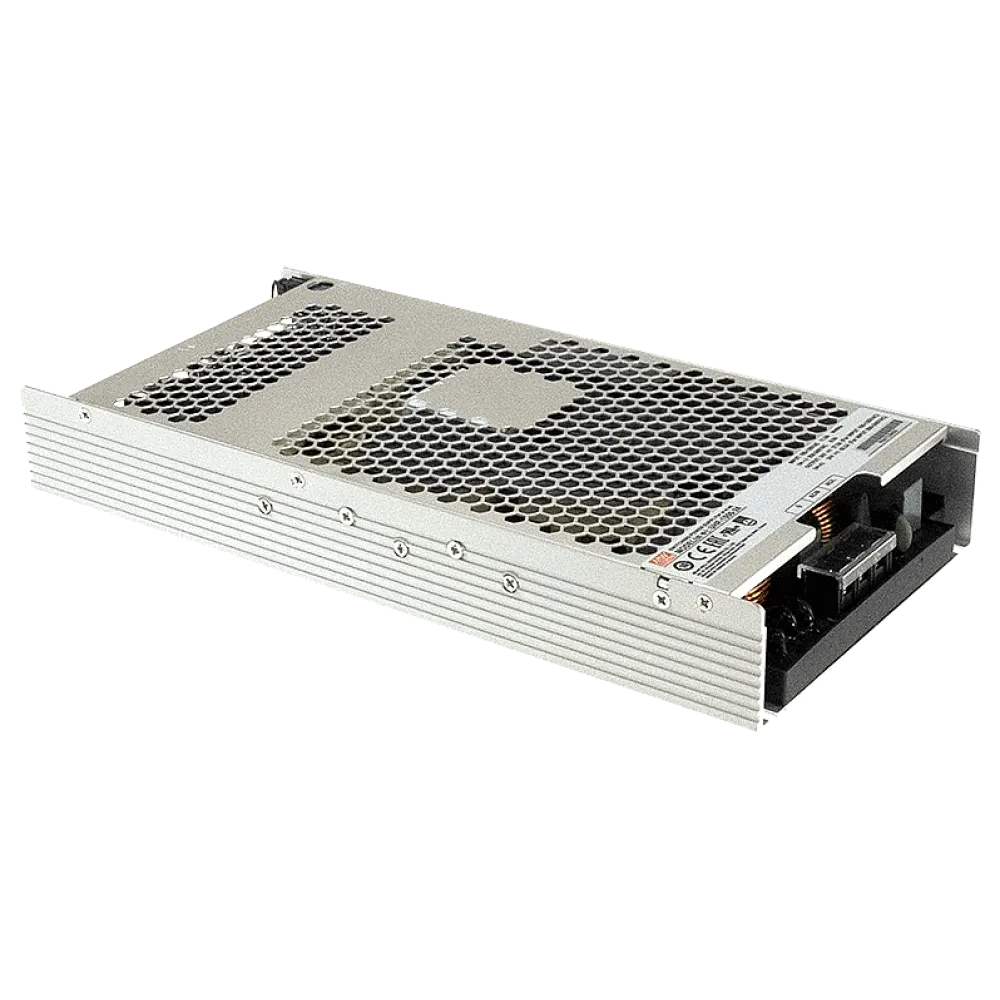

The UHP-1500-HV is a compact, fanless power supply in a housing with only 41mm height and high output voltage. Version without voltage and current programming.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Fanless design with 1500W conduction
- Slim and Low profile (41mm)
- Remote ON/OFF
- Working temperature range -30°C to +70°C
- Ultra high efficiency of 96%
- Operating altitude up to 5000 meter
- Dimension 290 x 140 x 41mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 380 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF |
| Application | ITE/AV |
| Voltage setting range | 350.0-420.0 VDC |
| Height | 41 mm |
| Width | 140 mm |
| Length | 290 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 1500 W |
| Efficiency | 95.00% |
