About the product

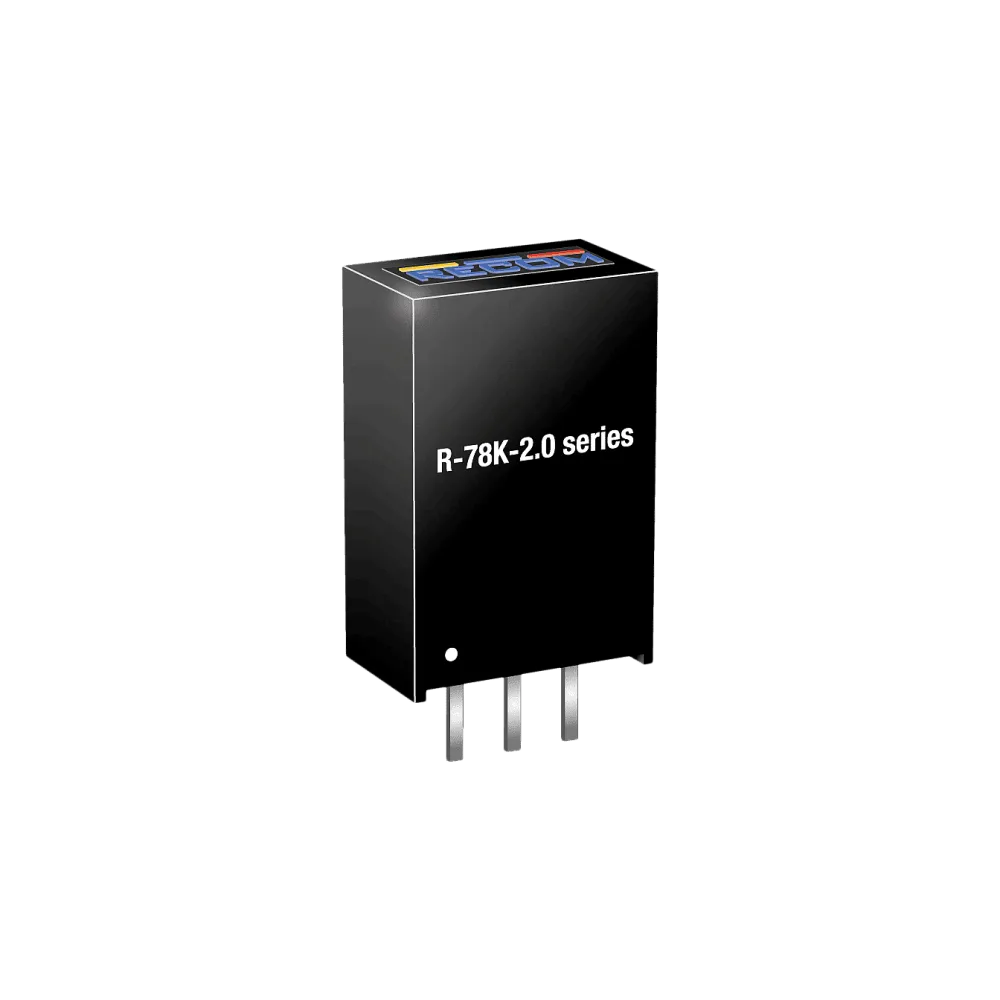

The R-78K-2.0 series is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantities. Due to the R-78K-2.0’s high efficiency of up to 96% no heat-sink is required, and operation from -40 to 90°C is possible without derating. The compact TO-220 compatible SIP3 package measures only 11.5 x 8.5 x 17.5, so it saves precious board space.
Technical data
- Efficiency up to 96%, no need for heatsinks
- Wide input voltage
- -40°C to +90°C ambient operation without derating
- Pin compatible with 78 series regulators
- Non isolated DC/DC converter
- Undervoltage and short circuit protection
Product specifications
| Output voltage (VDC) | 15 V |
| Temperature range | -40°C to 64°C |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 17.5 mm |
| Width | 8.5 mm |
| Length | 11.5 mm |
| Package / case | SIP3 |
| Regulation | Regulated |
| I/O isolation | Non isolated |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-36 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 2000 mA |
| Power | 30 W |
| Efficiency | 94.00% |
