About the product

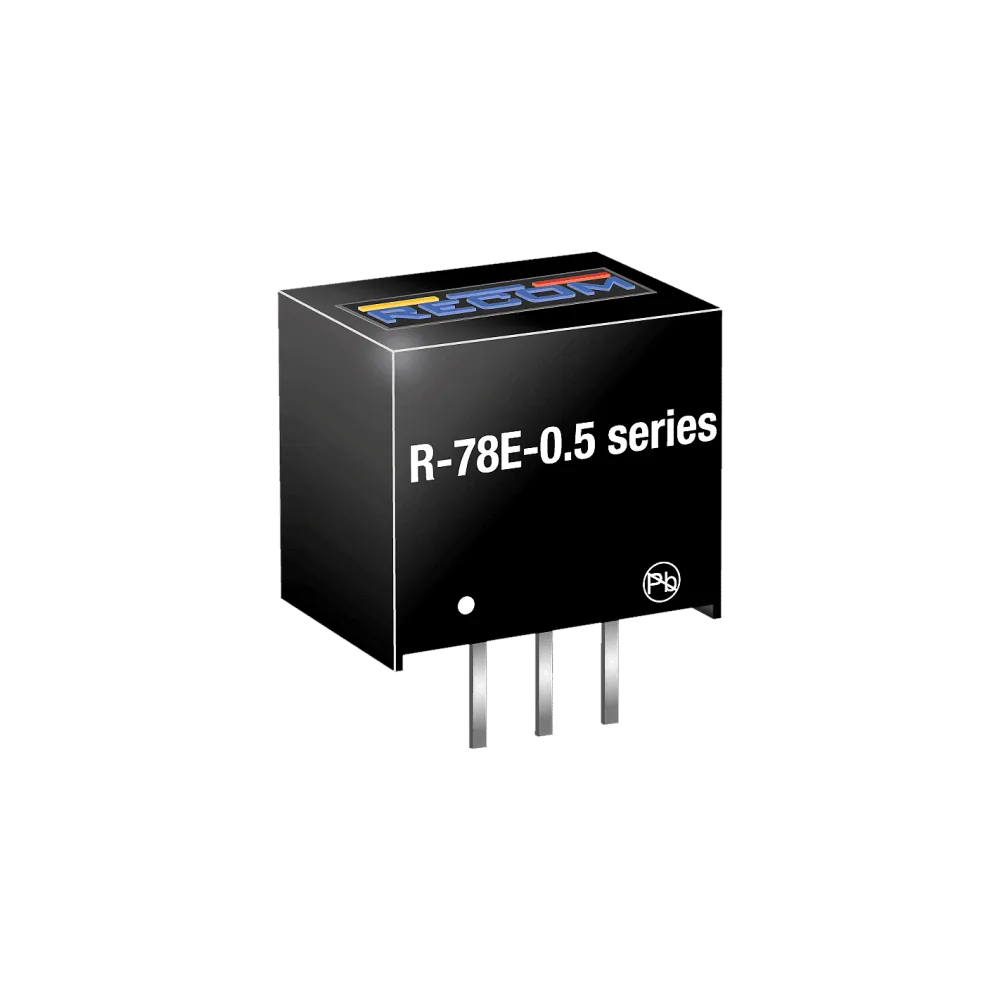

The R-78E series is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantities. Due to the R-78E’s high efficiency of up to 95% no heat-sink is required. The compact TO-220 compatible SIP3 package measures only 11.6 x 8.5 x 10.4mm, so it saves precious board space.
Technical data
- Low cost switching regulator
- High start-up current capability
- Efficiency up to 95%
- Short circuit protection
- Pin compatible with 78 series regulators
- Non isolated DC-DC converter
- IEC/EN60950-1+ AM2 certified
Product specifications
| Output voltage (VDC) | 15 V |
| Temperature range | -40°C to 85°C |
| Packaging unit | 42 mm |
| Manufacturer | Recom |
| Height | 10.4 mm |
| Width | 8.5 mm |
| Length | 11.6 mm |
| Package / case | SIP3 |
| Regulation | Regulated |
| I/O isolation | Non isolated |
| Input voltage range (VDC) | 18-28 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 500 mA |
| Power | 7.5 W |
| Efficiency | 95.00% |
