15W DC/DC-Converter, Input 20…32V, Output 15V/1000mA, SIP3

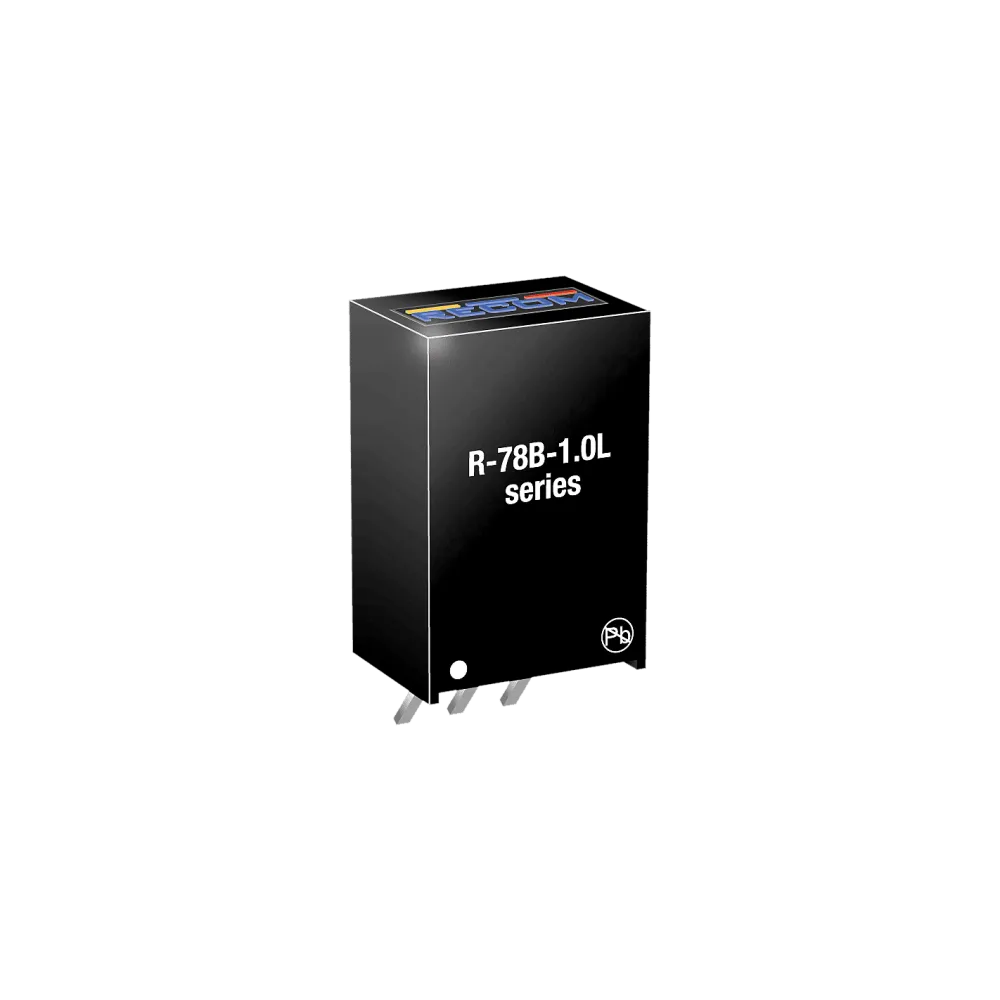

The R-78Bxx-1.0 series high efficiency switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 97% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs. The L-Version with 90° pins allows direct replacement for laid-flat regulators where component height is at a premium. Low ripple and noise figures and a short circuit input current of typically only 10mA round off the specifications of this versatile converter series.

Technical data

• Efficiency up to 97%, no heatsinks required
• Pin-out compatible with LM78XX linears
• Low profile (L/W/H=11.5 x 8.5 x 17.5mm)
• Wide input range
• Short circuit protection, thermal shutdown
• Low ripple and noise
• "L" version with 90° pins
