About the product

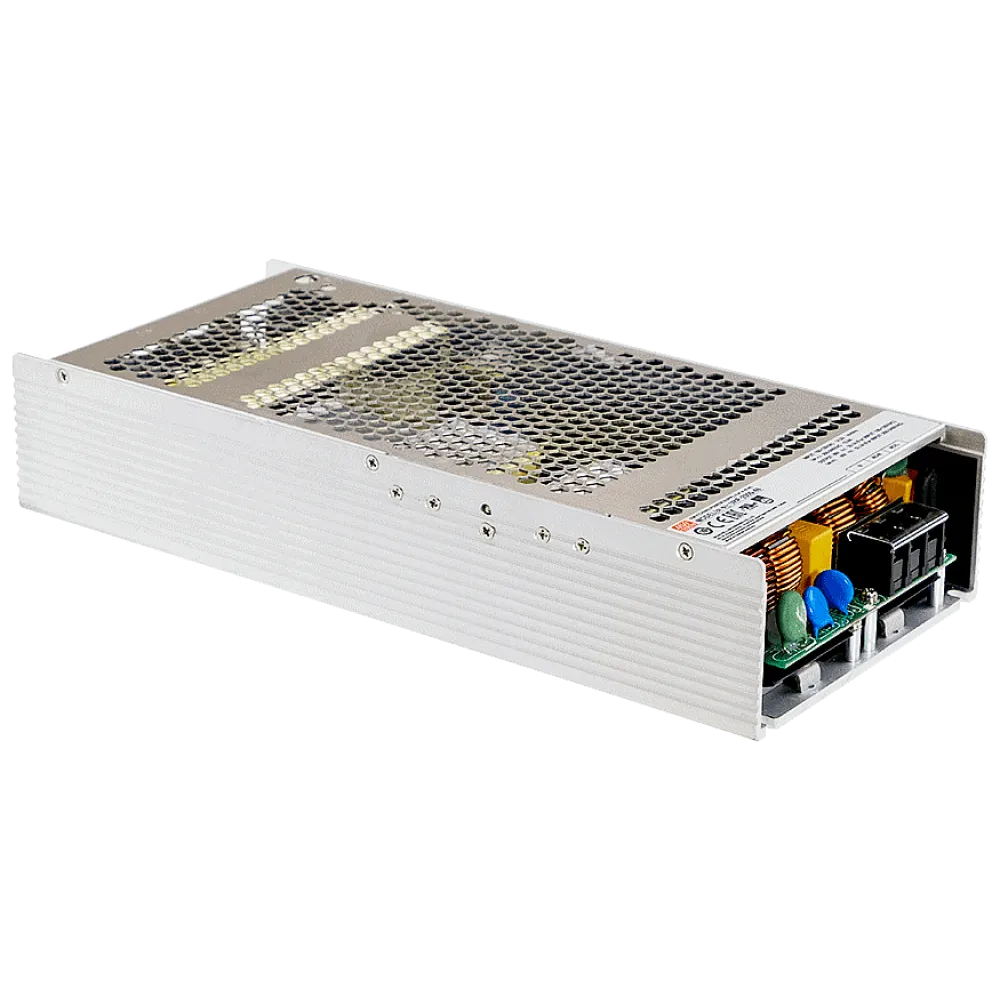

UHP-2500 series is a single-output slim type power supply. In addition to the high efficiency of up to 96% the whole series operates from -30°C to +70°C under conduction cooling without fan.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Fanless design with 2000W conduction
- DC OK relay contact
- Remote ON/OFF
- Working temperature range -30°C to +70°C
- Ultra high efficiency of 96%
- CANbus, PMbus optional by request
- Operating altitude up to 5000 meter
- Dimension 310 x 140 x 60mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF |
| Status signals | DC OK signal |
| Additional functions | 12 V DC auxiliary output |
| Application | Household, ITE/AV |
| Voltage setting range | 12.0-28.8 VDC |
| Height | 60 mm |
| Width | 140 mm |
| Length | 310 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 2500 W |
| Efficiency | 95.00% |
Data sheets
