About the product

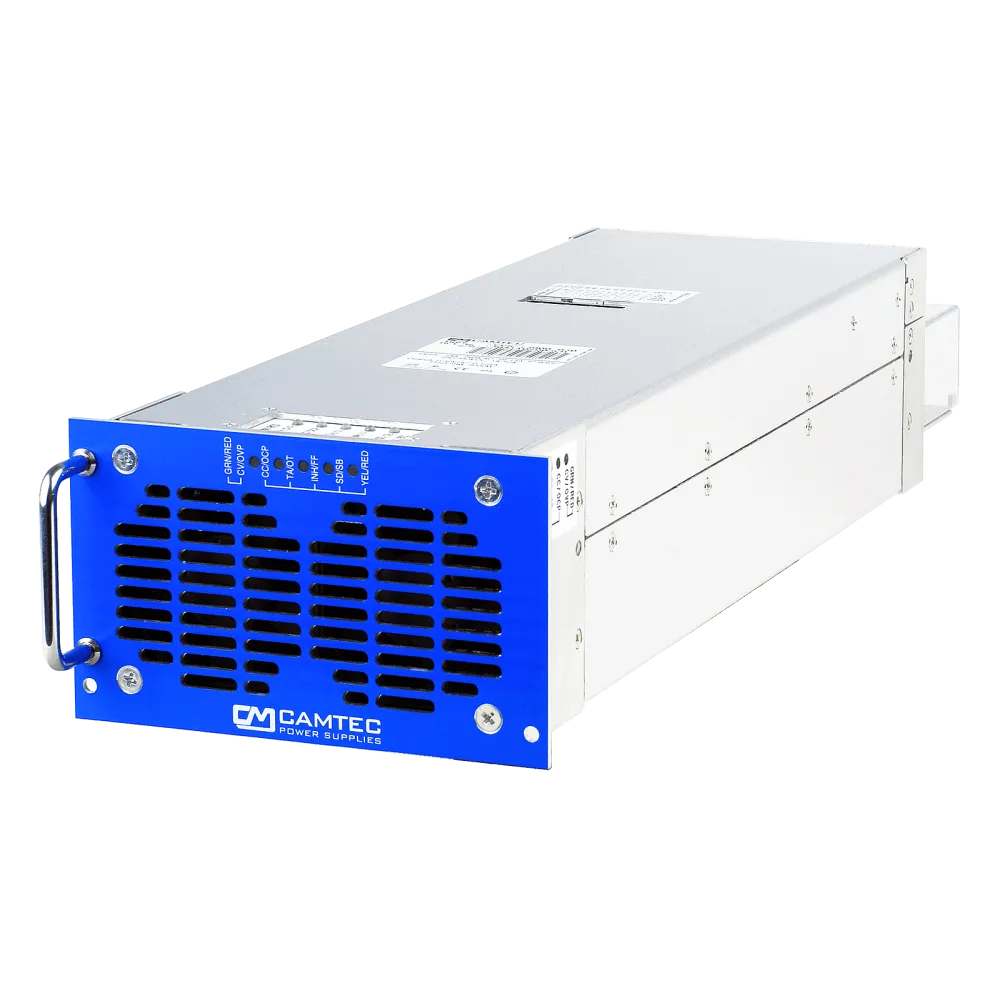

The Camtec CPS-EX3000 models are high-precision power supplies "Made in Germany". The mechanical design of the CPS-EX device series is unique. It is the first power supply line in the world market, which can be flexibly adapted to any installation situation.
Technical data
- Interface real time C/V programming
- Interface real time & value C/V monitoring
- Reference voltage for autonomous programming
- CSB current share bus
- Inhibit/interlock for safety shutdown
- Remote shutdown
- Sense mode
- Integrated O-ring diode
- Power Good Relay DC-OK
- Precise dynamics on load change
- N+1 scalable up to 100 KW
- 92-94% efficiency
- PFC power factor 0.99
- Variable controlled Papst fans
- Long service life under demanding operation
- Quick down programming with power sink option
- EMC complies with CE standard Class B
- 19 2U and 3 subframes available
- Dimension: 84 x 126.4 x 444mm
- Manufacturer: Camtec
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Manufacturer | Camtec |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF, Remote sense |
| Status signals | DC OK relay contact, current monitoring, voltage monitoring, temperature alarm |
| Additional functions | 12V DC auxiliary output, Parallel connectable |
| Application | ITE/AV |
| Voltage setting range | 24.0-30.0 VDC |
| Height | 84 mm |
| Width | 126.4 mm |
| Length | 444 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 184-264 V |
| Power | 3000 W |
| Efficiency | 93.00% |
