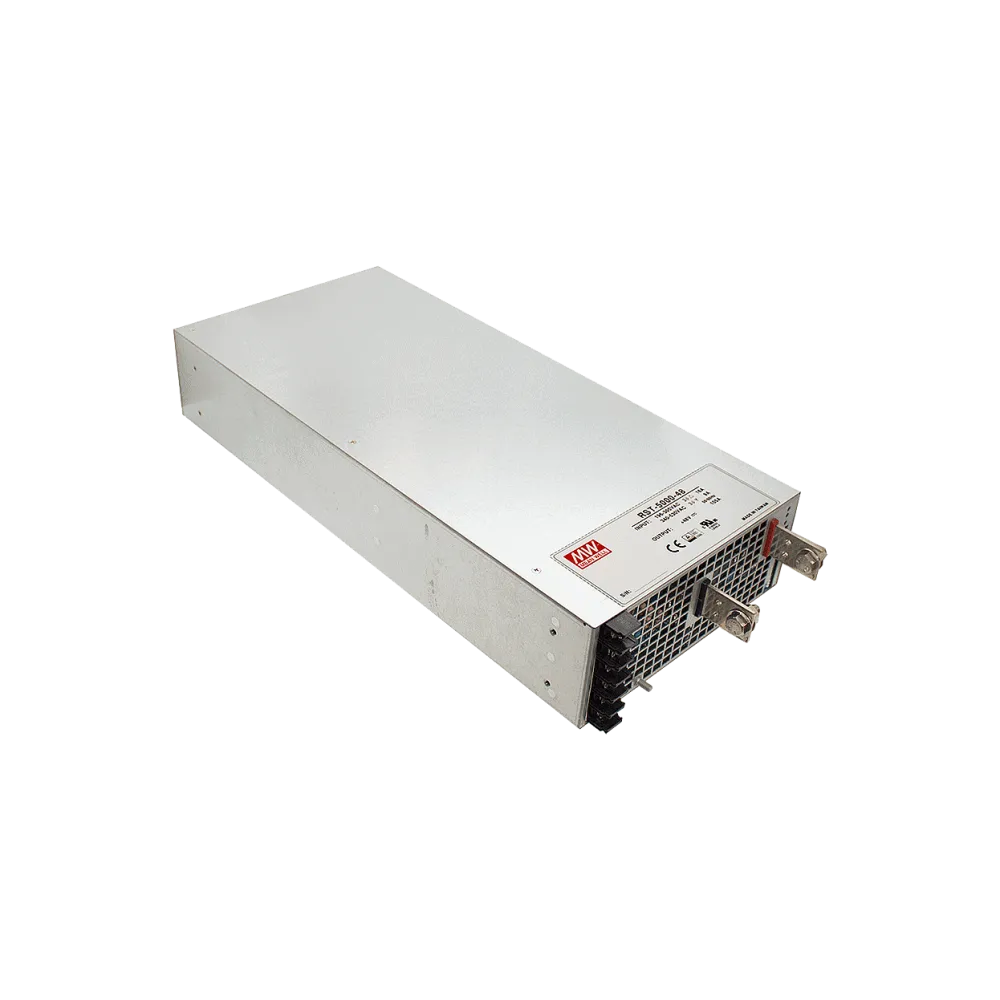

4800W 3-Phase Power Supply 24V/200A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

Three phase input voltage range 196 to 305Vac (3-wires / delta connection) or 340 to 530Vac (4-wires / star (Y) connection)
Built-in active PFC function
Built-in remote sense and remote On/Off control
Built-in 12V/0.1A auxiliary power
Output voltage can be trimmed between 20 – 120% by external control signal
Output current can be trimmed between 20 – 100% by external control signal
Current sharing with up to 4 units up to 20kW
Alarm signal output (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
forced air cooling by built-in DC fan with fan speed control
Working temperature range -30°C to +70°C
Dimension 460 x 211 x 83.5mm (L x W x H)
5 Years Warranty
Manufacturer MEAN WELL

Output voltage (VDC)	24 V
Manufacturer warranty	5 years
Manufacturer	MEAN WELL
Control signals	Programmable output current, Programmable output voltage, Remote ON/OFF, Remote sense
Status signals	AC OK signal, DC OK signal, temperature alarm
Additional functions	12V DC auxiliary output, Parallel connectable
Application	ITE/AV
Voltage setting range	4.8-28.8 VDC
Height	83.5 mm
Width	211 mm
Length	460 mm
Input voltage range (VAC)	340-530 V
Power	4800 W
Efficiency	88.00%
