About the product

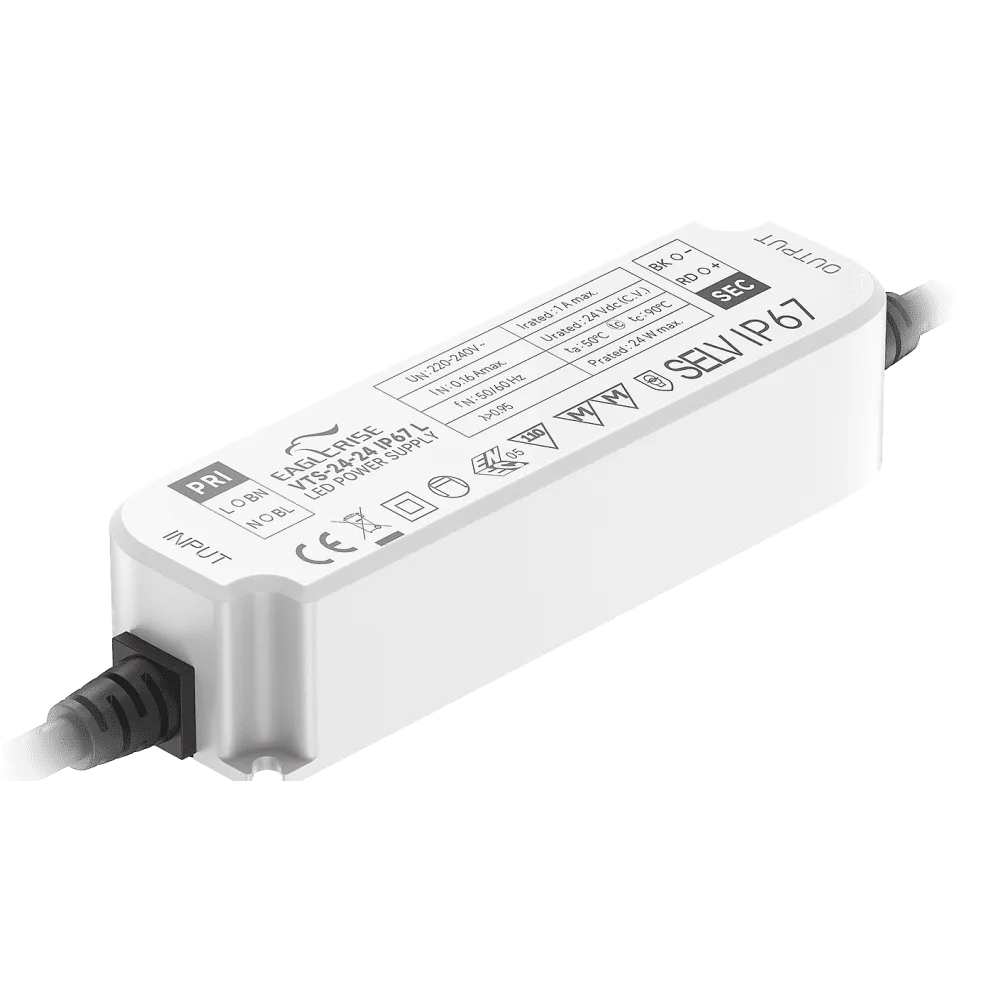

VTS-24 is a LED converter in a plastic housing with IP67 protection class for indoor and outdoor applications without direct sunlight.
Technical data
- IP67 design, protected against brief submersion
- Protection class II driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +75°C
- Dimensions 118 x 35 x 26mm (L x W x H)
- 3 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 3 years |
| Product series | VTS |
| Input voltage range (VAC) | 220-240 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 26 mm |
| Width | 35 mm |
| Length | 118 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 1 mA |
| Power | 24 W |
| Efficiency | 86.00% |
Data sheets
