About the product

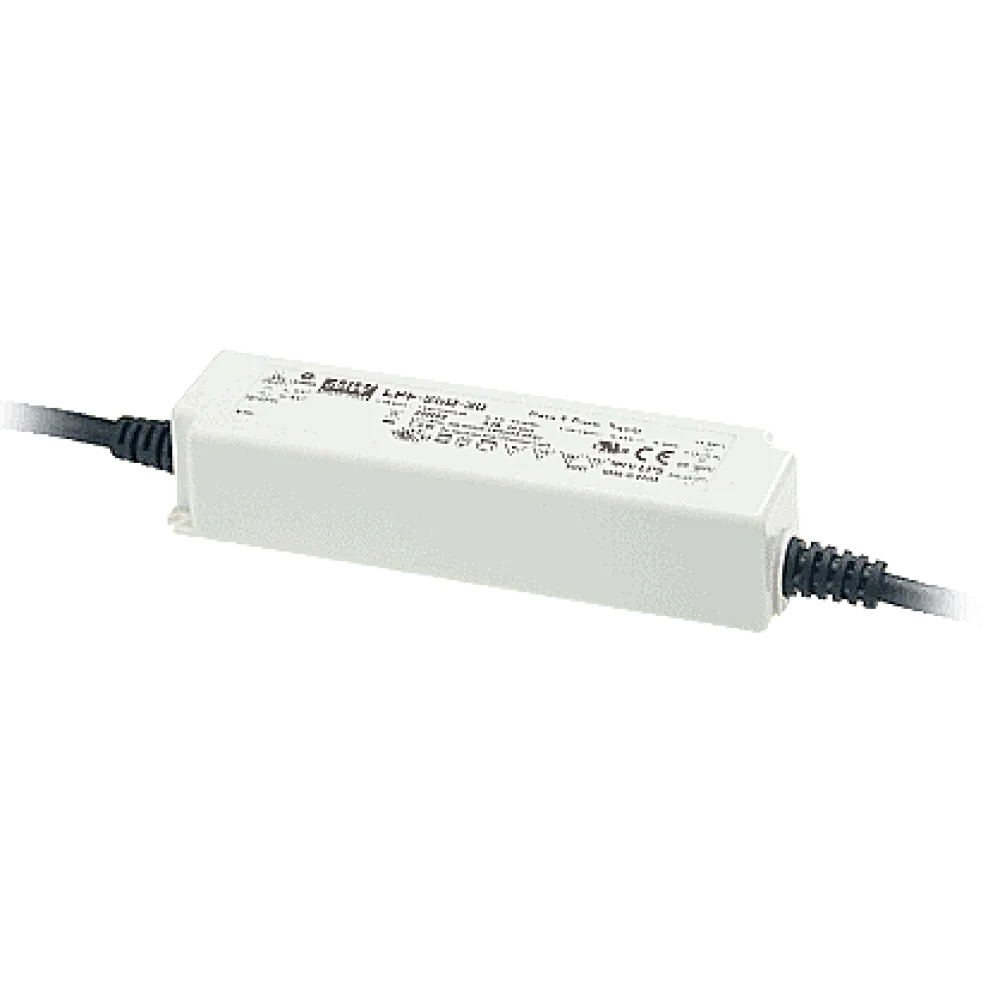

25W LED Driver CV+CC, 24V/1.05A, 3in1 Dimming
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Constant current level can be adjusted through 1-10Vdc / PWM signal or Resistance
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 148 x 40 x 32mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | LPF |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 40 mm |
| Length | 148 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Control | Resistor, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 1.05 A |
| Power | 25 W |
| Manufacturer | MEAN WELL |
