About the product

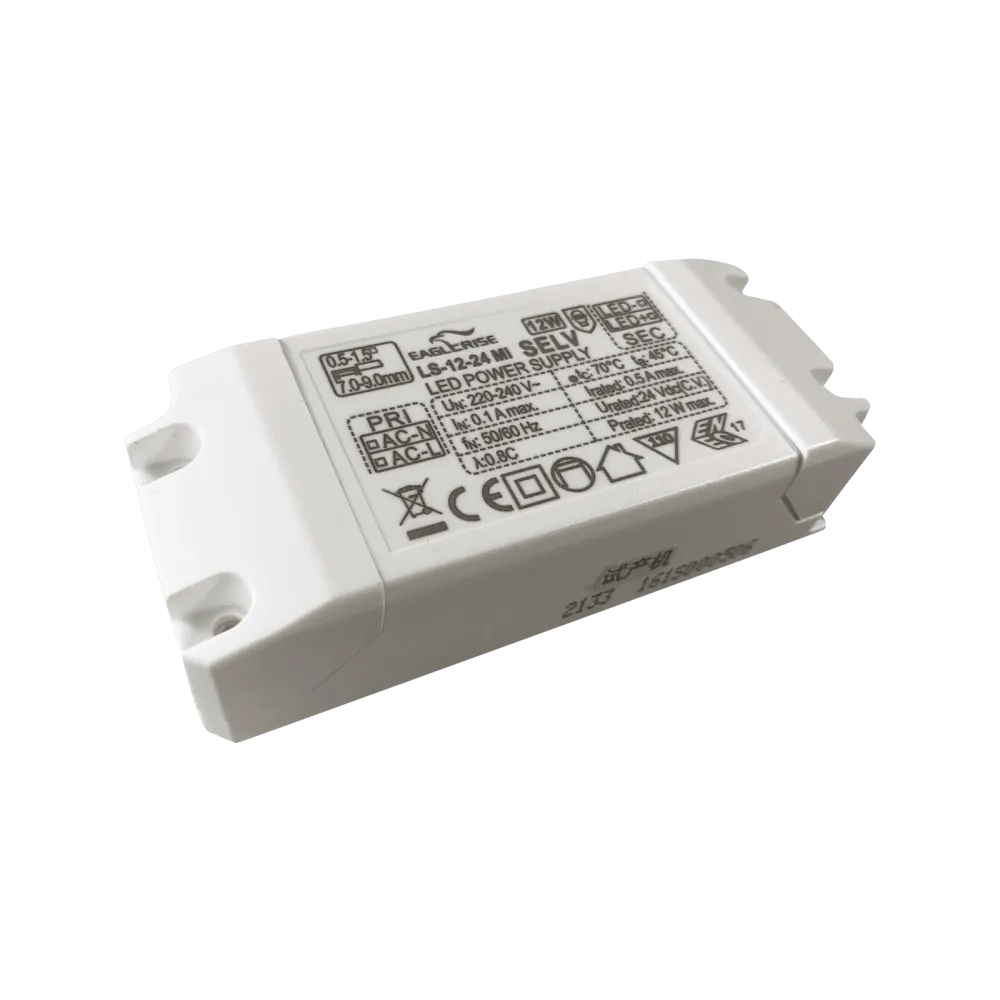

The 12W LED driver LS-12-24 MI with constant voltage output is suitable for operating 24Vdc LED lighting applications.
Technical data
- Lifetime >50’000 hours
- Operating temperature range from -20°C to +45°C
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | LS |
| Input voltage range (VAC) | 200-240 V |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 24.5 mm |
| Width | 42 mm |
| Length | 100 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 0.5 A |
| Power | 12 W |
| Manufacturer | Eaglerise |
Data sheets
