About the product

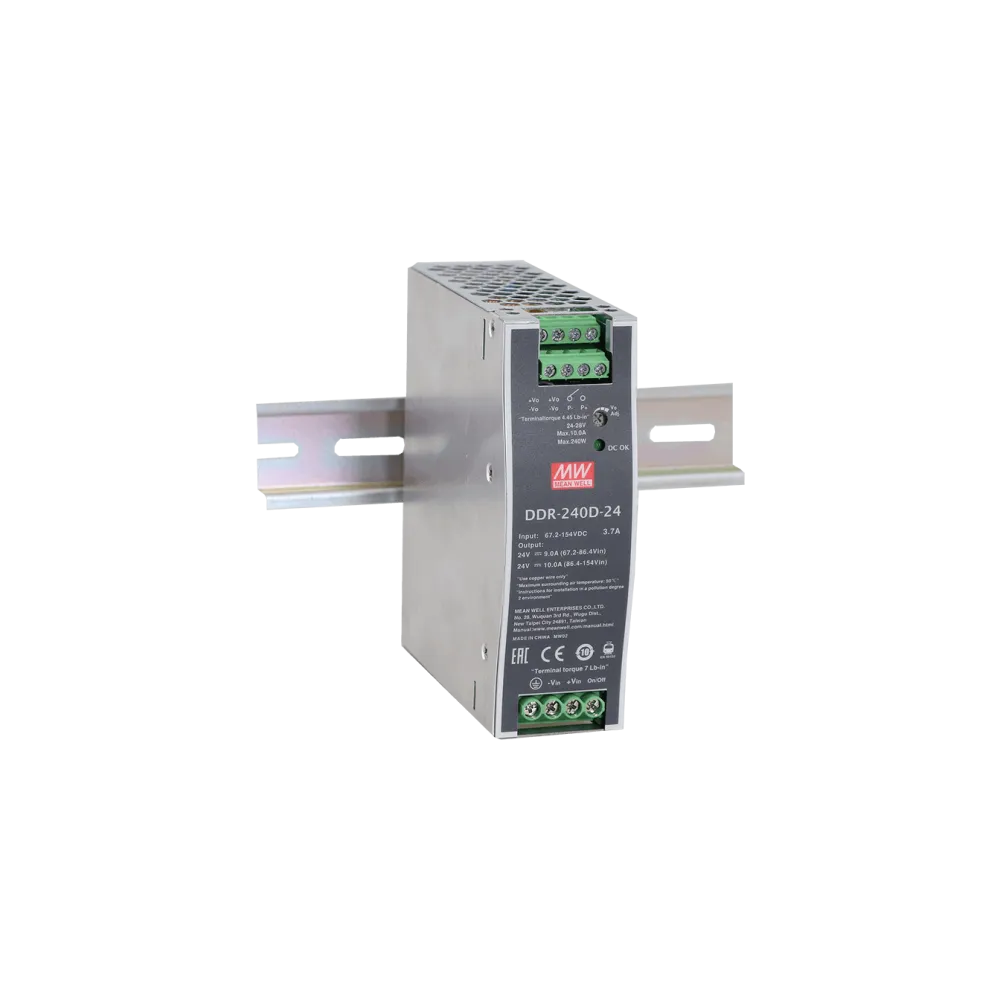

240 DC/DC-Converter, Input 16.8…33.6V, Output 24V/10A
Technical data
- Compliance to EN50155 and EN45545-2
- Width only 40mm
- 2:1 wide input range
- -40°.+70°C wide working temperature
- 150% peak load
- Current sharing up to 960W (3+1)
- DC Output adjustable
- Cooling by free air convection
- For DIN Rail TS-35/7.5 or 15
- Protections: Short circuit/Overload/Over voltage/Over temperature/Input reverse polarity/Input under voltage
- 4KVdc I/O Reinforced Isolation
- DC OK Relay contact
- Remote ON/OFF control
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 24 V |
| Depth | 113.5 mm |
| Manufacturer | MEAN WELL |
| Application | ITE/AV, Railway |
| Height | 125.2 mm |
| Width | 40 mm |
| Additional functions | Remote ON/OFF |
| I/O isolation | 4000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 16.8-33.6 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 10000 mA |
| Power | 240 W |
| Manufacturer warranty | 3 years |
