About the product

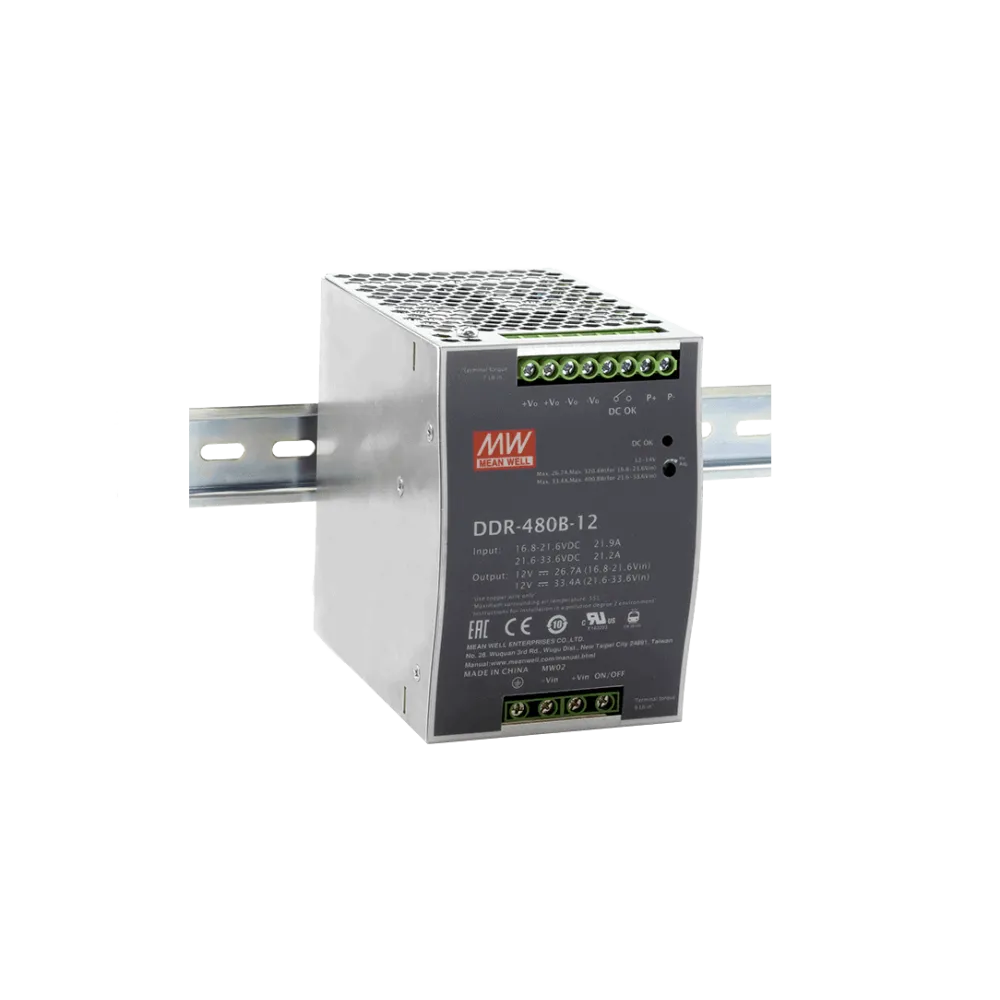

DDR-480 series is an DIN Rail type reliable DC-DC converter for industrial and railway control. The product design includes outstanding features such as 2:1 wide input range, 4000Vdc I/O isolation, -40~80°C wide operating temperature range, 150% peak load capability, current sharing up to 1920W (3+1), and 5G anti-vibration capability.
Technical data
- 2:1 wide input range
- 4000Vdc I/O Isolation
- Cooling by free air convection
- Current sharing up to 1920W (3+1)
- Built-in Constant Current Limiting
- Compliance to EN50155 and EN45545-2 railway standard
- 150% peak power for 5 seconds
- Remote ON/OFF and DC OK relays contact
- Dimension 85.5 x 125.2 x 128.5mm (L x B x H)
- 3 years warranty
Product specifications
| Output voltage (VDC) | 48 V |
| Depth | 129.2 mm |
| Manufacturer | MEAN WELL |
| Application | ITE/AV, Railway |
| Height | 125.2 mm |
| Width | 85.5 mm |
| Additional functions | Current Sharing, Peak Power, Remote ON/OFF |
| I/O isolation | 4000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 33.6-67.2 V |
| Nominal input voltage (VDC) | 36-48 V |
| Output current | 10000 mA |
| Power | 480 W |
| Manufacturer warranty | 3 years |
