About the product

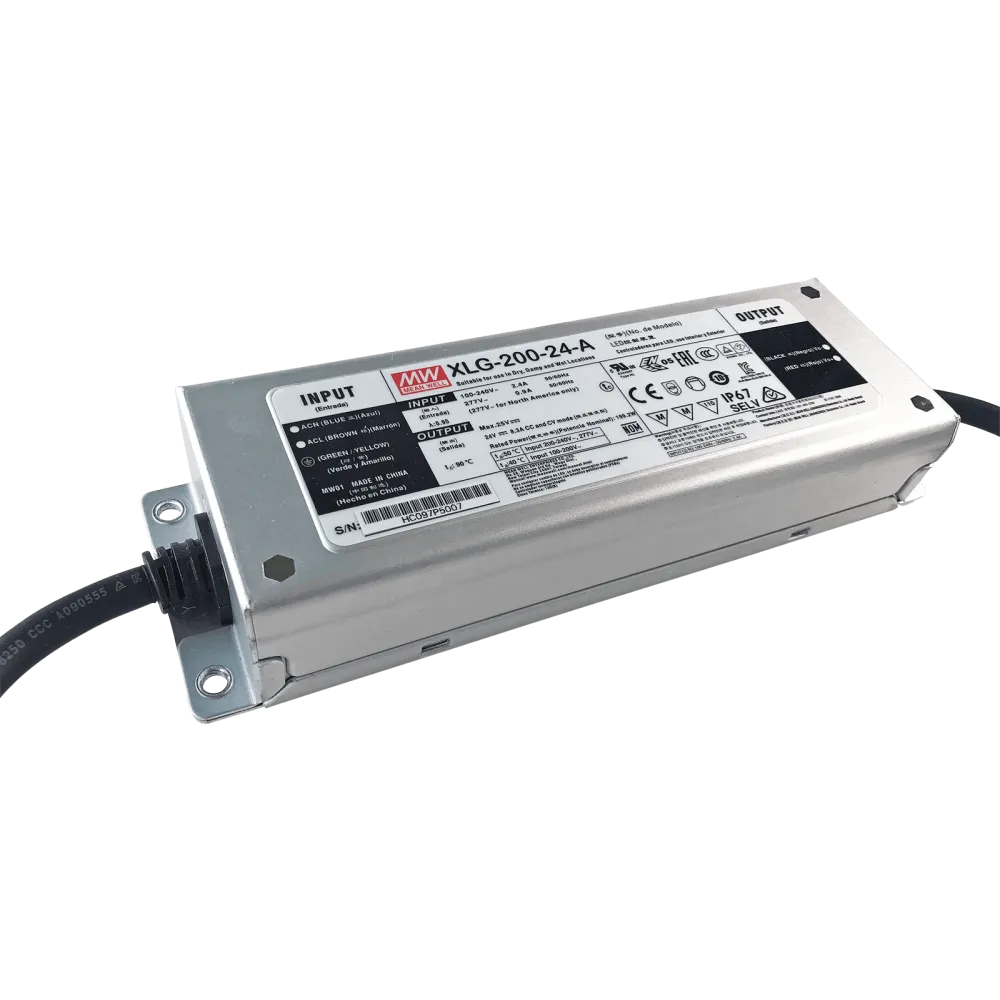

XLG-200-24-A series is a 200W LED AC/DC Driver featuring the constant voltage mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
Technical data
- Universal AC Input 90 to 305Vac
- Current adjustable via built-in potentiometer
- Dimension 199 x 63 x 35.5mm (L x W x H)
- IP67 metal housing
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | XLG |
| Input voltage range (VAC) | 110-277 V |
| Additional functions | Current setting on unit |
| Connection | Cable |
| IP protection | IP67 |
| Height | 35.5 mm |
| Width | 63 mm |
| Length | 199 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 8.3 A |
| Power | 200 W |
| Manufacturer | MEAN WELL |
