185W LED Driver CV+CC 24V/7.8A, 3in1 Dimming + Vo/Io adjustable

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

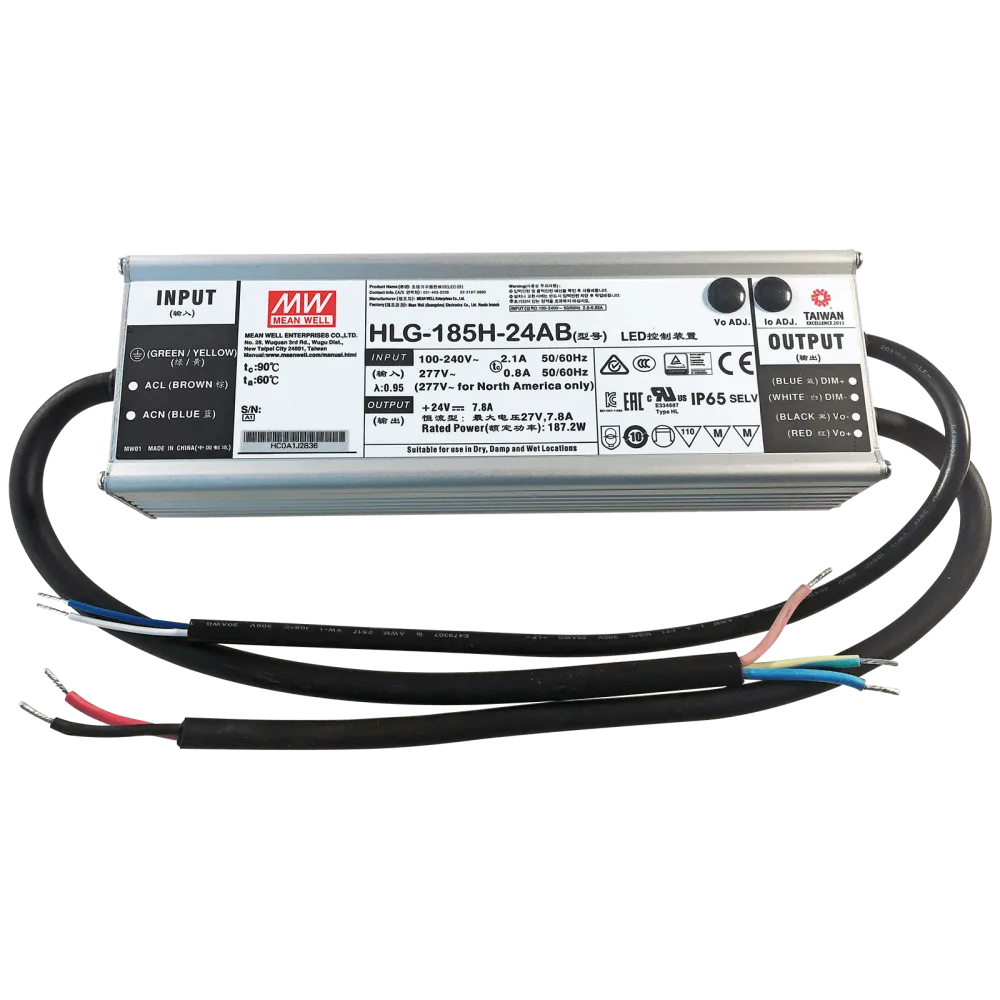

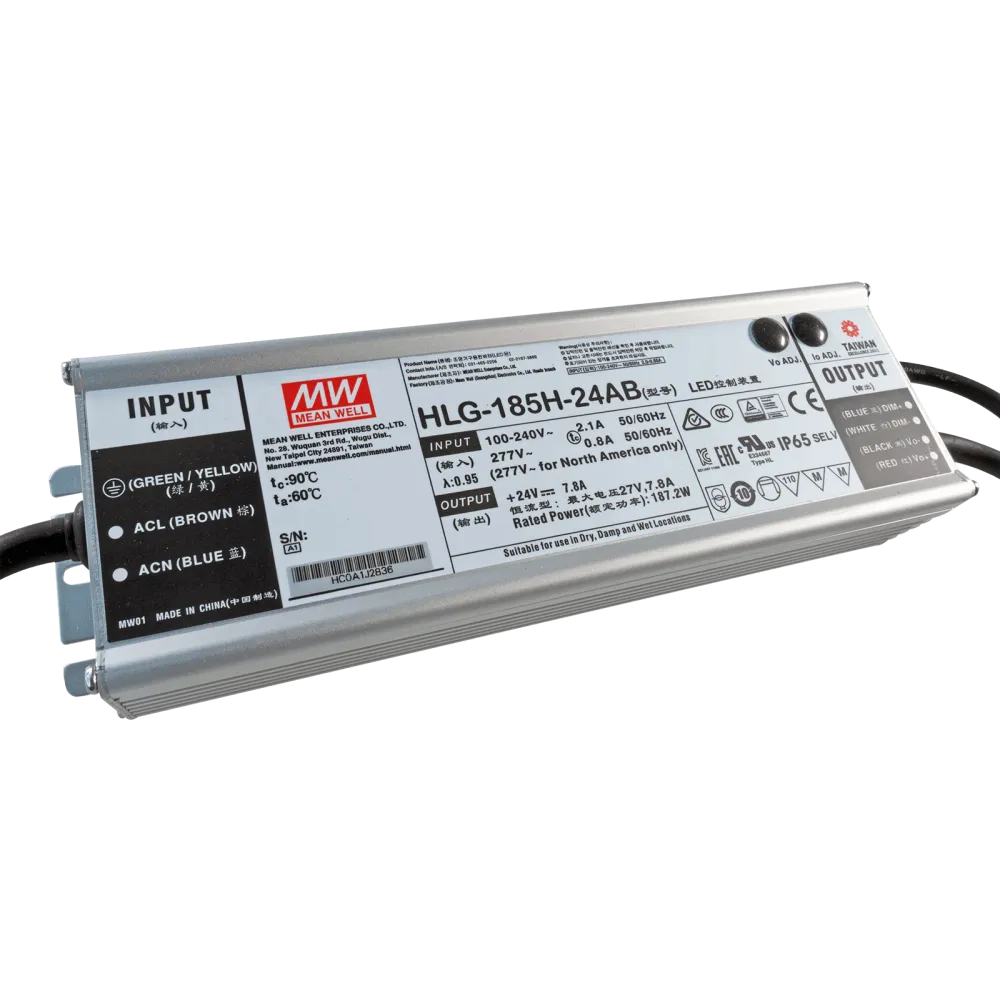

HLG-185AB series is a combination of "A" and "B" type. Current and voltage is adjustable through built-in potentiometer and for external dimming the current level can be adjusted by built-in 3in1 dimming function

Technical data

Universal AC input 90 to 305Vac
CC/CV circuit for constant voltage and constant current applications
Output voltage and constant current level can be adjusted through internal potentiometer
Constant current level can be adjusted through 1-10Vdc / PWM signal or Resistance
IP65 for indoor and outdoor installations
High reliable driver with long lifetime
Fully encapsulated metal housing
Suitable for dry, damp, and wet location
Type HL LED driver for use in class I, division 2 hazardous location luminaires
Meet 4kV surge immunity level (IEC61000-4-5)
Dimension 228 x 68 x 38.8mm (L x W x H)
7 years warranty
Manufacturer: MEAN WELL

Product specifications

Output voltage (VDC)	24 V
Manufacturer warranty	7 years
Product series	HLG
Input voltage range (VAC)	100-277 V
Additional functions	Current/voltage setting on unit
Connection	Cable
IP protection	IP65
Height	38.8 mm
Width	68 mm
Length	228 mm
Application	Single color
Dimming method	Current regulation
Control	Resistor, 1-10V, PWM control signal
Channels	1
Output current	7.8 A
Power	185 W
Manufacturer	MEAN WELL
