About the product

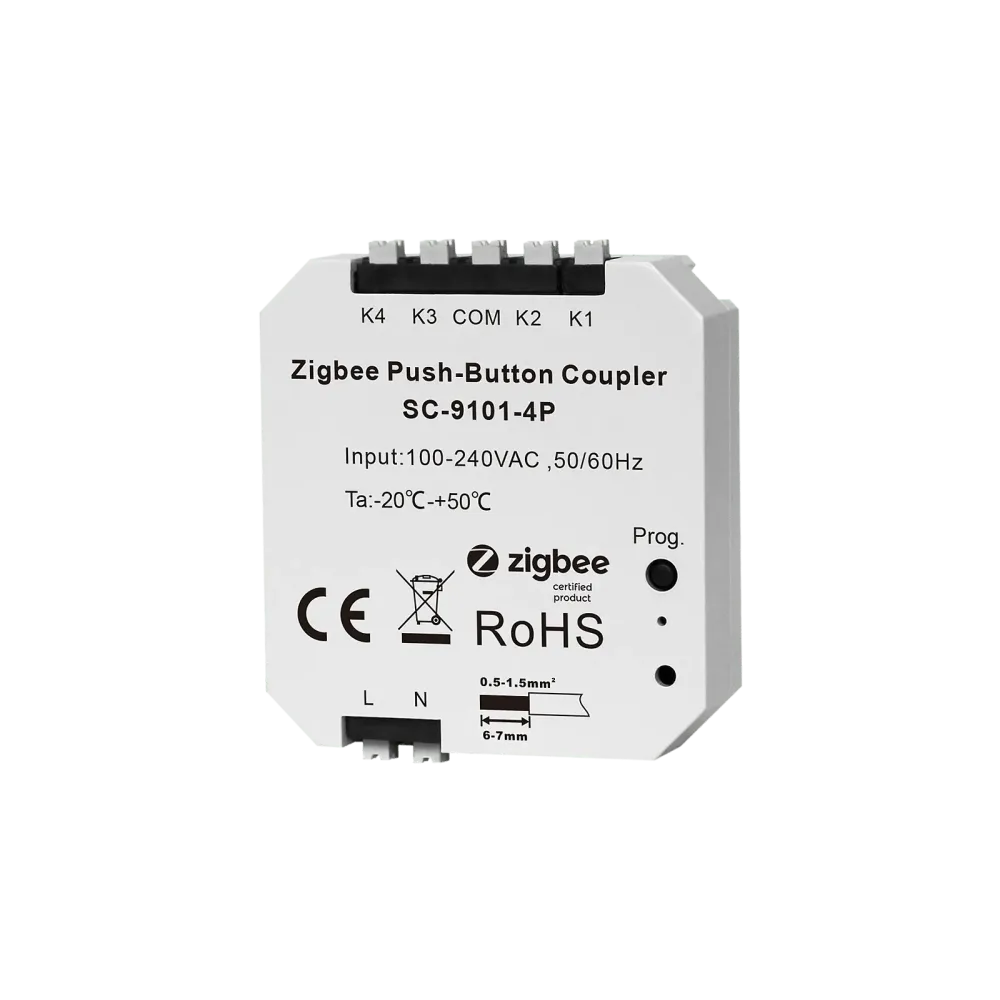

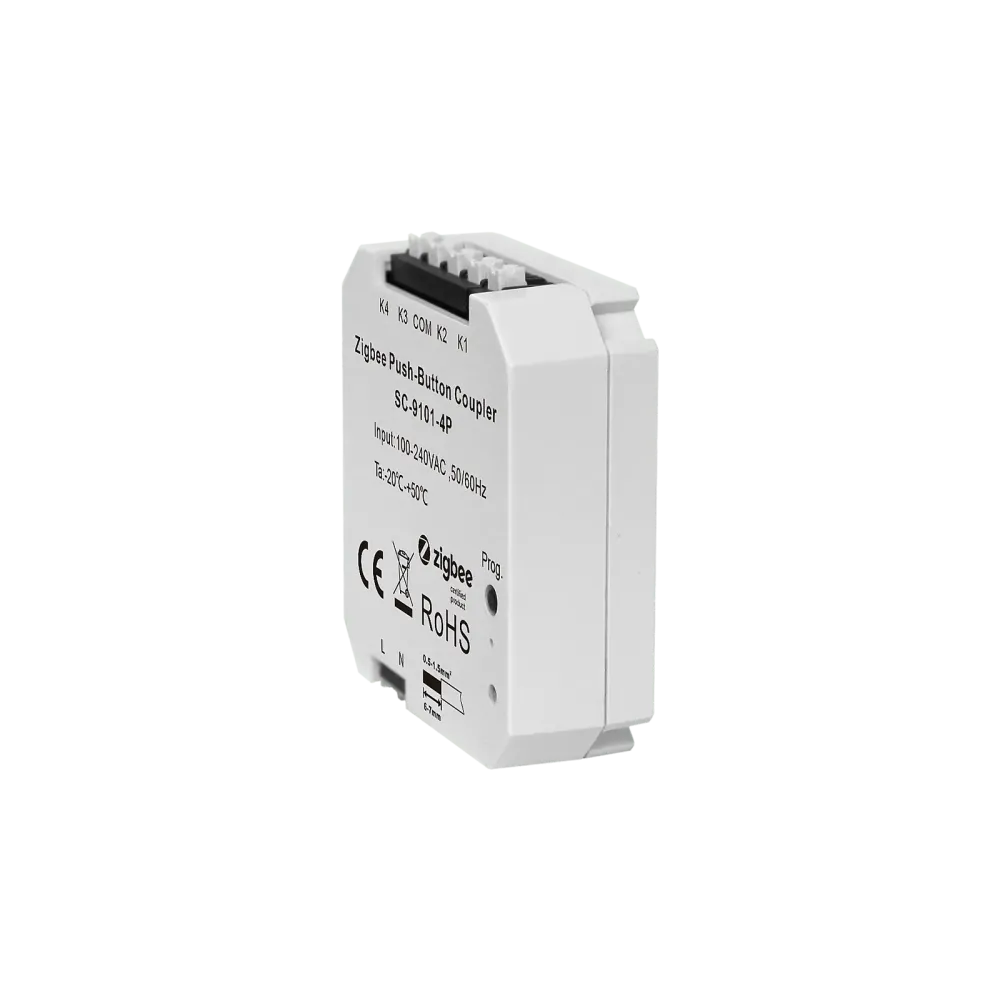

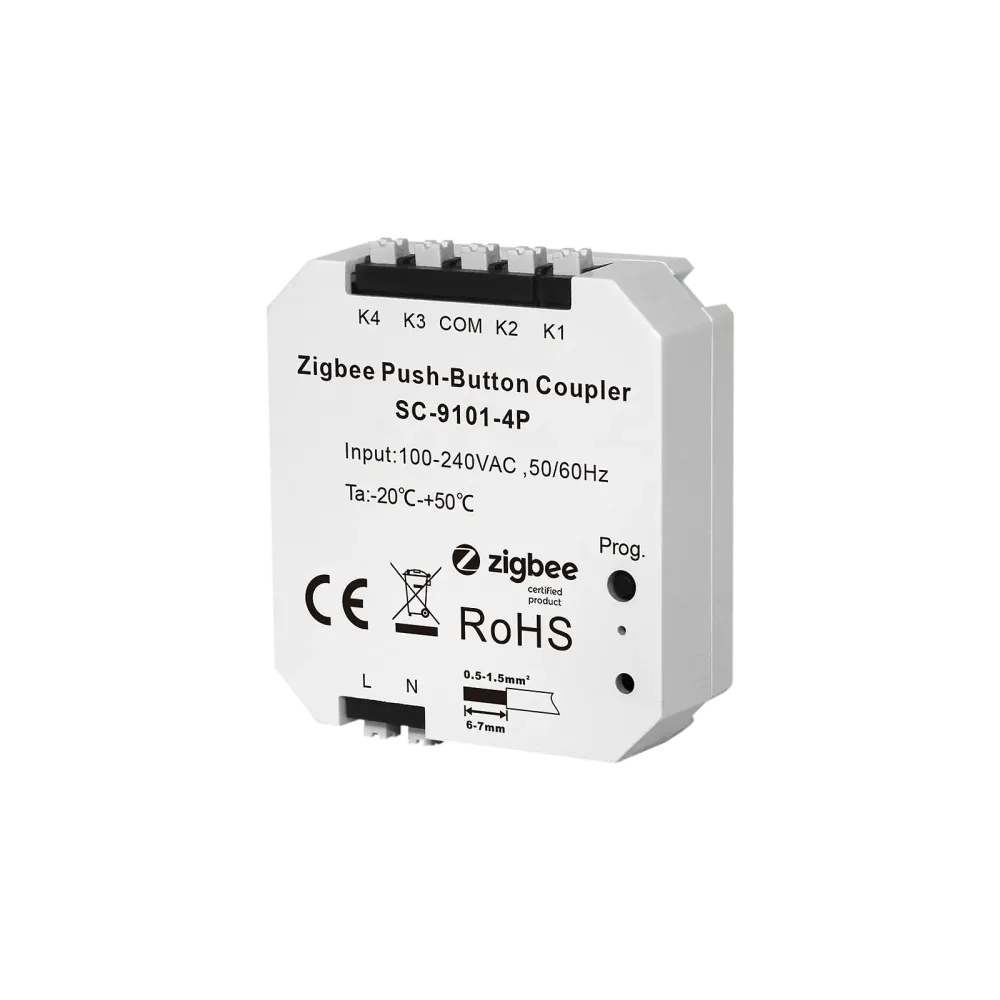

The DIM Zigbee push-button coupler is a 4-channel push-button interface for simple wall/flush-mounted box installation. You can continue to use existing switches, regardless of the manufacturer. It is a wireless transmitter that communicates with Zigbee lighting devices that support the Green Power function. The coupler uses an AC100-240V power input to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible devices.
. It allows you to learn and control dimmable Zigbee lighting devices that support the Green Power function and memorize 2 scenes for the paired lighting devices with 4 push buttons.
Product specifications
| Manufacturer | Sunricher |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Product series | SC-9101 |
| Length | 49.81 mm |
| Height | 15.15 mm |
| Channels | 4 |
| Width | 43 mm |
| Control | ZigBee 3.0 |
| Connection | Spring clamp |
