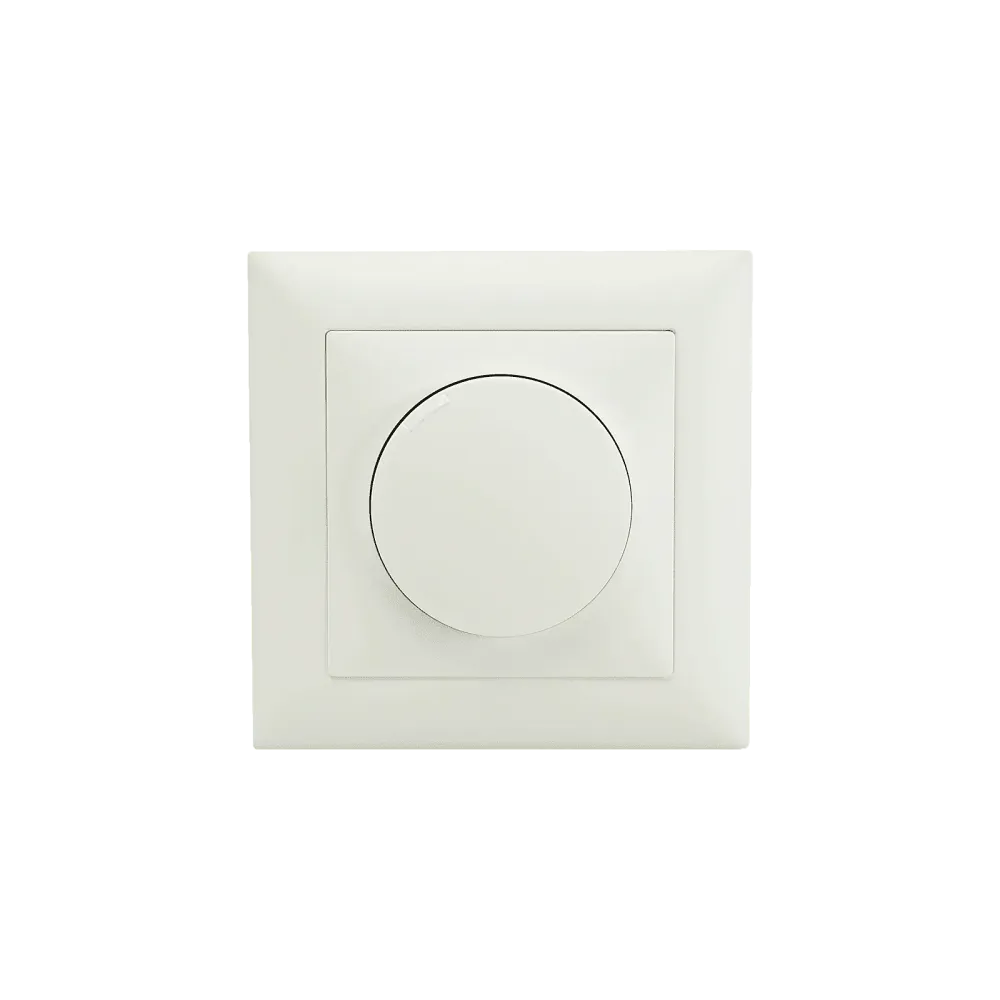

3in1 ZigBee 3.0, phase control, AC-Push rotary switch, wall mounting, EdizioDue compatible

3in1 ZigBee 3.0, phase control, AC push rotary switch for wall mounting, suitable for all ZigBee 3.0 drivers / dimmers.

EdizioDue compatible and can be installed in the standard Feller socket.

Prepared for single can.

Incl. adapter for multiple combination!

Control

• ZigBee 3.0, phase control, AC push

Application

• Single Color

Technical data

• 3in1 ZigBee 3.0, phase control, AC-Push rotary switch for wall mounting
• Dimension: 88 x 88 x 45mm
• Color: White
• ZigBee button smart dimmer based on the latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage, can work with and without neutral wiring, self-adapting
• Ediziodue compatible and can be installed in standard wall boxes from Feller
• Supports resistive loads, capacitive loads or inductive loads
• Supports minimum and start brightness setting
• 1-channel output, up to 600W
• Enables control of ON/OFF and light intensity of the connected light source
• ZigBee end device that supports Touchlink commissioning
• Can be controlled via Zigbee gateway, Zigbee remote and local rotary knob
• Can be paired directly with a compatible ZigBee remote control via Touchlink without a coordinator
• Supports the self-creation of a Zigbee network without a coordinator and the addition of other devices to the network
• Supports find-and-bind mode for binding a ZigBee remote control
• Supports Zigbee Green Power and can handle a maximum of 20 Zigbee Green Power remote controls
• Compatible with universal ZigBee gateway products
• With push-button input, can be controlled by universal AC push-buttons
• Can be operated under two-wire connection without neutral conductor or three-wire connection with neutral conductor
• Advanced microprocessor control
• Implemented algorithm for intelligent light source detection
• Active power and energy measurement function
• Soft start function
• Innovative functions for setting the minimum dimming value and the starting brightness
• IP20 Degree of protection
• Warranty: 5 years
