Beam
Medium 24°
Oval 40° x 20°
Super Wide 54°
Wide Flood 35°
Light color/CCT
RGBW
About the product
The Matrix RGBW system has been completely revised, significantly increasing its efficiency and lumen output of colors. A new DMX control system based on a microchip algorithm has been inserted inside the lamp, capable of obtaining a constant and full power wattage for each single color or in the combination of the two color channels.
Product specifications

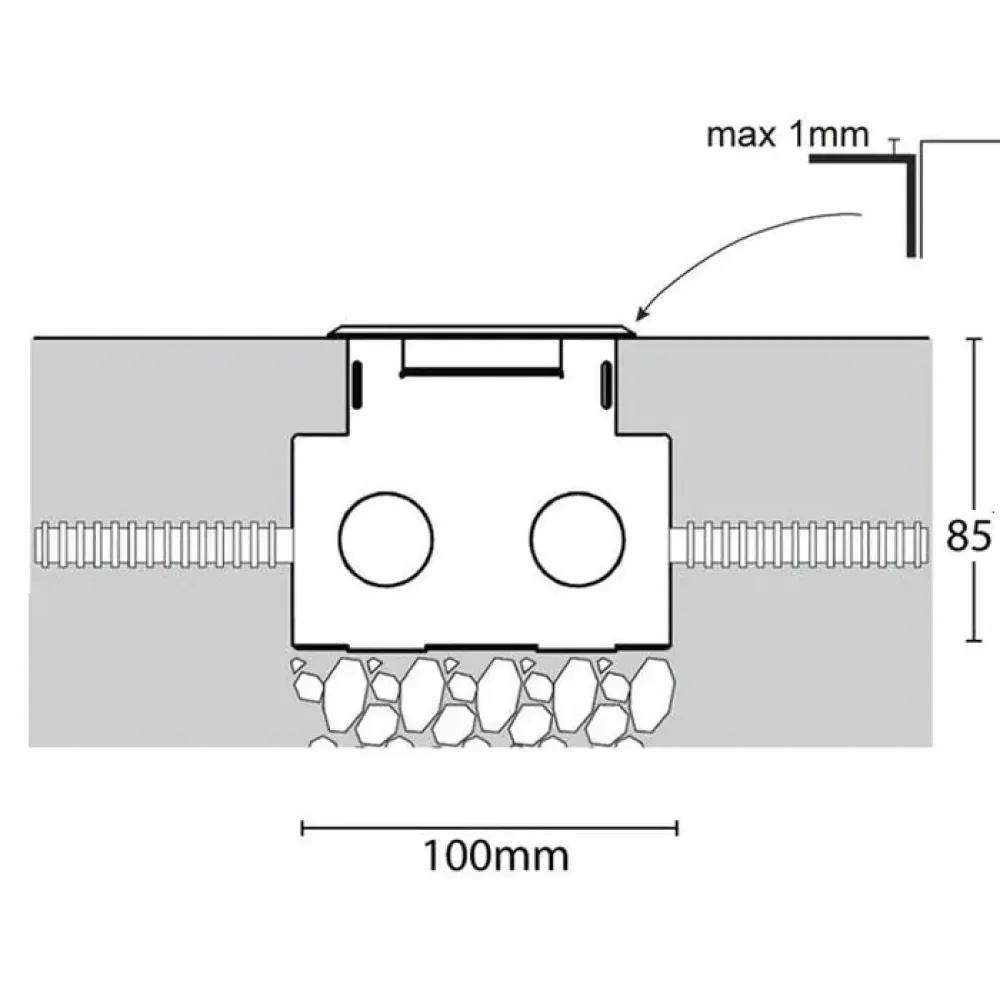

| Assembly | inground recessed |
| Protection | IP67/IK09 |
| Body | extruded aluminium |
| Box | stainless steel sheet AISI430F |
| Frame | stainless steel AISI316 |
| Screen | tempered extra-clear glass 8mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |

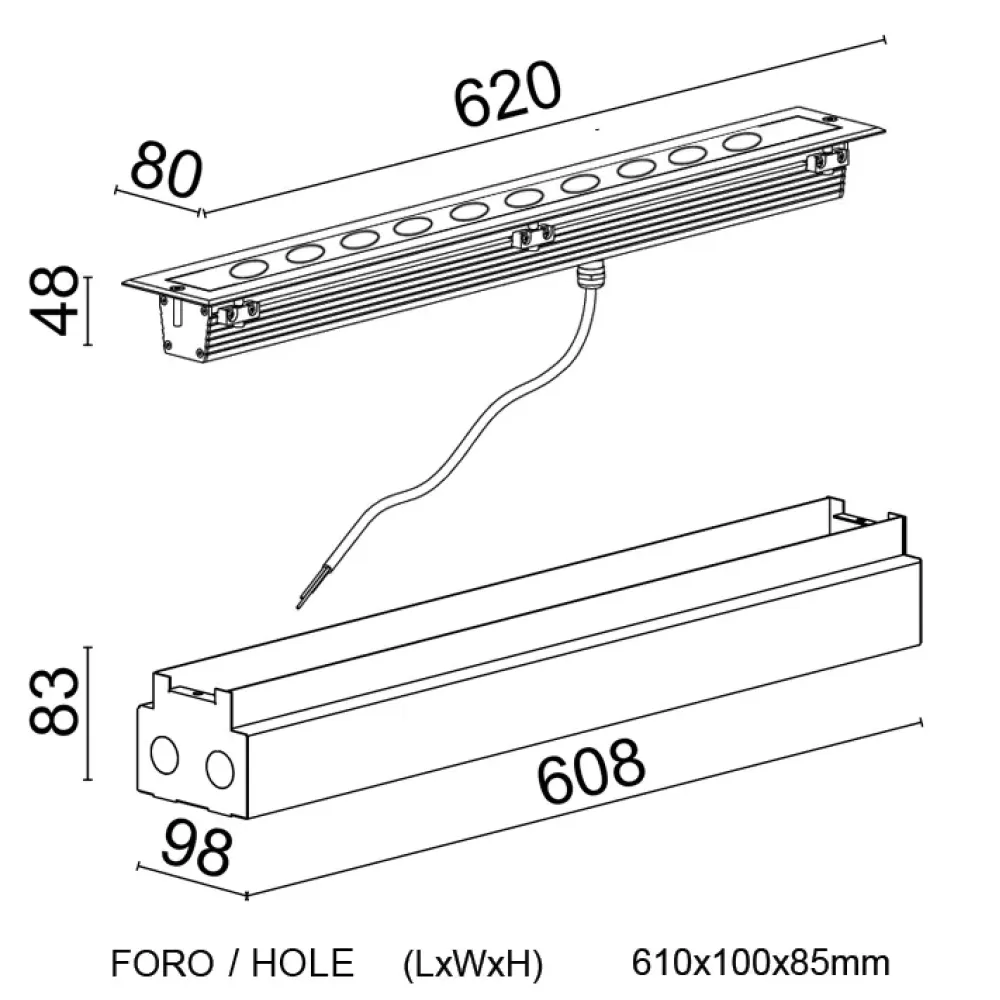

| Size | H 83 x L 620 x W 98 mm |
| Power supply | 24 VDC |
| Driver | remote driver 24VDC not included |
| Driver current | N/A |
| Control | dimmable |
| Specific wiring | included |
| Power module LED | 24 W |
| Absorbed power | 24 W |
| Source | LED RGBW |
| Source flux | 3300 lm |
| Fixture source | 2840lm |
| Apparent efficiency | 86.00% |
| Insulation class | class III |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | RGBW (W=6500K) |
| CRI | RGBW |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Colour | Steel |
