Beam
Asymmetric
Flood 28°
Oval 42° x 12°
Spot 12°
Wide Flood 50°
Light color/CCT
2700 K
3000 K
4000 K
About the product

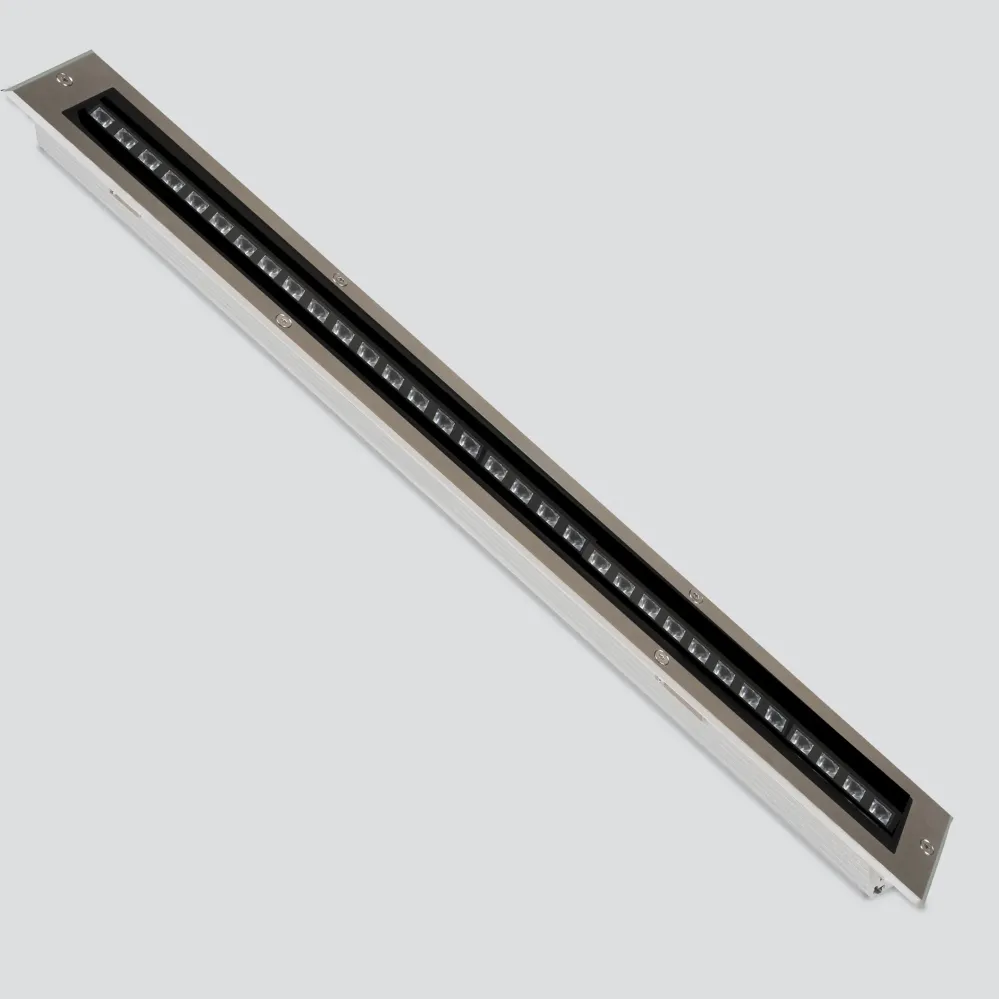

Linear floor-mounted recessed luminaire, walkable up to 500Kg. It is equipped with secondary optics for different light distributions, useful to achieve grazing effects on façades and architectural elements, or with acid-etched glass for diffused distribution combined with glare control which makes it suitable for footpaths. RGBW also available.
Product specifications
| Assembly | inground recessed |
| Body | extruded aluminium |
| Box | stainless steel sheet AISI430F |
| Frame | stainless steel AISI316 |
| Screen | tempered extra-clear glass 8mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |

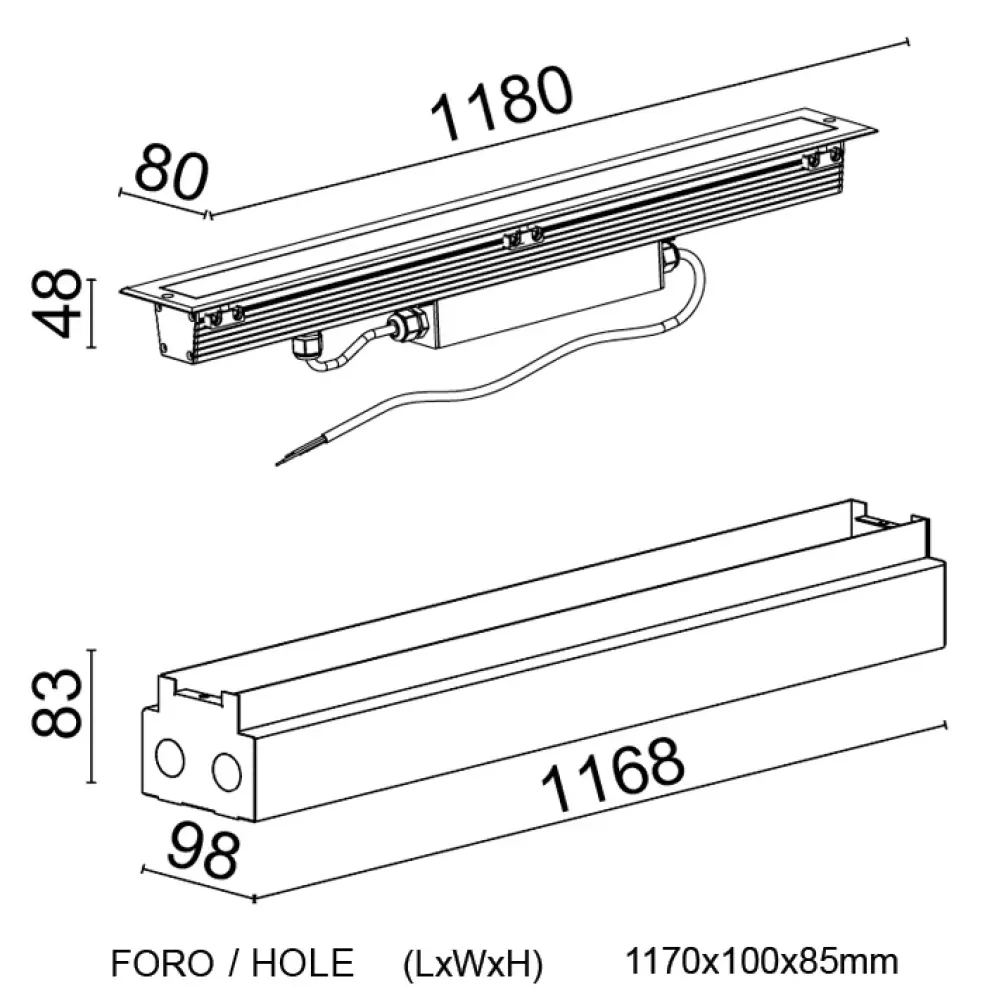

| Size | H 83 x L 1180 x W 98 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 500 mA |
| Control | on/off |
| Specific wiring | included |
| Protection | IP67/IK09 |
| Power module LED | 52 W |
| Absorbed power | 54 W |
| Source | LED |
| Source flux | 5519 lm |
| Fixture source | 4636 lm |
| Apparent efficiency | 84.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CRI | 80 CRI |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Colour | Steel |
