About the product
Hummel pin insert - M23 signal 12-pin, crimp insert without contacts
. Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 12

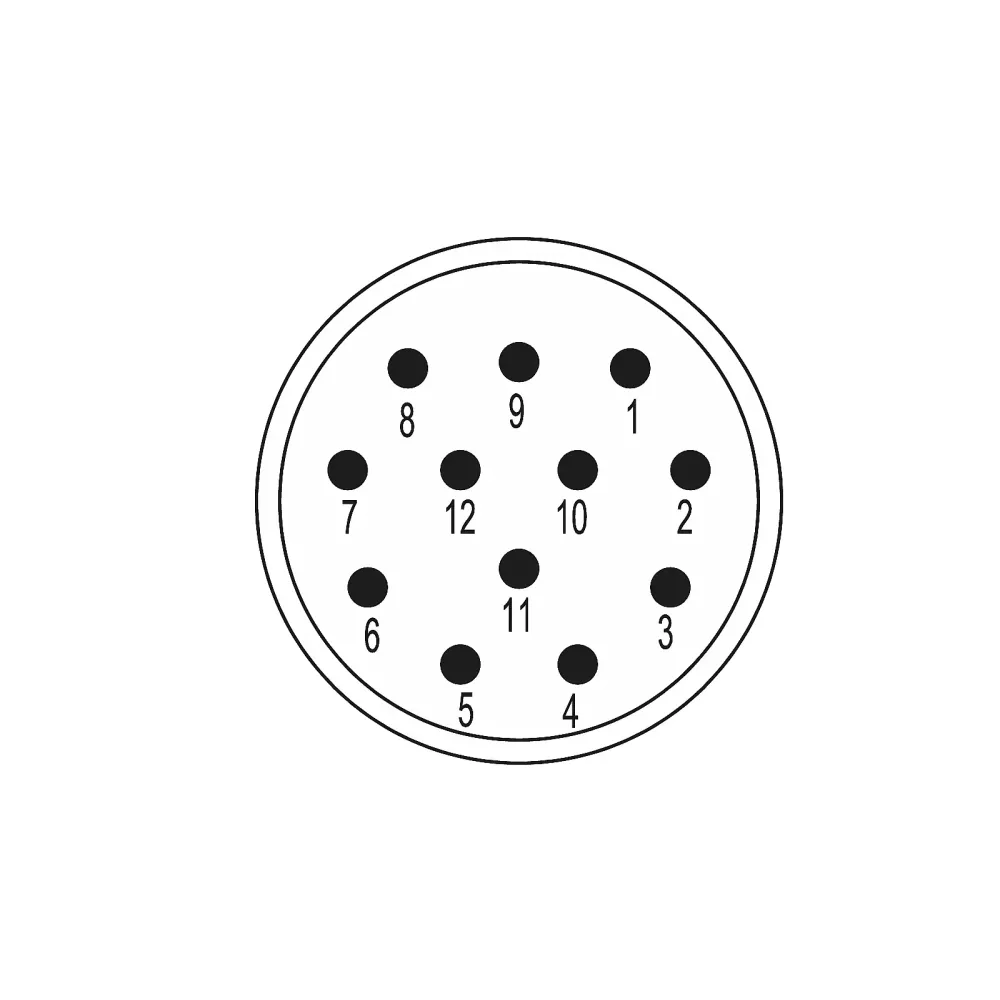

- Pole image: 12
- Direction of rotation: Standard
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 12
- Contact Ø signal: 1 mm
- Signal connection cross-section: 0.08 - 1.5 mm²
- Rated current signal: 8 A
- Rated voltage for pollution degree 3 Signal: 200 V~
- Test voltage signal: 840 V~
- Insulation resistance signal: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C..+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
- Suitable signal contacts: 7010901001, 7010901021, 7010901031
Subject to errors and technical changes
Product specifications
| Nominal current | 8 mA |
| Product | Crimp insert |
| Nominal voltage (V) | 200 V |
| Temperature range | -40°C to 125°C |
| Manufacturer | Hummel |
| Degree of soiling | 3 |
| Certificates | CSA, UL |
| Number of poles | 12 |
| Connection cross-section (mm²) | 0.08 - 1.5 mm² |
