About the product

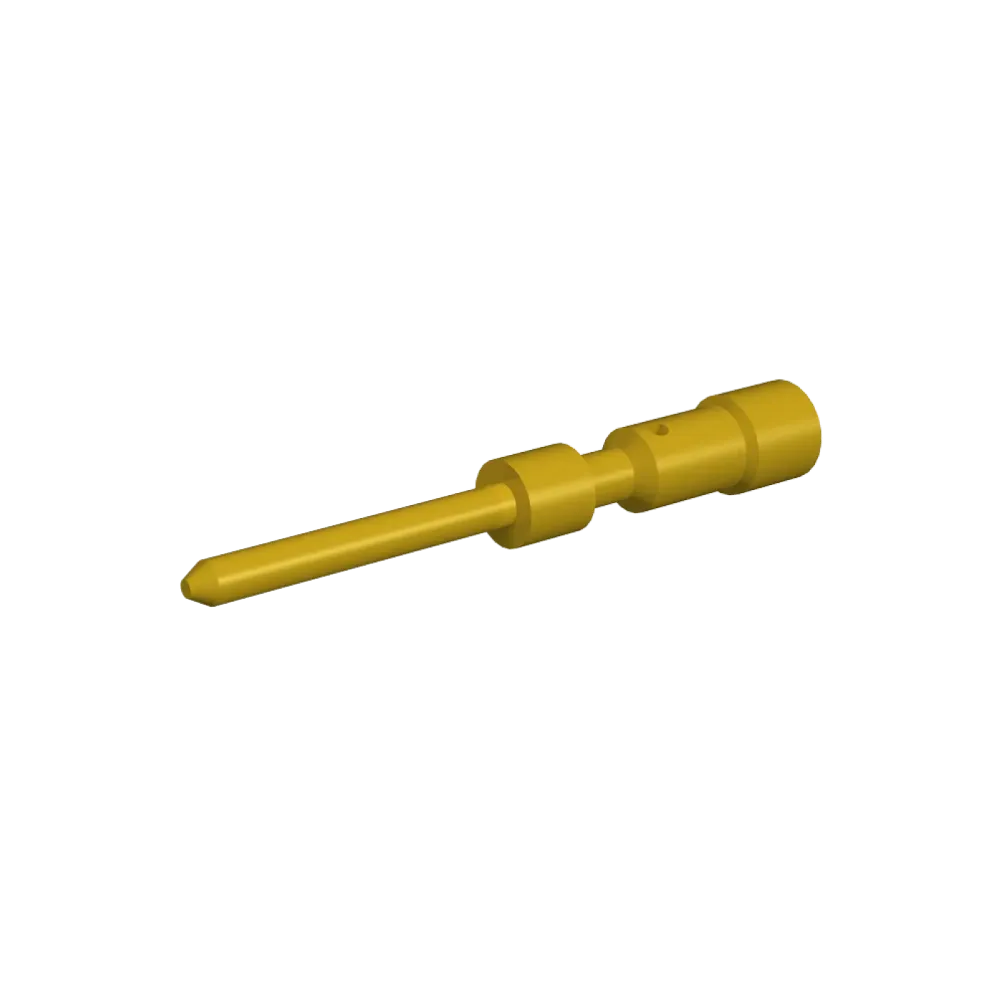

Contact: Crimp pin (m) 0.08 - 0.56 mm2 for Hummel contact inserts M23 Signal
Article number: 7.010.901.031
suitable for contact inserts: M23 signal
requires crimp sockets: 7010901012 (7.010.901.012)
. (PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm

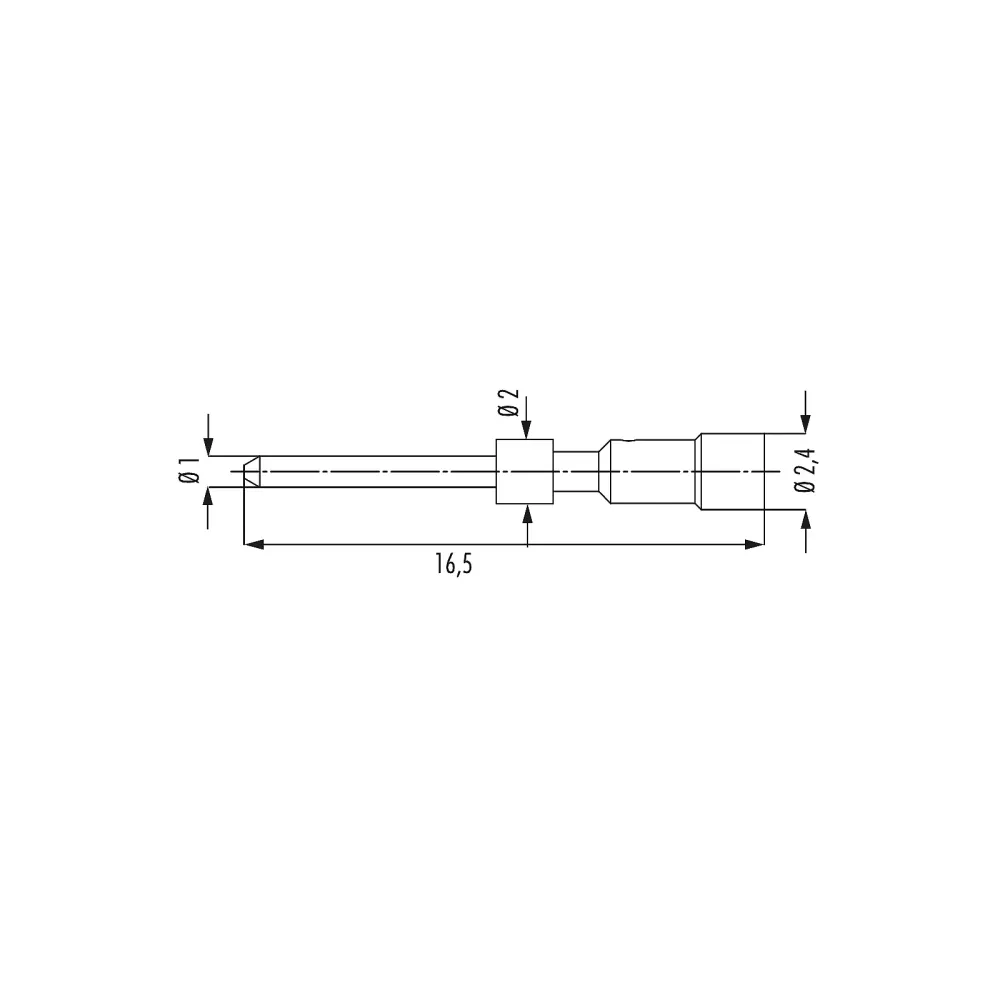

- Contact Ø data: 1 mm
- Length (L): 16.5 mm
- Connection range: 0.08 - 0.56 mm²
- Suitable crimping pliers: 7000900904 (7.000.900.904)
- Manufacturer: Hummel
Subject to errors and technical changes
Product specifications
| Certificates | IEC, UL |
| Nominal voltage (V) | 400 V |
| Nominal current | 20 A |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimping pin |
| Connection cross-section (mm²) | 0.08 - 0.56 mm² |
