Isolis NiMH

Sustainable lighting. Optimal energy efficiency. Aerial design.

Product advantages

• Installation height from 4m

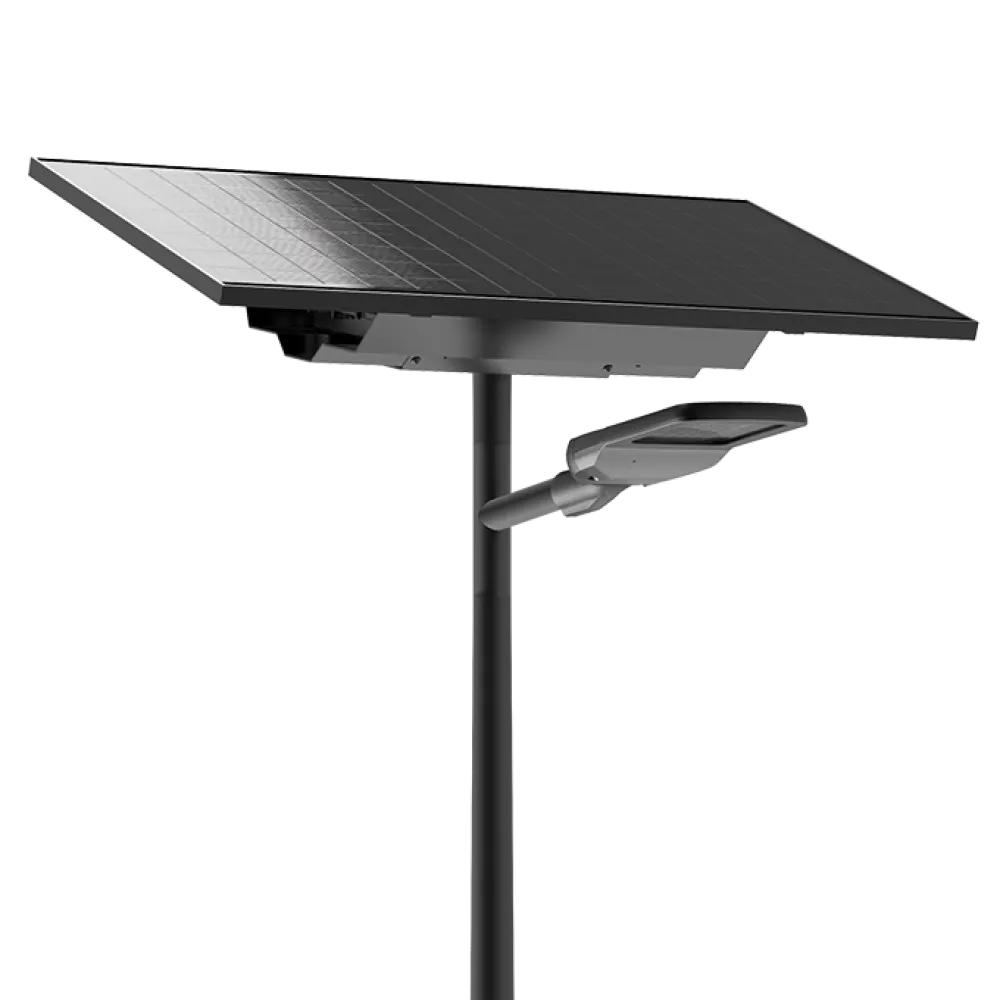

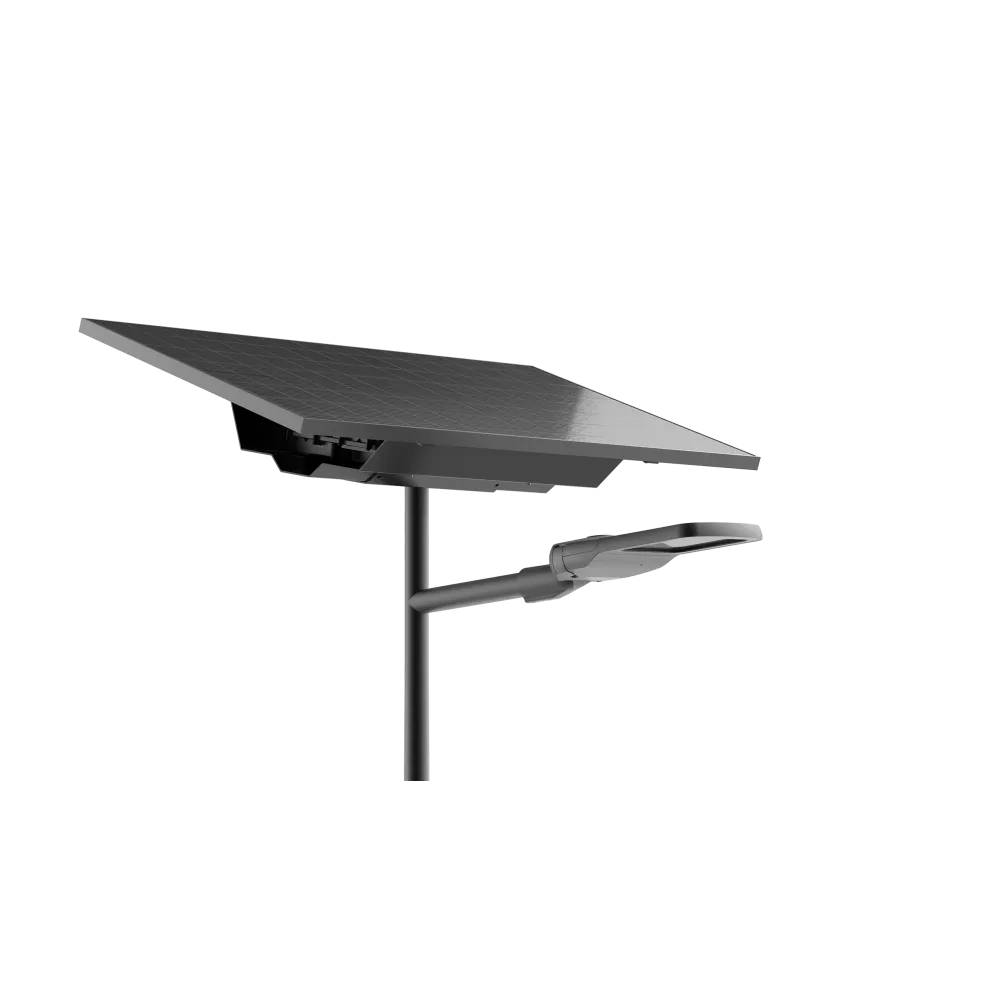

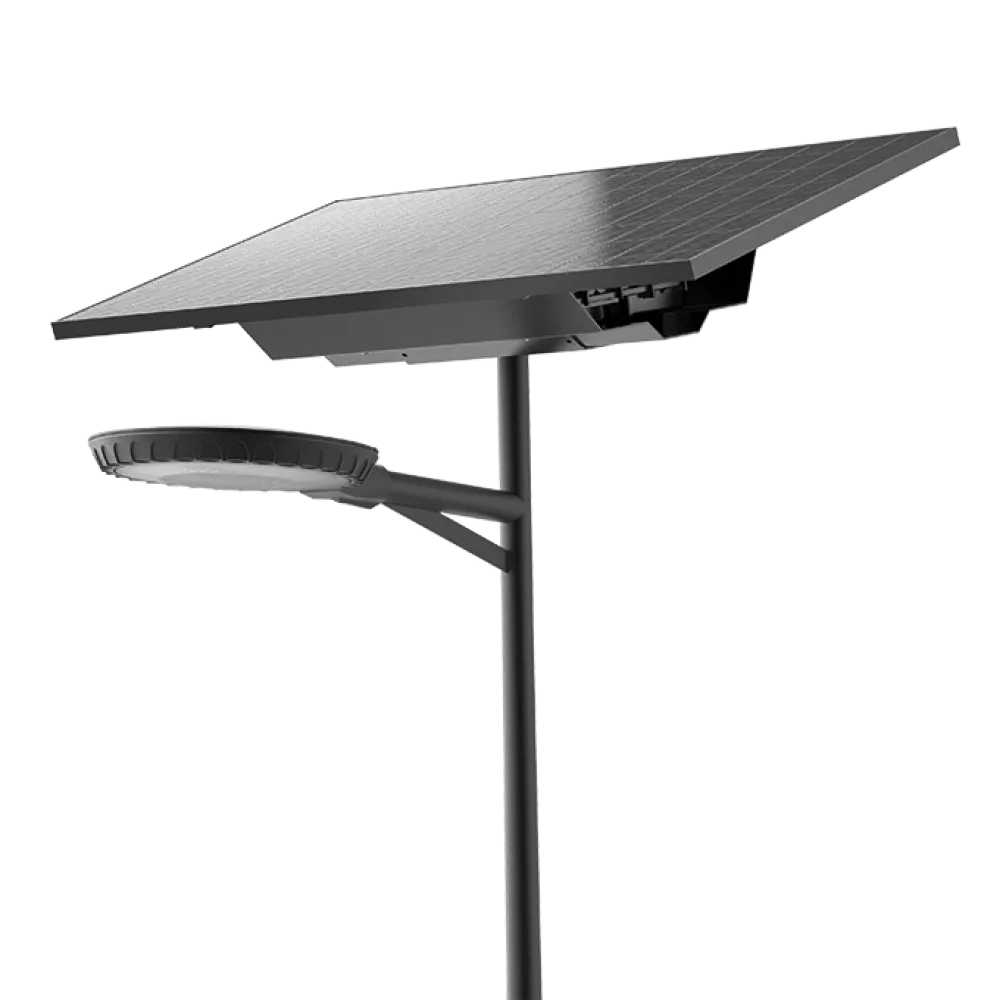

• Solar mast head and side luminaire assembly
• 360° rotation of the PV panel and the luminaire, independently
• Autonomous solution
• Color T°: 2200K - 2700K - 3000K
• Choice of optics: type II, III or IV light distributions
• Heat lacquered powder coated finish
• SmartLum Dialog optional
• PIR sensor (motion detector) optional

Dimensions:

• Width: 1515 mm
• Tilt: 20°
• Length: 880 mm

Standard programming

• Autonomous mode

Options

• Detect function
• Smartlum Dialog functions
• Smartlum Dialog + Detect functions

Standard Autonomous mode The lighting turns on at nightfall and turns off at sunrise following a power variation cycle. The Autonomous mode cycle of the Isolis 3 in standard version includes only 3 factory-set levels. The powers for each period of the night, and the start and end of night durations are determined according to need.

Detect function (optional) Isolis 3 NiMH

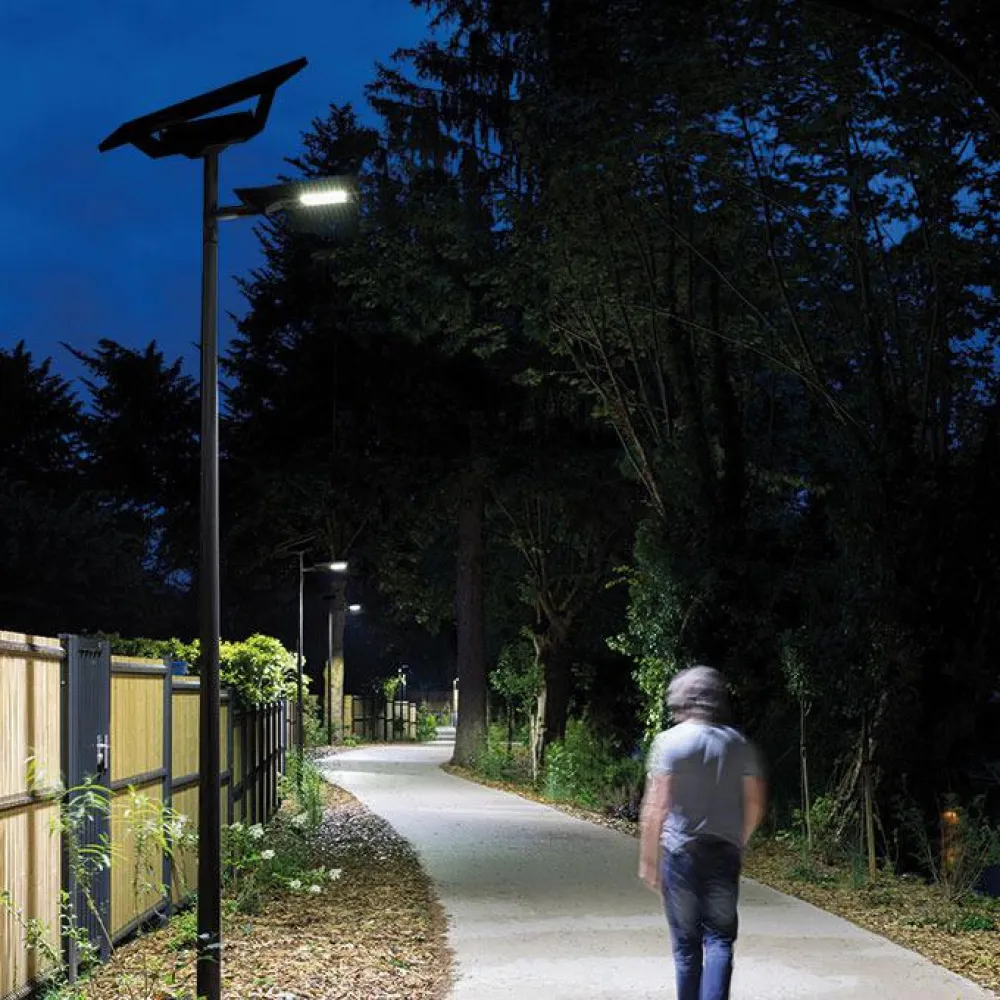

In Autonomous mode, a motion sensor (infra-red technology) is integrated into the luminaire or remote on the mast. The lighting varies upon detection of movement (person or slow vehicle). The settings are made at the factory: the setpoint after detection, the 3 levels, and the ignition duration according to the chosen specifications. Default timeout: 30 seconds.

Smartlum Dialog functions (optional) GPS, radio, and Smart Dimming modules are added to Autonomous mode. The GPS module allows you to retrieve the date and time from the integrated GPS for:

• A weekly calendar mode. The luminaire illuminates according to the period and intensity defined hour by hour throughout the year.
• A Weekend Calendar mode. Different lighting times are set during the weekend (Friday, Saturday, Sunday).
• A programmed switch-off at a fixed time during the night.

The radio module allows you to communicate with the luminaire for:

• Synchronized switching on/dimming or switching off
• On-site programming via wifi via a web browser with a smartphone, tablet, or computer without any specific application or internet connection
• Defining groups and transmitting by radio all parameters common to all luminaires in the same group

Smart Dimming allows you to adapt the power without interruption of the lighting, depending on the battery charge, the need, and the length of the night.

Detect + Smartlum Dialog functions (optional) A motion sensor is added to the Smart Lum Dialog functions to:

• Have the DETECT + GROUP function. When movement is detected by a luminaire, the selected group(s) of luminaires have synchronized switching on/dimming or switching off
• Have the DETECT + LIGHT PATH function. When movement is detected by a light, nearby lights gradually light up along the road to create a light path.
• Have the DETECT function at the light point with on-site programming via wifi.
