Curve

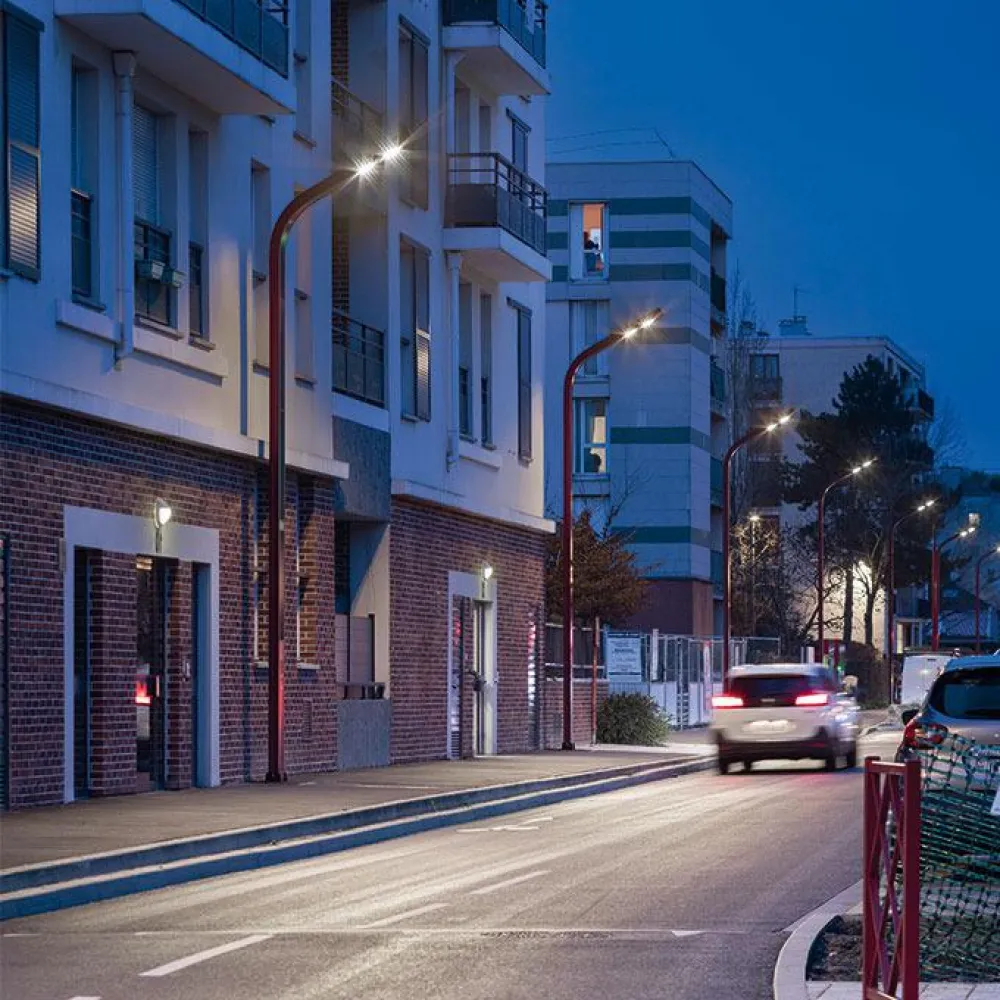

The Curve solution from the Photolight® solar range offers intelligent and autonomous lighting for urban, residential, tertiary, and private areas.

Product Advantages:

• Intelligent solar design
• Easy installation, no wiring required
• Low maintenance costs

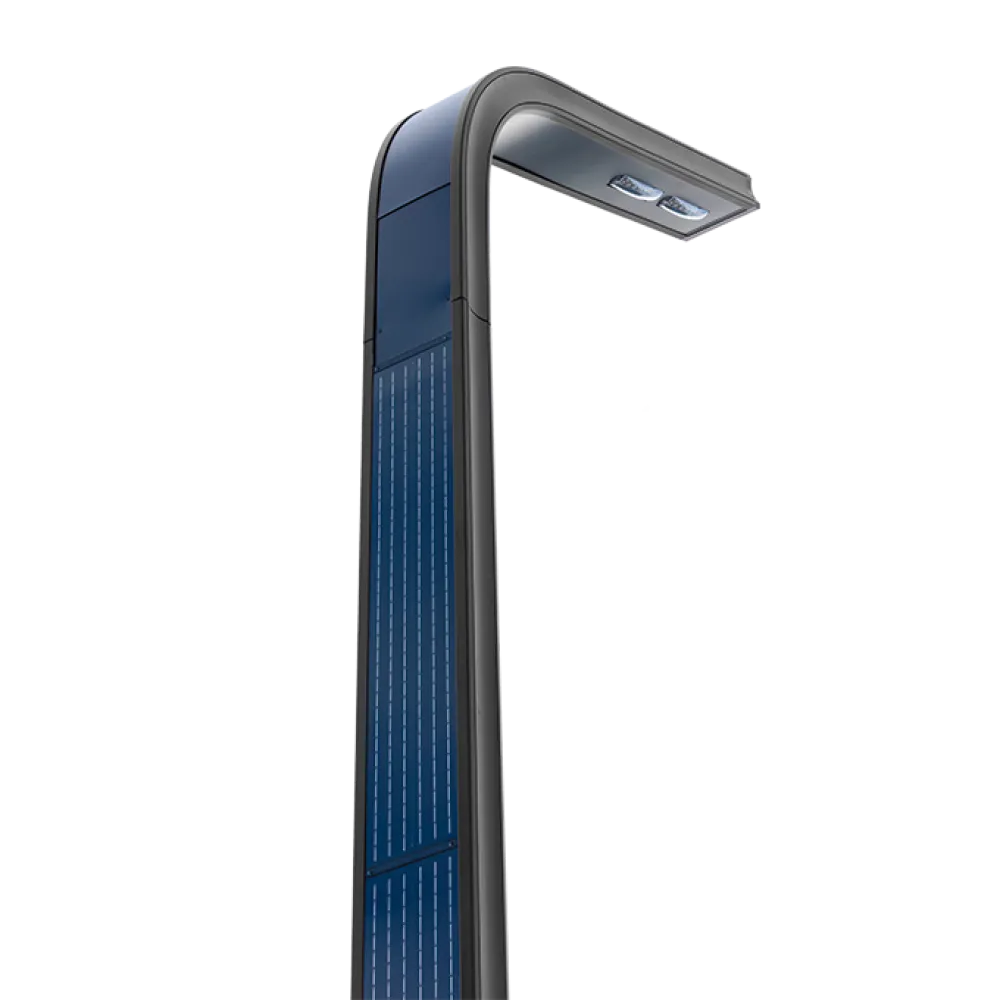

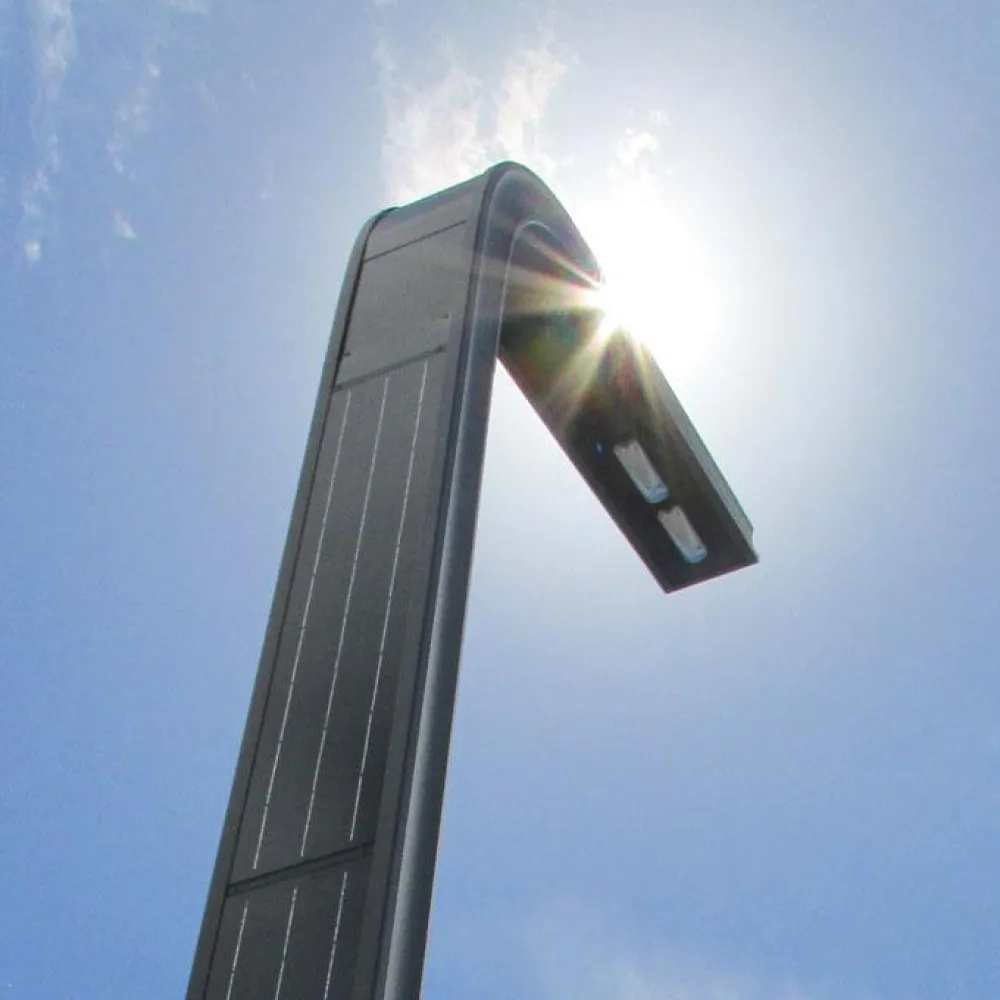

• Design and aesthetics of vertical photovoltaic panels
• Smart Lum: flexible lighting programs
• Innovative concept: hybrid power supply
• PIR motion sensor: up to 7 meters
• Color temperature: 3000K - 4000K
• Up to 40W, 1 to 2 LED modules* see summary table. *Luminaire power is determined by the solar study. Luminous efficiency of the luminaire up to 110 lm/W. Lifespan L80 @700mA @tq=25°C ≥ 50,000 hours.

Total height of the structure: 7078 mm
Height of the pole to the lamp mounting point (including foundation): 6844 mm
Length of the lamp arm: 1530 mm
Length of the foundation (part installed underground): 400 mm
Height from the foundation base to the lower part of the pole: 1220 mm
Distance from the foundation base to the point where the arm bend begins: 2872 mm

STANDARD OPTICS Lighting for narrow streets ASYM 2-2

MATERIALS — SURFACE TREATMENT Sandblasted black aluminum pole RAL 9100. Polyester powder coating baked. Specific treatment for coastal areas is optional.

CONTROL BOX - BATTERIES

• 1 Control box IP66
• 1 battery (2P=480 Wh)
• 2 batteries (4P=960 Wh)
• NiMH technology (-30°C/+70°C)
• Nominal lifespan of 10 years
• 5-year warranty
• Power box wiring via IP67 connectors with key.

SOLAR PANEL

• 7 panels IK08
• Monocrystalline technology
• Unit power of 39 W
• Compliant with IEC 61215 standard.

INSTALLATION

• Anchor bars not provided, specifications according to wind zone. See installation instructions. Batteries in the pole as standard.

STANDARDS AND CERTIFICATIONS

• EN 60598-1/2-3 Lighting fixtures: general requirements and tests - Public lighting fixtures
• EN 62722-2-1 Lighting fixture performance: requirements for LED fixtures
• UTE C15-712-2 Practical guide - Autonomous photovoltaic installations not connected to the public distribution network with battery storage
• EN 40-6 Specifications for public lighting poles in aluminum

Programming Options:

• Autonomous mode
• Detection function
• Smartlum Dialog functions
• Smartlum Dialog + Detection functions

Autonomous Mode:
The lighting turns on at sunset and off at sunrise following a power variation cycle. The autonomous mode cycle includes 3 levels configurable at the factory. The power for each period of the night and the start and end durations of the night are determined based on needs.

Detection Function:
In autonomous mode, the integrated motion sensor (radar technology) in the luminaire is activated. The lighting changes upon detecting movement (person or slow vehicle). The settings include the setpoint after detection, the 3 levels, and the activation duration based on chosen specifications. Default timeout is 30 seconds.

Smartlum Dialog Functions:
The GPS module allows retrieving the date and time from the integrated GPS to:

• Have a weekly calendar mode. The luminaire illuminates according to the defined period and intensity hour by hour throughout the year.
• Have a weekend calendar mode. Different lighting hours are set during the weekend (Friday, Saturday, Sunday).
• Have a scheduled shutdown at a fixed time during the night.

The radio module allows communication with the luminaire to:

• Have synchronized on/off or adjustment
• Allow on-site programming via Wi-Fi through a web browser using a smartphone, tablet, or computer without any specific application or internet connection.
• Define groups and wirelessly transmit all common parameters to all luminaires in the same group. Smart dimming allows adjusting power without interrupting lighting, based on battery charge, needs, and night duration.

Detection + Smartlum Dialog Functions:
In Smart Lum Dialog, the motion sensor is activated to:

• Have the DETECT + GROUP function. When movement is detected by a luminaire, selected groups of luminaires turn on, dim, or turn off synchronously.
• Have the DETECT + LIGHT PATH function. When movement is detected by a light, nearby lights gradually turn on along the road to create a light path.
• Have the DETECT function at the light point with on-site programming via Wi-Fi.
