About the product

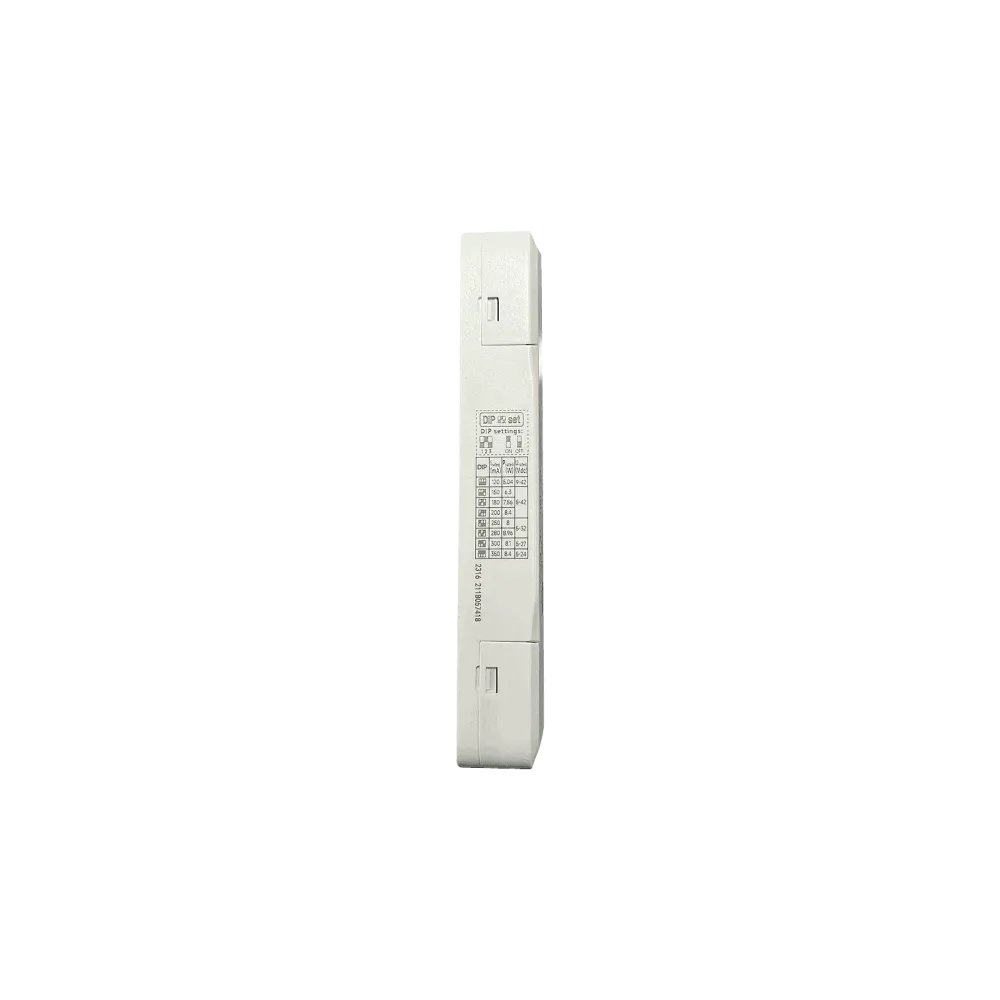

The FLS-8-350 DALI2 LD LED driver with constant current output is designed for the operation of LED lighting applications from 150 to 350mA in the voltage range from 5 to 42Vdc. The output current can be set using the DIP switch on the device. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 5 to 42Vdc (8W maximum)
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 1..100%
- Adjustable output currents 150mA / 180mA / 200mA / 250mA / 280mA / 300mA / 350mA
- Dimensions 142x30x20mm (L x W x H) incl. strain relief
Product specifications
| Height | 20 mm |
| Dimming type | Current control |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 142 mm |
| Power | 8 W |
| Control | DALI, AC Push Dimming |
| Width | 30 mm |
| Current setting | DIP switch |
| Manufacturer | Eaglerise |
| Channels | 1 |
| Application | Single color |
| Additional functions | Corridor function |
