80W LED Driver Constant Voltage 24V/3.33A, DALI

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

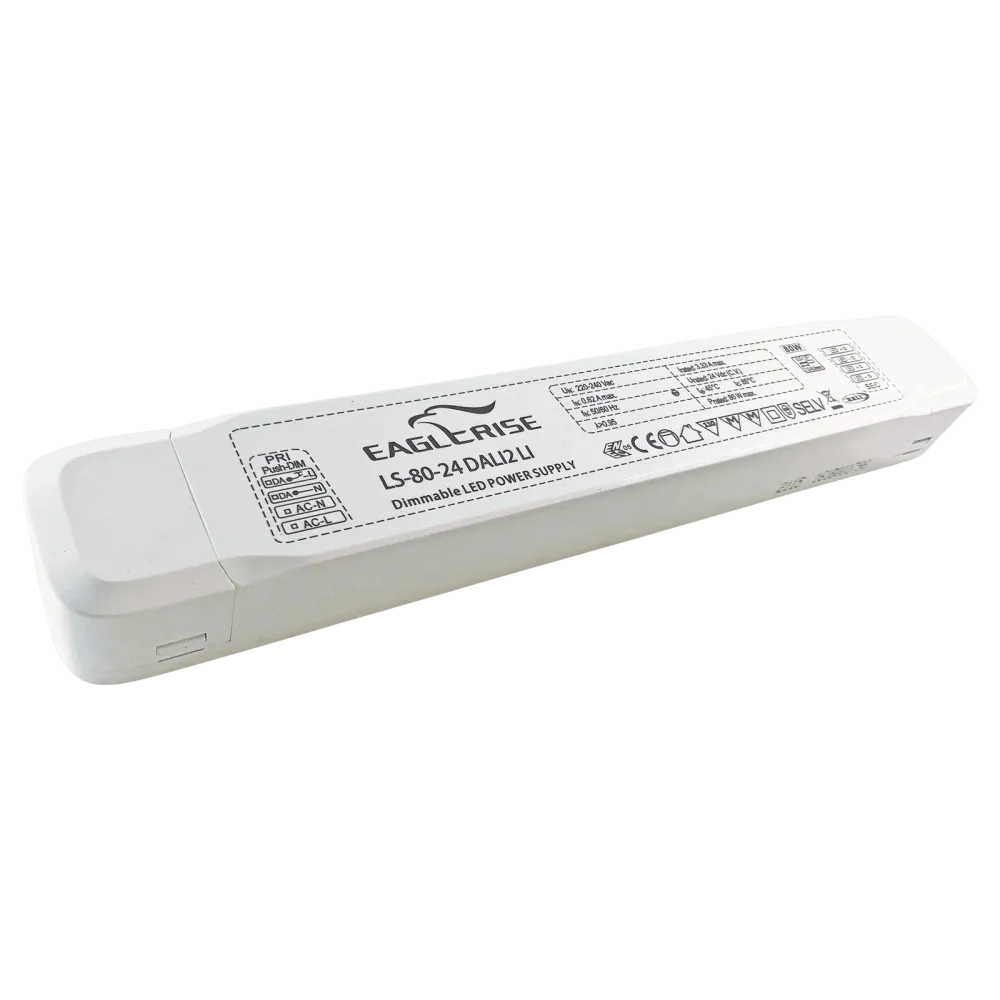

LS-80-24 DALI2 LI is a 80W LED constant voltage driver with 24Vdc output voltage. The light can be controlled via DALI2 or with a simple push button (AC Push). The 4kHz PWM dimming frequency ensures flicker-free dimming. The connection with spring-loaded terminals allows a quick and uncomplicated installation.

Technical data

Input voltage 198 to 264Vac
Stand-By power consumption 0.5W
Built-in DALI2 interface and AC Push
PWM dimming output with high dimming frequency of 4kHz
Protection class II Driver without ground connection
Spring terminals and tool-less mounting of the covers allow quick installation
Plastic housing
Operating temperature range from -20°C to +60°C
Dimensions 290 x 45 x 30.5mm (L x W x H)
5 years warranty

Product specifications

Output voltage (VDC)	24 V
Manufacturer warranty	5 years
Product series	LS
Input voltage range (VAC)	200-240 V
Additional functions	Corridor function, EL mark
Connection	Push-in terminal
IP protection	IP20
Height	30.5 mm
Width	45 mm
Length	290 mm
Application	Single color
Dimming method	PWM
Control	DALI2, DALI, AC Push Dimming
Channels	1
Output current	3.33 A
Power	80 W
Manufacturer	Eaglerise
