About the product

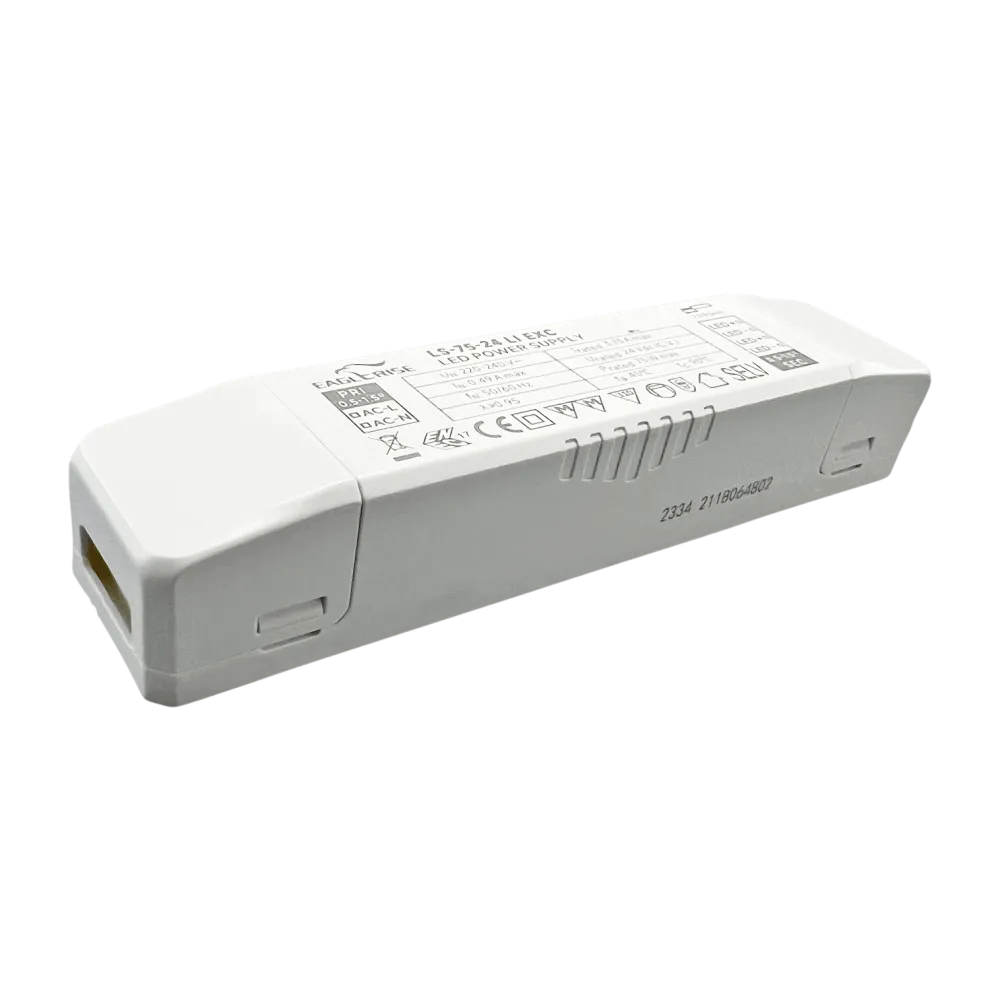

LS-75-24 LI EXC is a 75W constant voltage LED Driver. The class II design (without FG) accepts input from 198 to 264Vac. Equipped with terminal block and strain relief LS-75-24 LI EXC ideally fits the entry-level LED applications.
Technical data
- Input voltage 198 to 264Vac
- Life Time >50’000 hours
- Operating temperature -20°C bis +45°C
- Dimensions 168 x 38 x 30mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Product series | LS |
| Input voltage range (VAC) | 200-240 V |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 38 mm |
| Length | 168 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 3.13 A |
| Power | 75 W |
| Efficiency | 89.00% |
Data sheets
