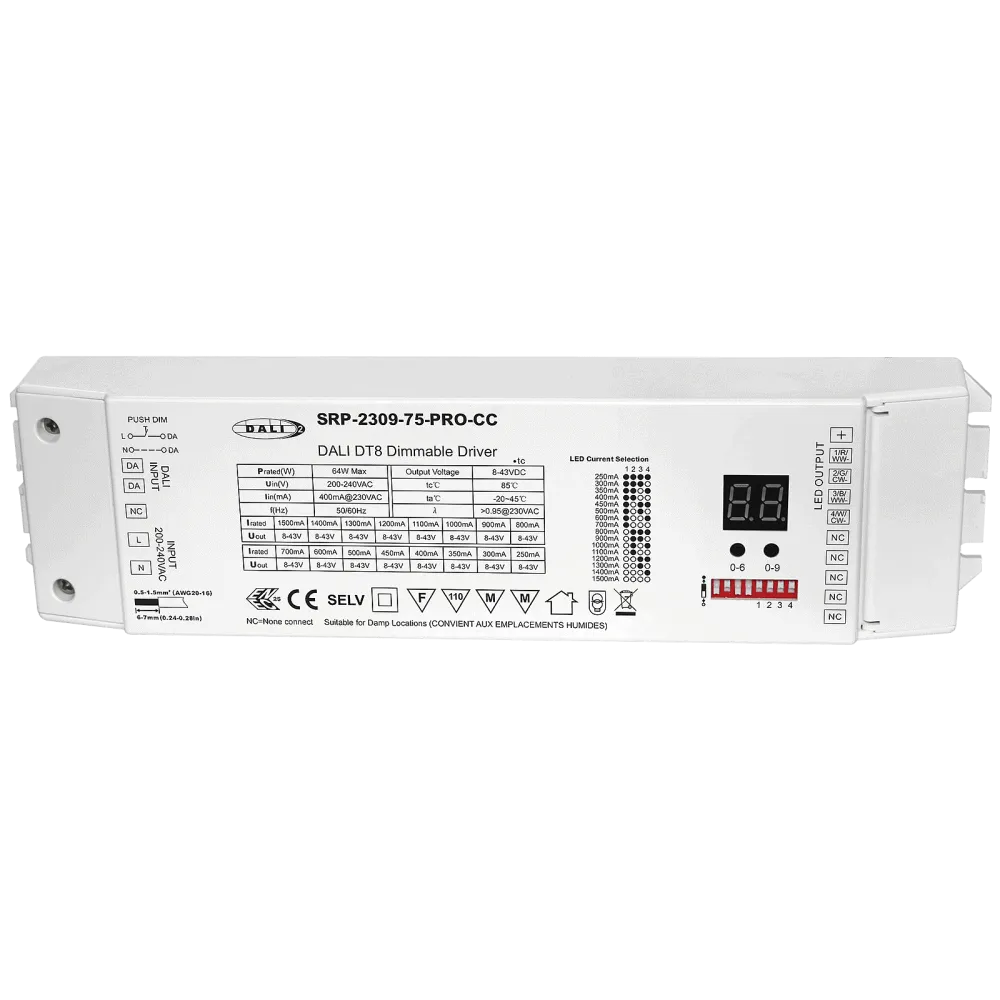

75W 4 in 1 DALI DT8 DIMMABLE LED DRIVER CC

SRP-2309-75-PRO-CC with PWM output and integrated DALI DT8 interface is ideal for operating constant current LED applications such as LED modules. One unit for all lighting situations, TW, Single Color, RGB and RGBW.

Control

• DALI DT8, AC-PUSH

Application

• Tunable White, RGBW, RGBW, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Dimming method: PWM, 1.5kHz

Technical data

• Dimmable 4 in 1 constant current DALI DT8 LED driver
• AC push dimmable
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 4 channels constant current output, total output power up to 75W
• 250mA-1500mA output current optional
• Output current level selectable via DIP switch
• Class 2 power supply, fully insulated plastic housing
• Power factor > 0.9, efficiency > 87%
• 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, adjustable via keys
• DALI DT8 unit for controlling RGBW outputs or tunable white outputs via a single DALI address
• Colour type primary N, Tc, XY coordinate, RGBW can be set via manual keys
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Protection against short circuit, overload and overtemperature
• Protection class IP20
• 5-year warranty
• Dimension 244 x 64 x 32mm
