About the product

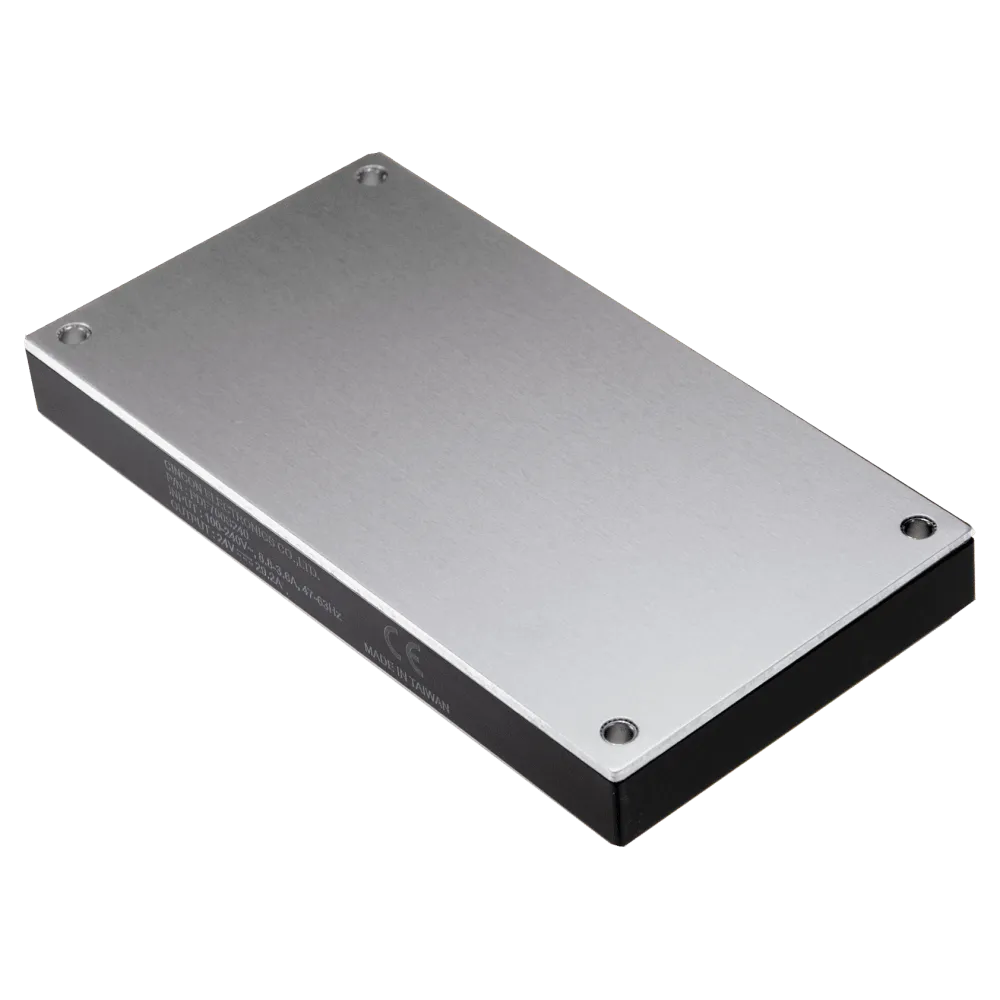

PDF700S280 series from Cincon is an innovative 700W high-density, class I, AC-DC power module in an industrial standard Full Brick size (116.8×61.0x12.7mm). It has safety approvals for IEC/UL/EN 62368-1, and the AC-DC power supply series provides EMC compliance to meet EN55032 Level A for conducted and radiated emissions as well as offer immunity to meet EN55035.
Technical data
- Input range 90 to 264Vac
- Power Facor Correction (PFC)
- very wide operating case temperature range of -40°C to +100°C
- Operating Altitude 5000m
- Full Brick size with only 12.7mm height
- Remote ON/OFF, Remote Sense
- Safety approvals for IEC/UL/EN 62368-1
- over-voltage protection (OVP), over temperature protection (OTP), and continuous short circuit protection
Product specifications
| Output voltage (VDC) | 28 V |
| Manufacturer | Cincon |
| Certificates | EN62368-1 / ITE, IEC62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 90-264 V |
| Height | 12.7 mm |
| Width | 61 mm |
| Length | 116.8 mm |
| Application | ITE/AV |
| Power | 700 W |
| Efficiency | 90.00% |
