About the product

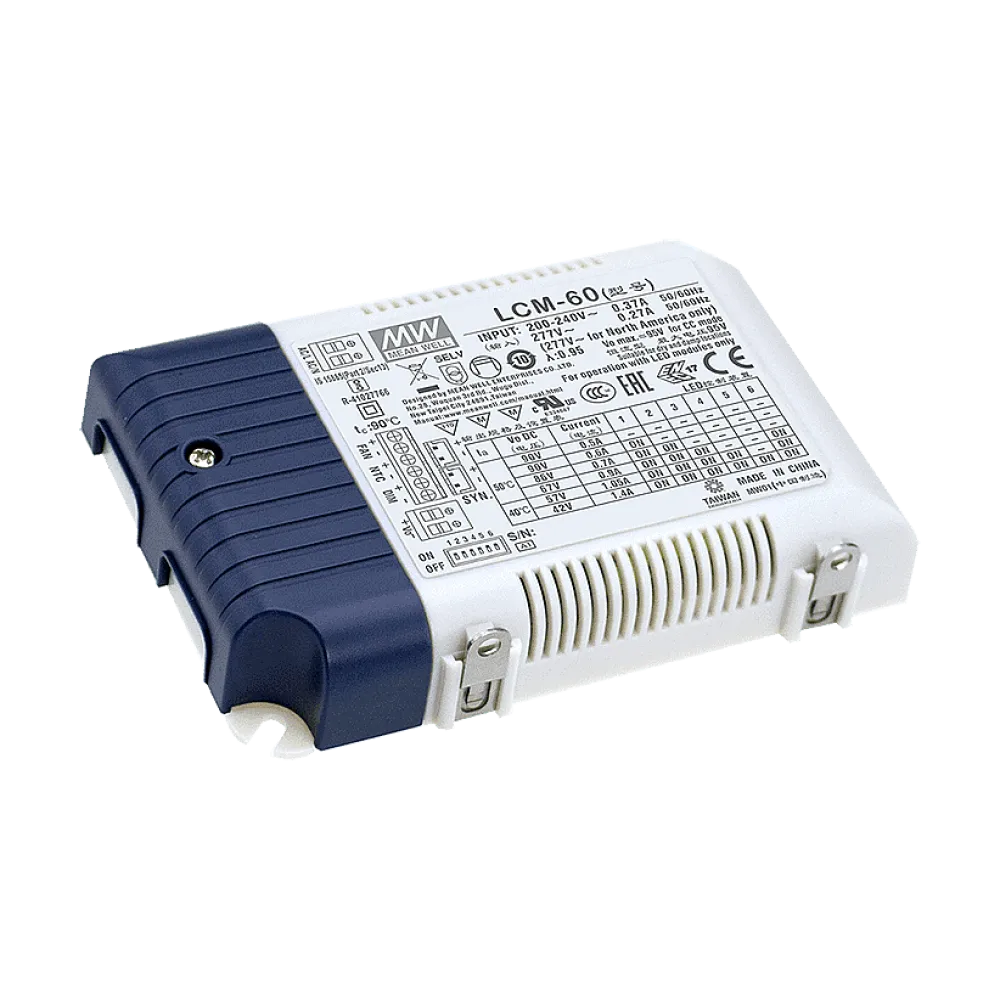

LCM-60EO is a wireless dimming device for constant current LED devices working with batteryless switches with mounting plate which can be perfectly fitted into the wall for standard household application. No more dimming wires need to be installed
Technical data
- AC input 180 to 277Vac
- Output current selectable by DIP switch
- Built-in ENOCEAN interface for wireless dimming
- Built-in 0-10Vdc or PWM signal or resistance dimming function
- Dimming by current reduction, No PWM output
- Class II power unit, no FG
- Synchronization function up to 10 units (additional SYNC cable required)
- No load power consumption <1W
- Easy installation by spring terminal blocks
- Dimension 123.5 x 81.5 x 23mm (L x W x H)
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 60 W |
| Output voltage range (VDC) | 2-90 V |
| Output current | 500-1400 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | NTC function |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 23 mm |
| Width | 81.5 mm |
| Length | 123.5 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Enocean, Resistor, 0-10V, 1-10V, PWM control signal |
| Product series | LCM |
