40W LED Driver CC 350/500/600/700/900/1050mA, ENOCEAN

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

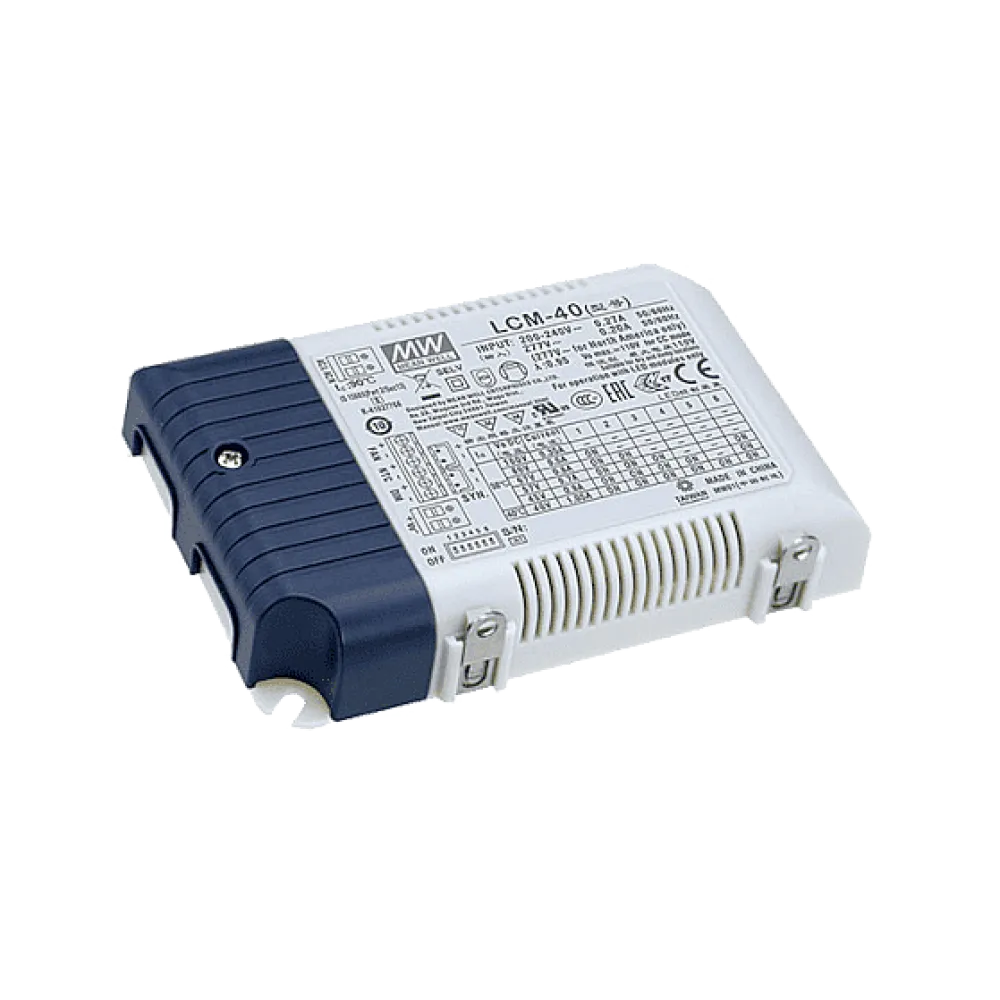

Mean Well LCM-40EO is a wireless dimming device for constant current LED devices working with batteryless switches with mounting plate which can be perfectly fitted into the wall for standard household application. No more dimming wires need to be installed

Technical data

AC input 180 to 277Vac
Output current selectable by DIP switch
Built-in ENOCEAN interface for wireless dimming
Built-in 0-10Vdc or PWM signal or resistance dimming function
Dimming by current reduction, No PWM output
Class II power unit, no FG
Synchronization function up to 10 units (additional SYNC cable required)
No load power consumption <1W
Easy installation by spring terminal blocks
Dimension 123.5 x 81.5 x 23mm (L x W x H)
3 years warranty
Manufacturer MEAN WELL

Product specifications

Power	40 W
Output voltage range (VDC)	2-100 V
Output current	350-1050 mA
Input voltage range (VAC)	200-240 V
Manufacturer	MEAN WELL
Manufacturer warranty	3 years
Additional functions	NTC function
Connection	Push-in terminal
IP protection	IP20
Height	23 mm
Width	81.5 mm
Length	123.5 mm
Application	Single color
Dimming method	Current regulation
Current setting	DIP switch
Channels	1
Control	Enocean, Resistor, 0-10V, 1-10V, PWM control signal
Product series	LCM
