About the product

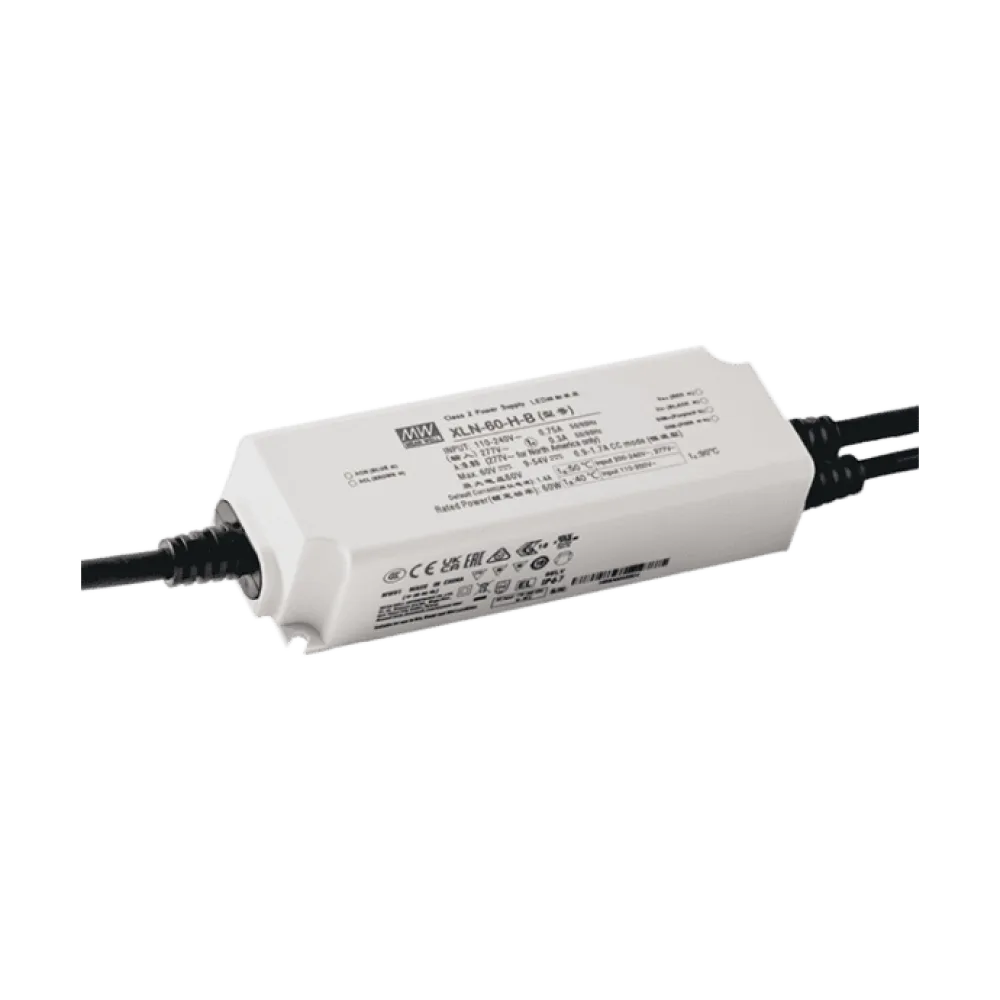

XLN-60-H-DA2 is a flexible LED driver with constant current output for direct operation of LED lighting applications. Dimmable via AC Push or DALI.
Highlights
- The output current can be programmed using a smartphone via NFC
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable via AC Push or DALI
- Dimming is flicker-free with current control, no PWM at the output
Control
- DALI 2.0
- AC Push
Dimming range
The dimming range is 0.1% to 100% of the selected output current.
Technical data
- Fully moulded plastic housing with IP67 protection
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Power | 60 W |
| Output current | 900-1700 mA |
| Efficiency | 90.00% |
| Product series | XLN |
| Input voltage range (VAC) | 110-305 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power, EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 49 mm |
| Length | 141 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | NFC |
| Channels | 1 |
| Control | DALI2, AC Push Dimming |
| Output voltage range (VDC) | 9-54 V |
