About the product

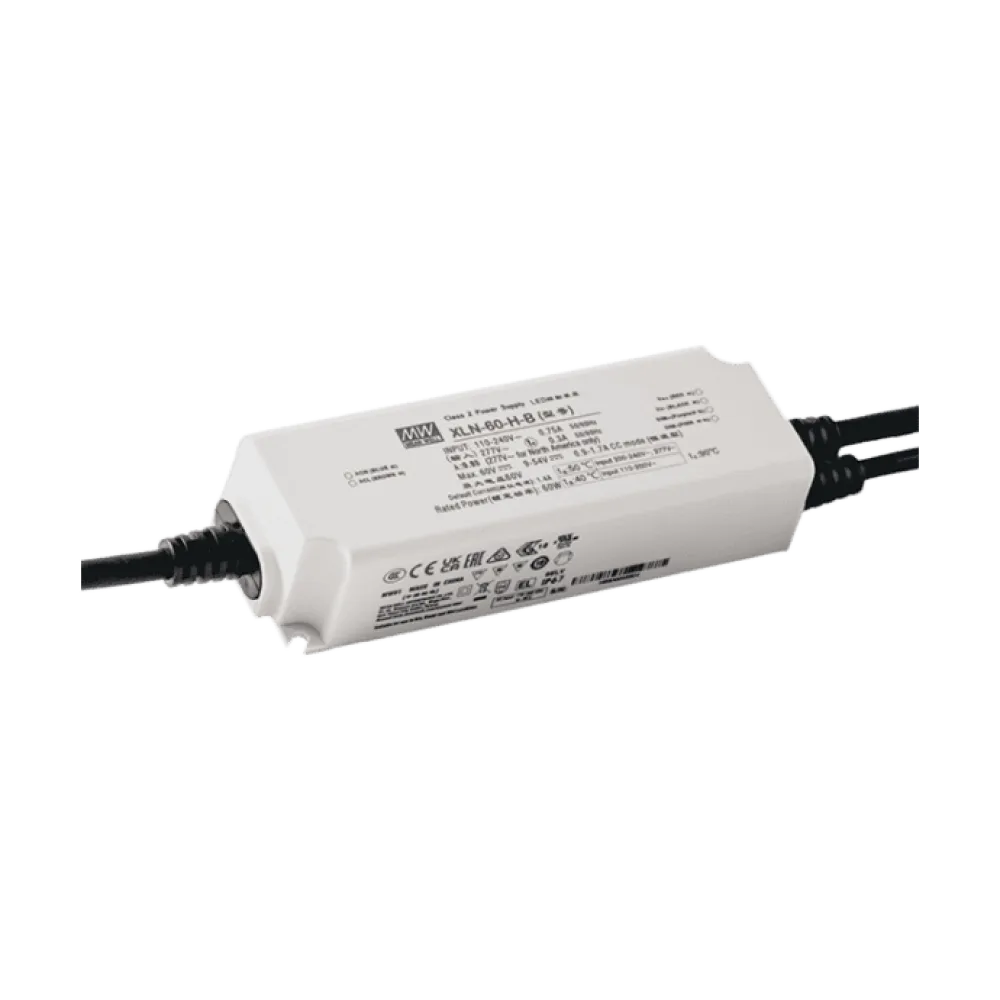

XLN-60-12-DA2 is an LED driver in an IP67 plastic housing for 12Vdc LED applications. Dimmable via DALI or AC Push.
Control
- DALI 2.0
- AC Push
Dimming range
The dimming range is 1% to 100% (load-independent dimming via PWM)
PWM frequency 3.2kHz
Technical data
- Fully moulded plastic housing with IP67 protection
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Power | 60 W |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Product series | XLN |
| Input voltage range (VAC) | 110-305 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 49 mm |
| Length | 141 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI2, AC Push Dimming |
| Channels | 1 |
| Efficiency | 86.00% |
