About the product

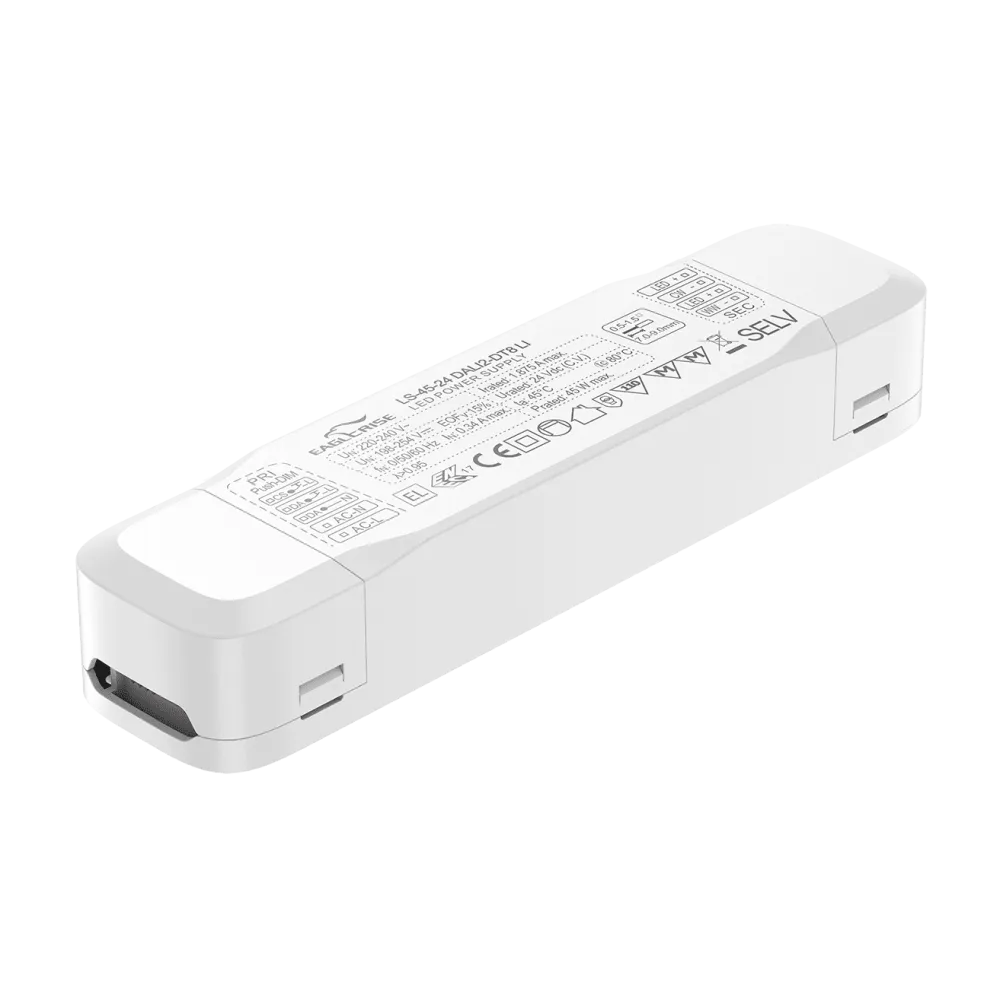

The LS-45-24 DALI2-DT8 LI LED driver with constant voltage output is designed to operate 24Vdc Tunable White LED lighting applications. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Two push-buttons are required for push-button operation. One button for brightness and one button for colour temperature.
Technical data
- 24Vdc Tunable White LED Driver
- DALI2 DT8 and AC Push interface
- Dimming range 1…100%

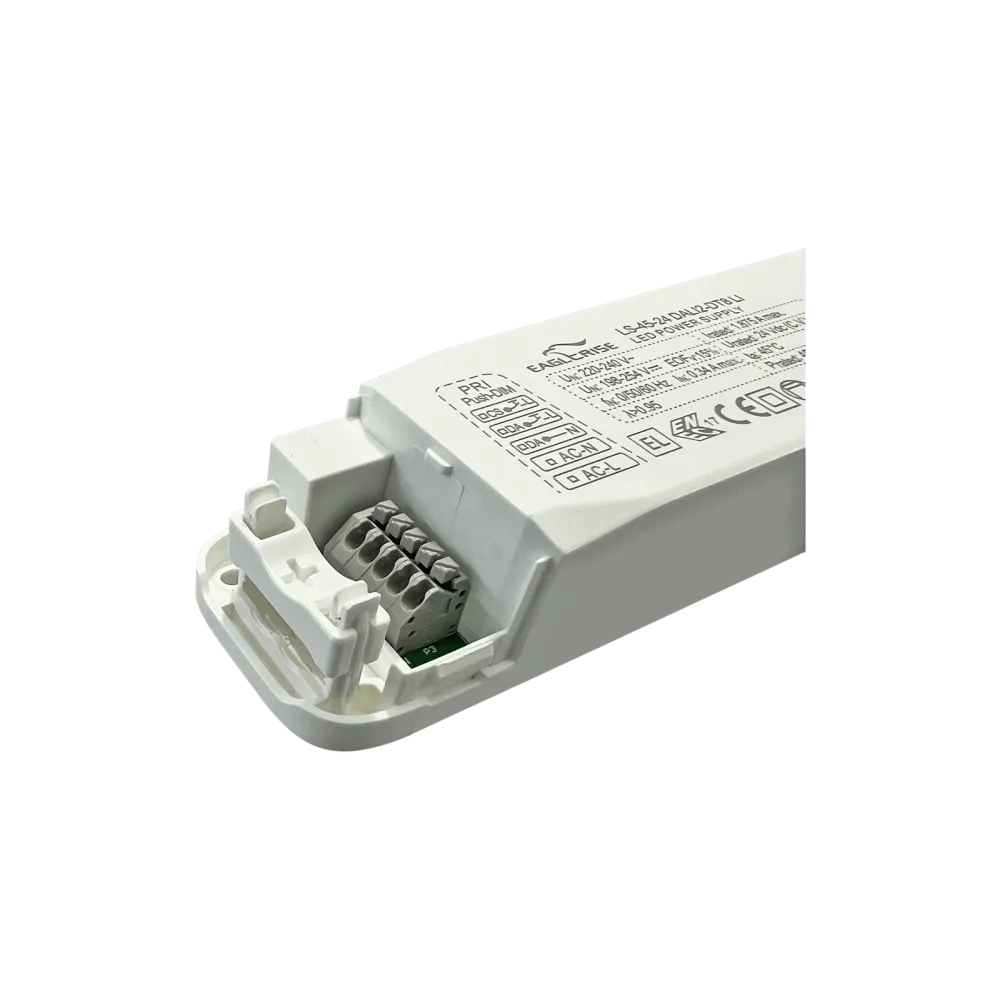

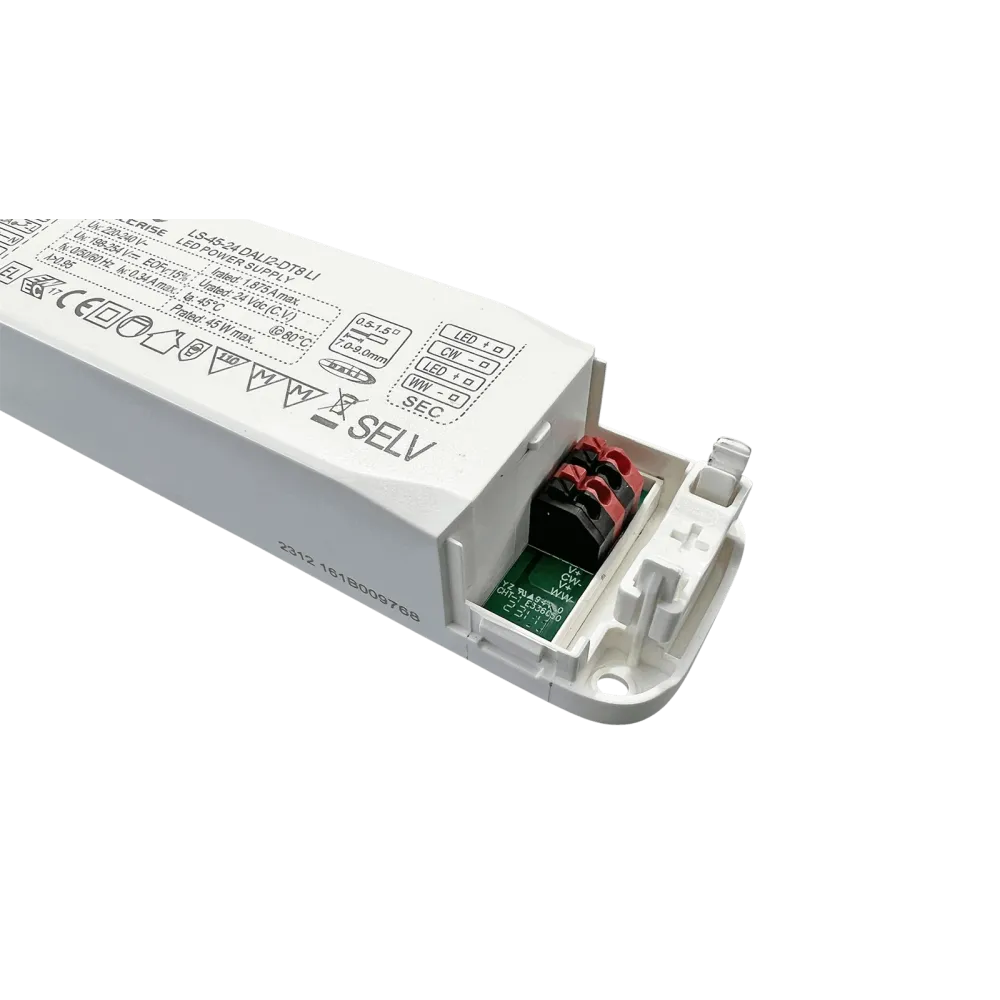

- Connection with spring clamp terminal and integrated strain relief
- Dimensions 187x45x30.5mm
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Product series | LS |
| Input voltage range (VAC) | 220-240 V |
| Additional functions | EL mark |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30.5 mm |
| Width | 45 mm |
| Length | 187 mm |
| Application | Tunable white |
| Dimming method | PWM |
| Control | DALI DT8, AC Push Dimming |
| Channels | 2 |
| Output current | 1.88 A |
| Power | 45 W |
| Efficiency | 85.00% |
