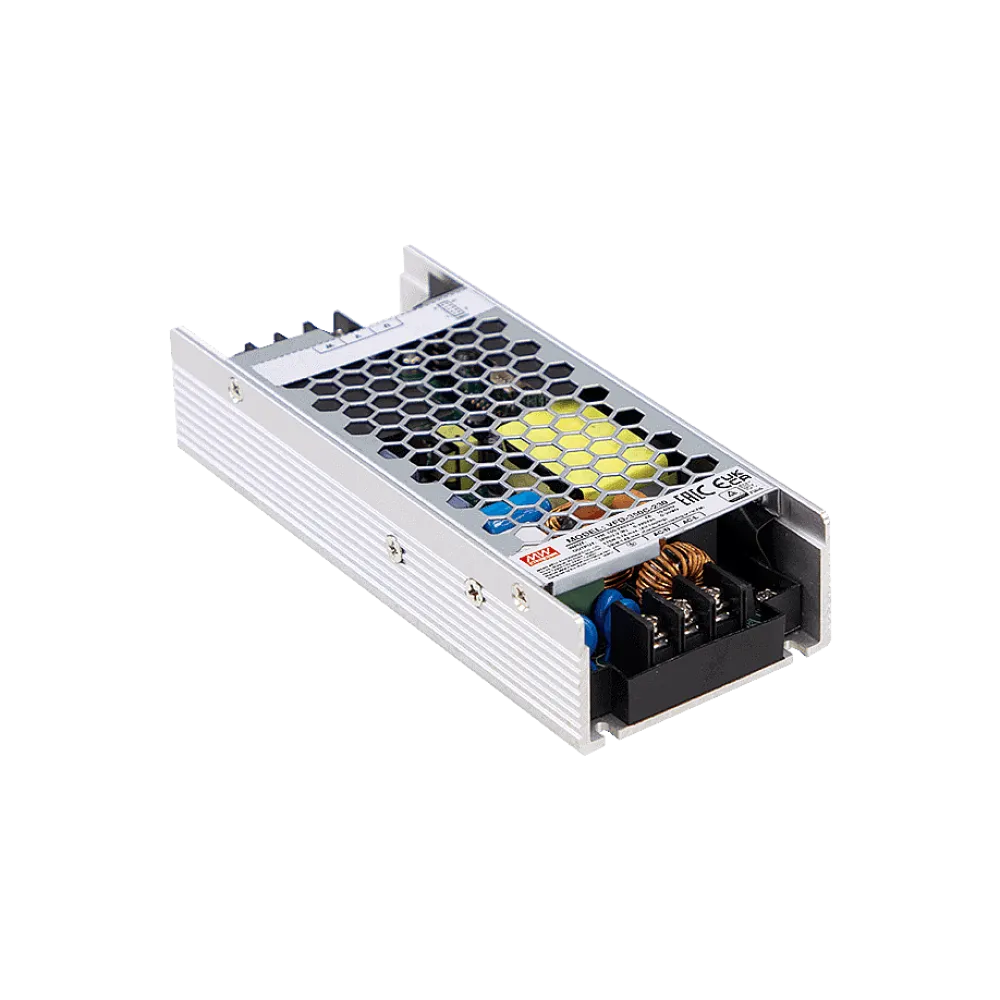

350W Variable Frequency Drive with PFC, 3-phase 0-240V / 1.4A

VFC-350C-230 is a variable frequency drive that can be controlled with external PWM controller. The input range is from 90Vac to 264Vac which is suitable for all kinds of installation. VFD-350C-230 able to deliver 200% peak load and with fan-less design, the life time can be extended. VFD is suitable for three-phase motor drive, such as BLDC, induction motor, SynRM applications.

Technical data

• 90 to 264Vac input, built-in PFC function
• Controllable with external controller
• Fanless design for no-noise and expanding life cycle
• High surge current 200% for up to 5 seconds
• Protections: Short circuit / OCP
• Povided multiple sensors for control
  Current sensor- motor torque control
  DC bus voltage sensor – OVP / UVP
  Temperature sensor – OTP
• -30°C to 60°C wide operating temperature
• Suitable for three phase motor drive (BLDC, Induction motor, SynRM)
