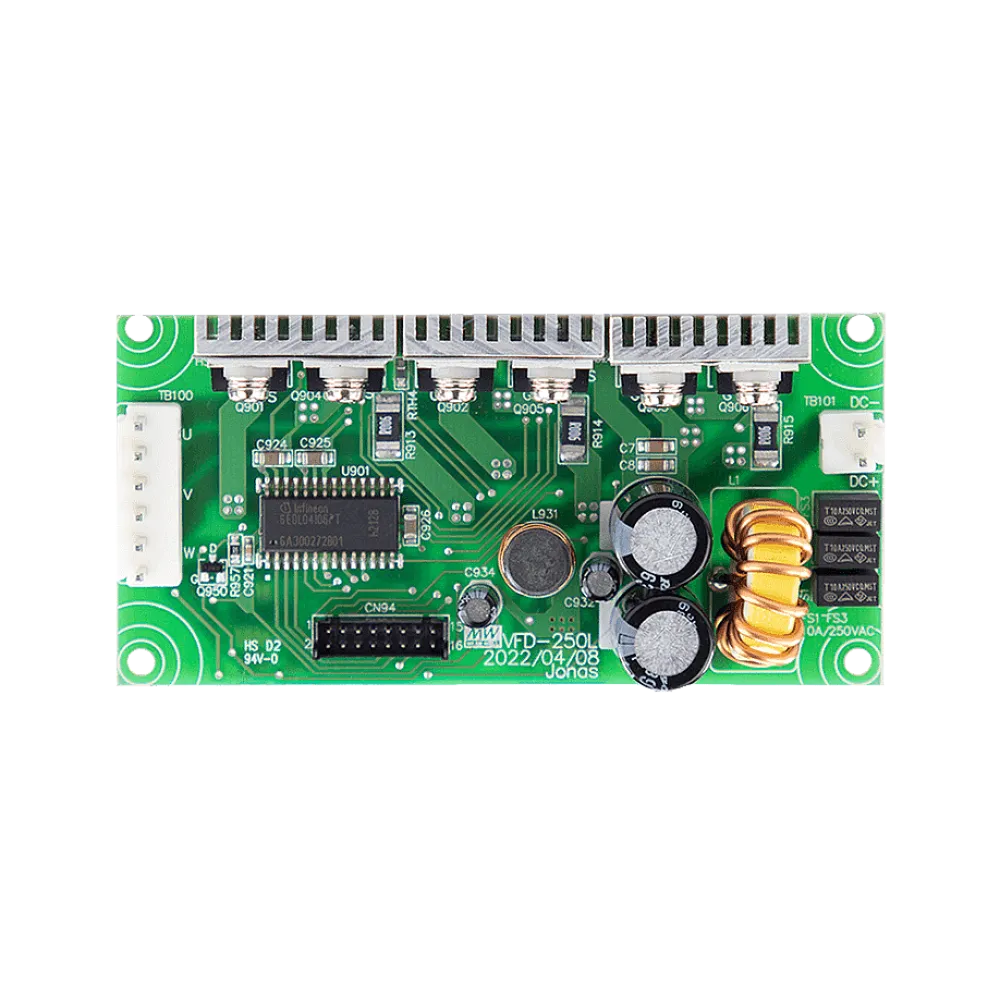

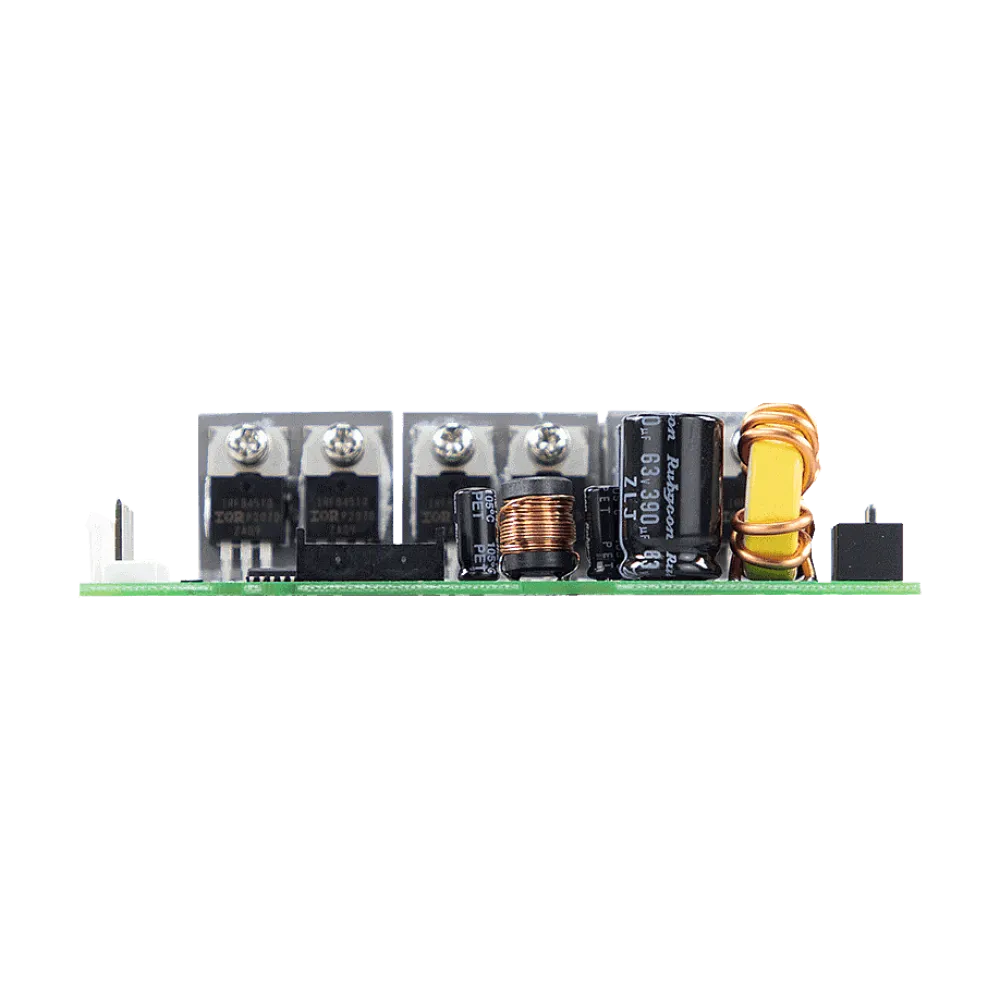

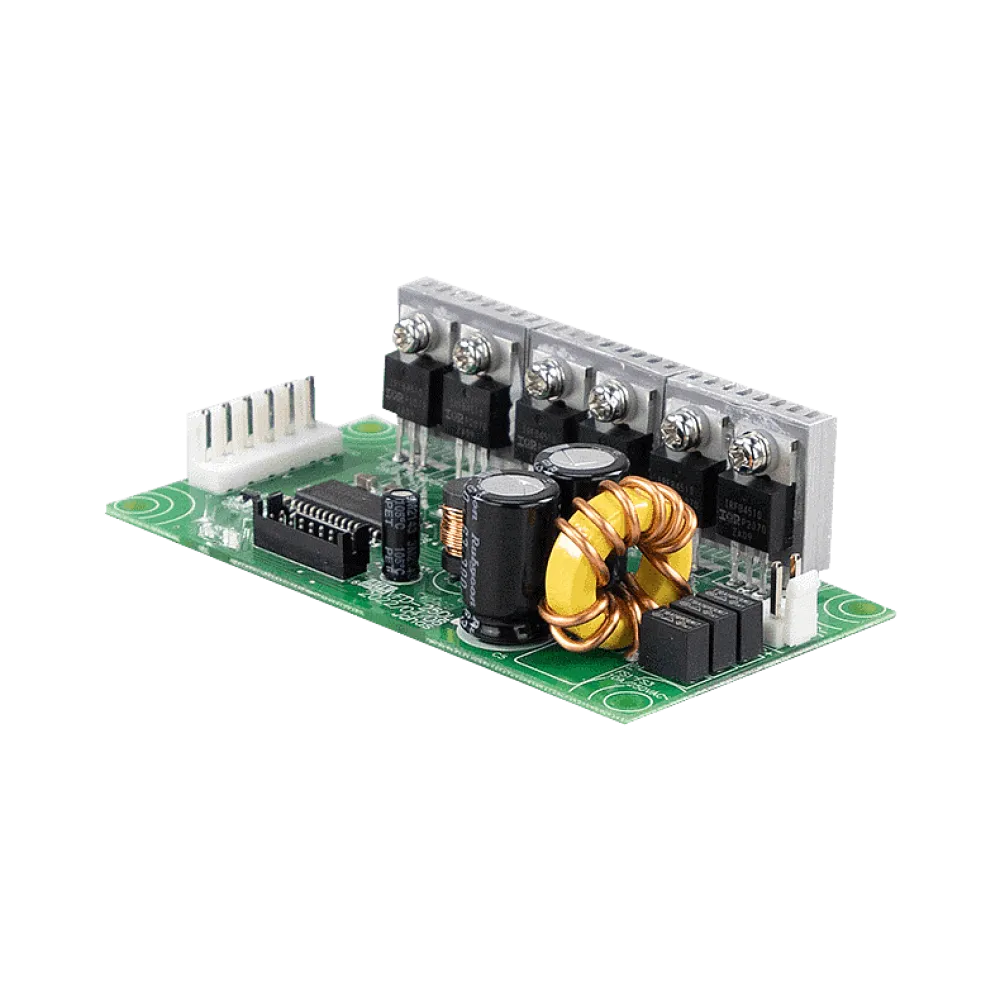

250W DC/DC Variable Frequency Drive for 48V class motor, 3-phase 0-34V / 7.2A

VFD-250P-48 is a vaiable frequency drive that can be controlled with external PWM controller. The input range is from 20Vdc to 55Vdc which is suitable for all kinds of installation. It is in size of 4x2. VFD-250P-48 able to deliver 200% peak load and with fan-less design, the life time can be extended. VFD is suitable for three-phase motor drive, such as BLDC, Induction motor, SynRM applications.

Technical data

• 4x2 miniature size
• 20 to 55Vdc input
• Controllable with external controller
• Fanless design for no-noise and expanding life cycle
• High surge current 200% for up to 5 seconds
• Protections: Short circuit / OCP
• Povided multiple sensors for control
  Current sensor- motor torque control
  DC bus voltage sensor – OVP / UVP
  Temperature sensor – OTP
• -30°C to 70°C wide operating temperature
• Suitable for three phase motor drive (BLDC, Induction motor, SynRM)
