About the product

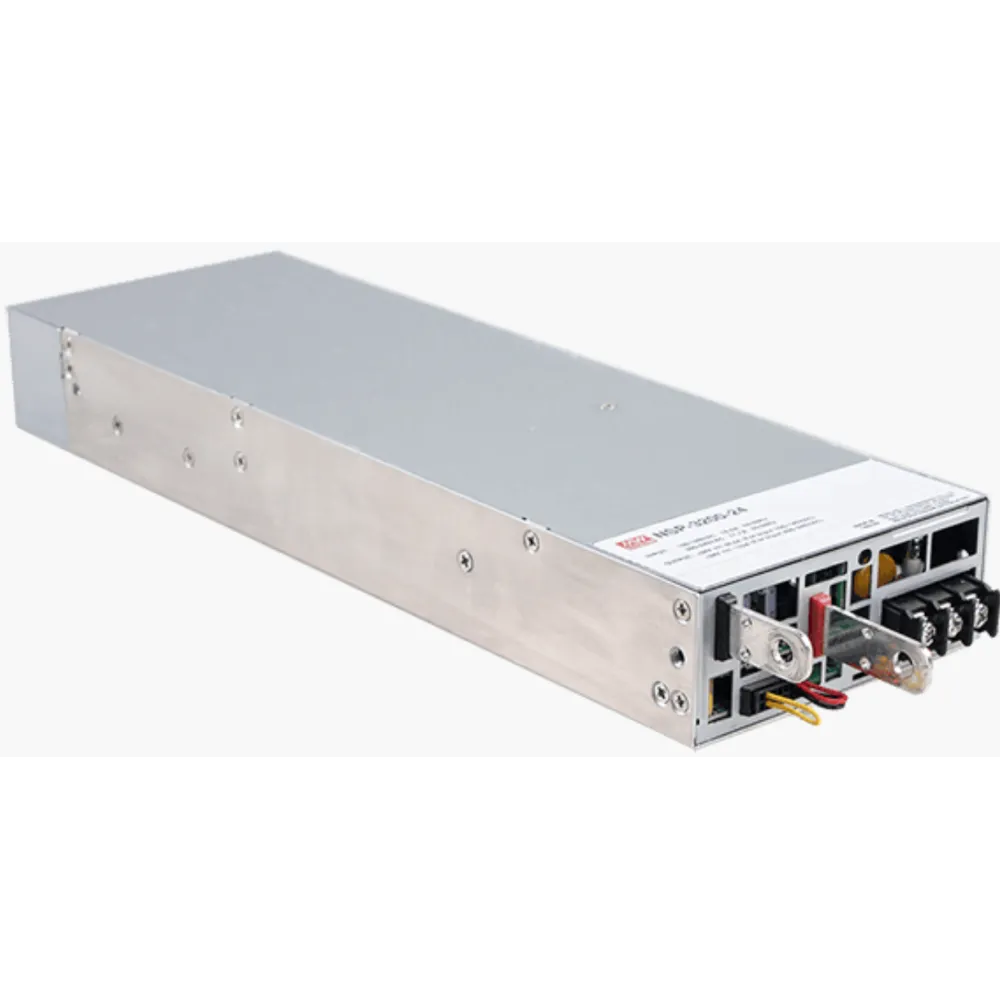

NPU-3200 is a 3.2kW power supply unit in 1U profile, a very high power density and excellent price-performance ratio.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Built-in remote sense and remote On/Off control
- Built-in 12V/0.8A auxiliary power
- Output voltage can be trimmed between 50 – 125% by external control signal
- DC OK signal, over temperature alarm signal (OTP)
- forced air cooling by built-in thermostatically controlled DC fan
- Working temperature range -30°C to +70°C
- Dimension 325.8 x 107 x 41mm (L x W x H)
- 5 Years Warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output voltage, Remote ON/OFF, Remote sense |
| Status signals | DC OK signal, temperature alarm |
| Additional functions | 12 V DC auxiliary output |
| Application | ITE/AV |
| Voltage setting range | 47.5-58.8 VDC |
| Height | 41 mm |
| Width | 107 mm |
| Length | 325.8 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 3200 W |
| Efficiency | 94.00% |
Data sheets
