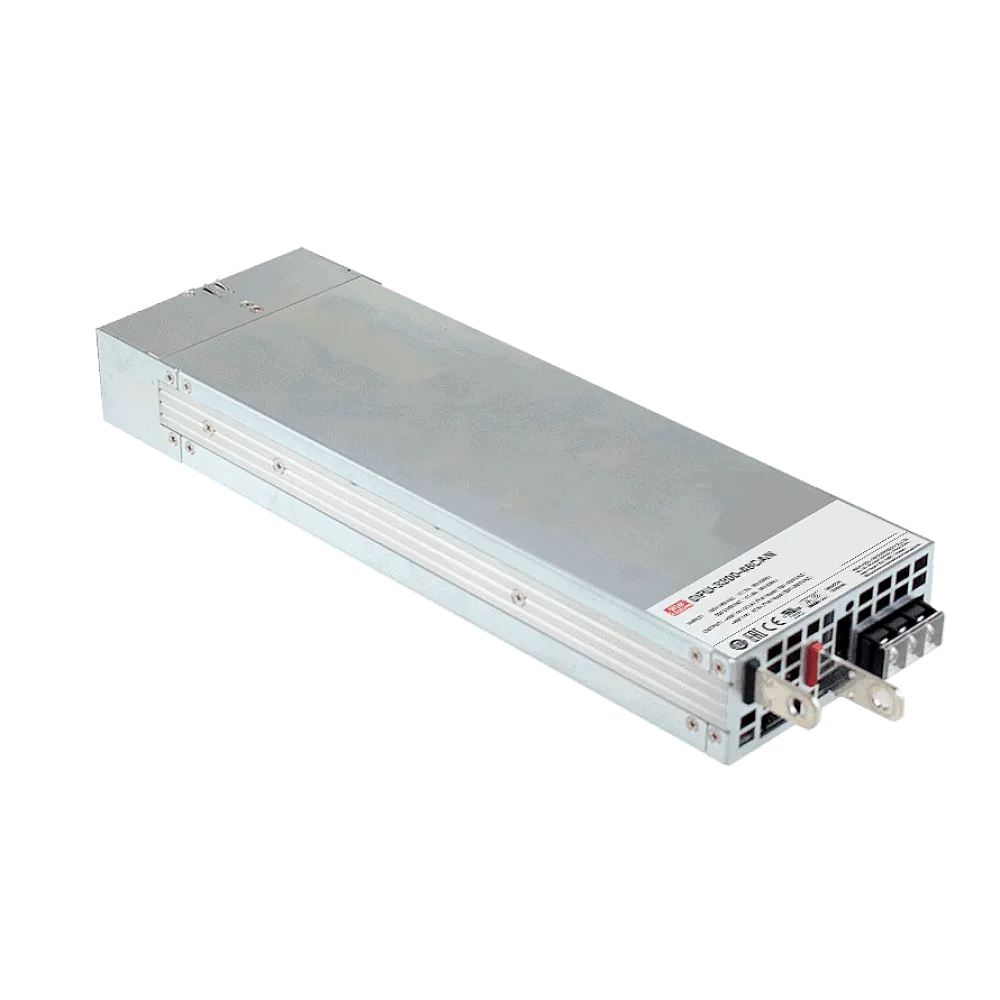

3216W Enclosed Power Supply 48V/67A
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Built-in remote sense and remote On/Off control
- Built-in 5V/0.3A and 12V/0.8A auxiliary power
- Output voltage can be trimmed between 50 – 125% by external control signal
- Active current sharing up to 16000W (4+1)
- DC OK signal, over temperature alarm signal (OTP)
- forced air cooling by built-in thermostatically controlled DC fan
- Working temperature range -30°C to +70°C
- Optional CANBUS or PMBUS protocol
- Dimension 325.8 x 107 x 41mm (L x W x H)
- 5 Years Warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF |
| Status signals | DC OK signal, temperature alarm |
| Additional functions | 5V DC auxiliary output, Parallel connectable |
| Application | ITE/AV |
| Voltage setting range | 24.0-58.8 VDC |
| Height | 41 mm |
| Width | 107 mm |
| Length | 325.8 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 3216 W |
| Efficiency | 94.00% |
