About the product

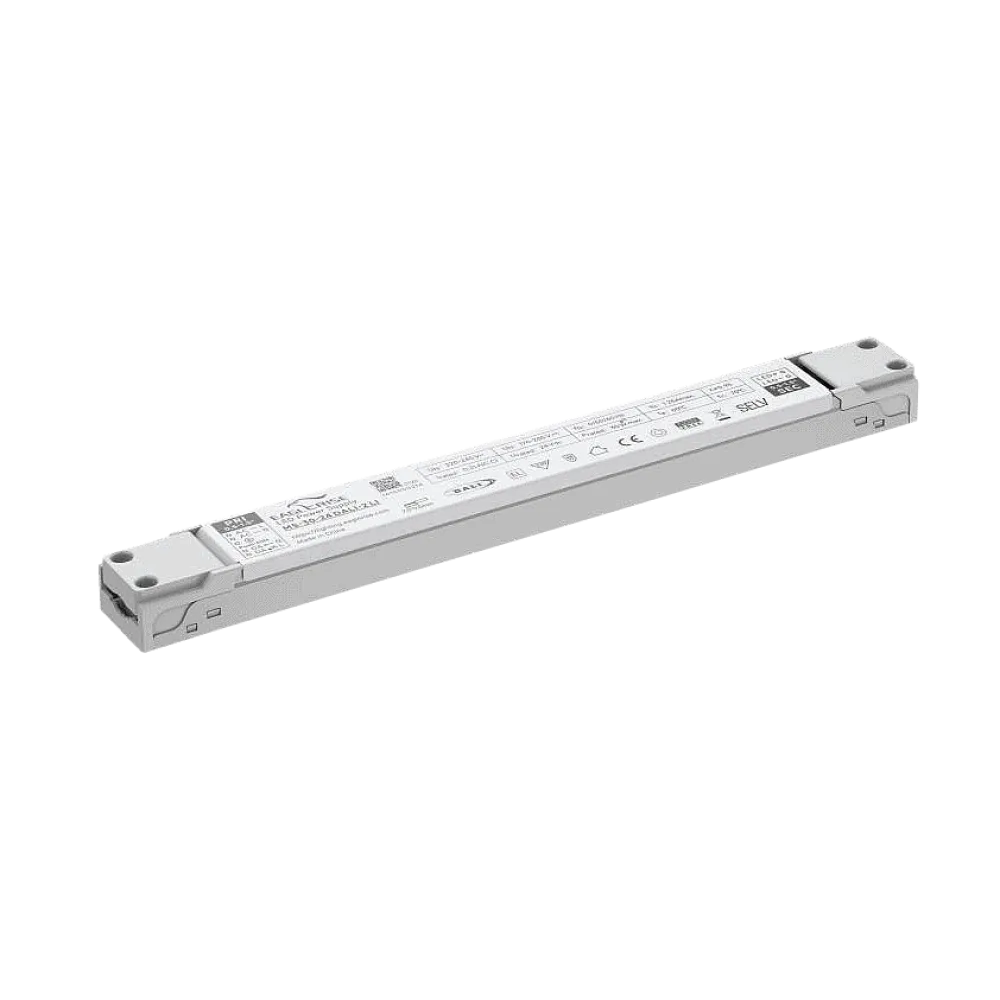

MS-30-24 DALI2 LI is a slim, flat 30W LED converter with 24Vdc output voltage. The light can be controlled via DALI2 or with a simple push button (AC Push). The 3kHz PWM dimming frequency ensures flicker-free dimming. The connection with cage clamps allows a quick and uncomplicated installation.
The dimensions of only 280x30x21mm make these LED drivers very suitable for integration in LED profiles and linear luminaires.
Technical data
- No-load power consumption <0.5W
- Built-in DALI2 interface and AC Push
- Output voltage with PWM dimming with high dimming frequency of 3kHz
- Protection class I driver with earth connection
- Metal housing
- Operating temperature range from -20°C to +60°C
- Dimensions 280 x 30 x 21mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Product series | MS |
| Input voltage range (VAC) | 220-240 V |
| Additional functions | EL mark |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 280 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI DT6, DALI2, DALI, AC Push Dimming |
| Channels | 1 |
| Output current | 1.25 A |
| Power | 30 W |
| Efficiency | 85.00% |
