About the product

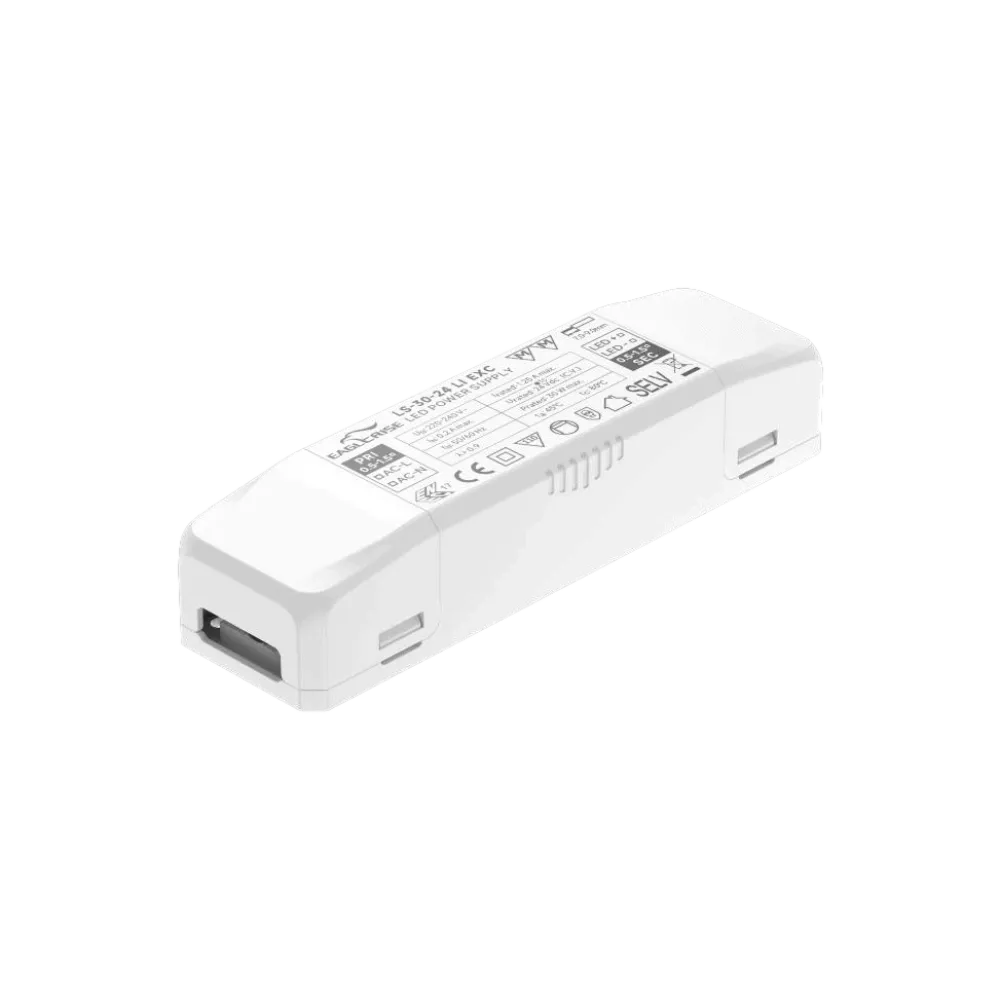

LS-30-24 LI EXC is a 30W constant voltage LED Driver. The class II design (without FG) accepts input from 198 to 264Vac. Equipped with terminal block and strain relief LS-30-24 EXC ideally fits the entry-level LED applications.
Technical data
- Life Time >50’000 Stunden
- Operating temperature range -20°C bis +45°C
- Dimensions 136 x 38 x 28mm (L x B x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Product series | LS |
| Input voltage range (VAC) | 220-240 V |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 28 mm |
| Width | 38 mm |
| Length | 136 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 1.25 A |
| Power | 30 W |
| Efficiency | 85.00% |
