About the product

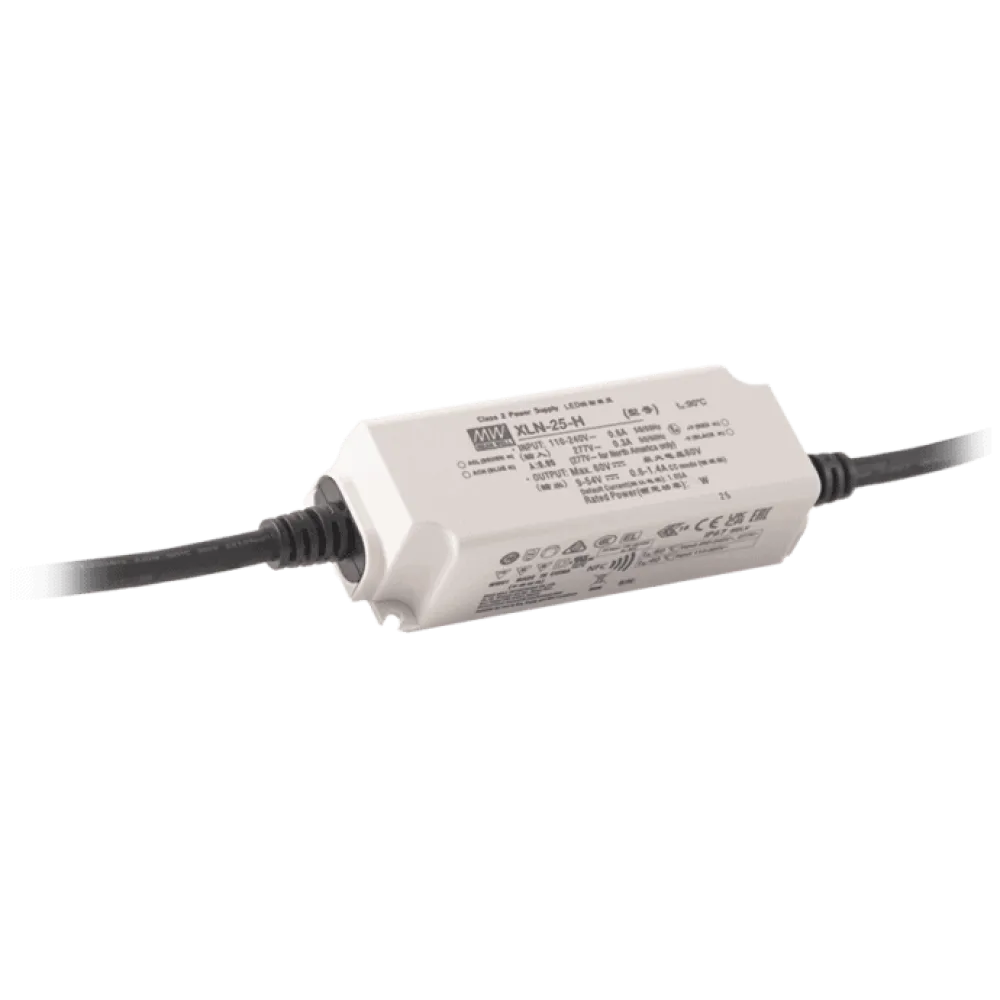

XLN-25-24 is a 25 Watt LED driver in IP67 plastic housing for 24Vdc LED applications
Technical data
- Fully moulded plastic housing with IP67 protection
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Power | 25 W |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Product series | XLN |
| Input voltage range (VAC) | 110-305 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 44 mm |
| Length | 114 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 1.05 A |
| Efficiency | 88.00% |
