Item ID: 2202
26W Tunable White LED Driver Constant Current 150-700mA, 9-42Vdc, DALI DT8
About the product

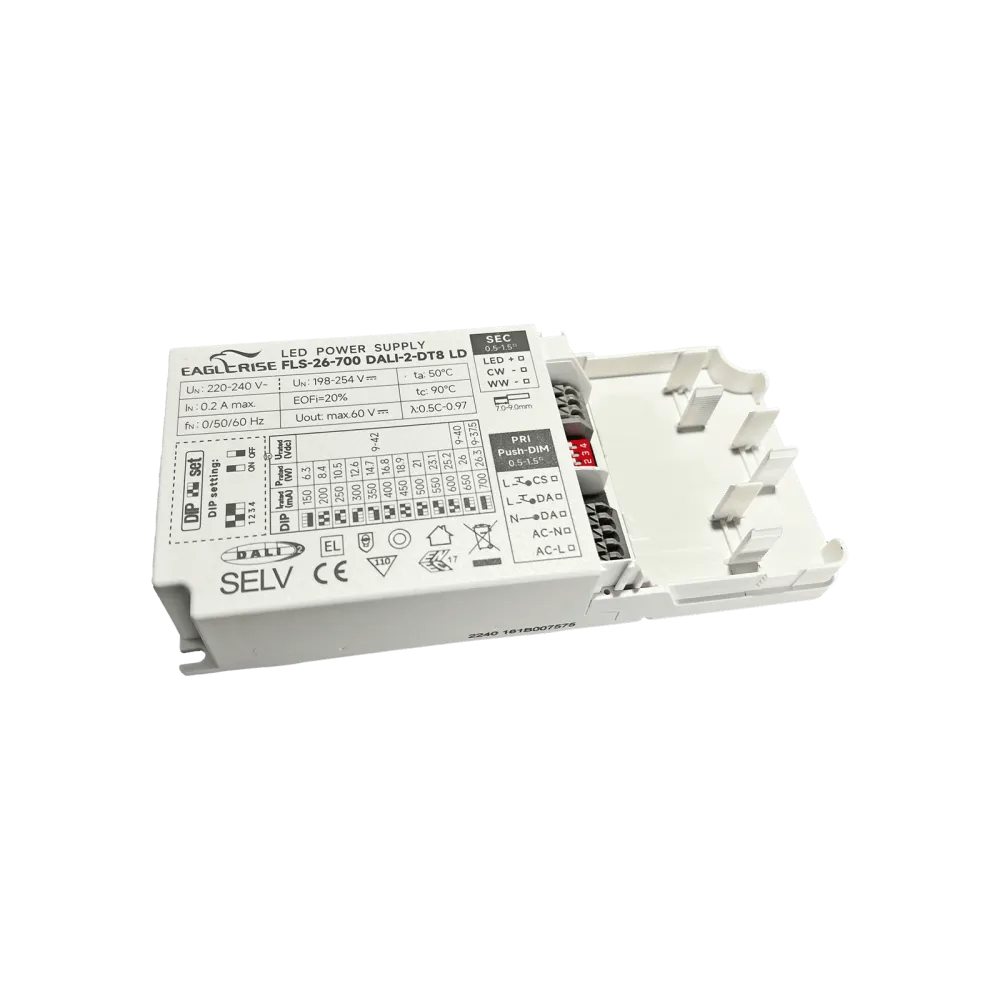

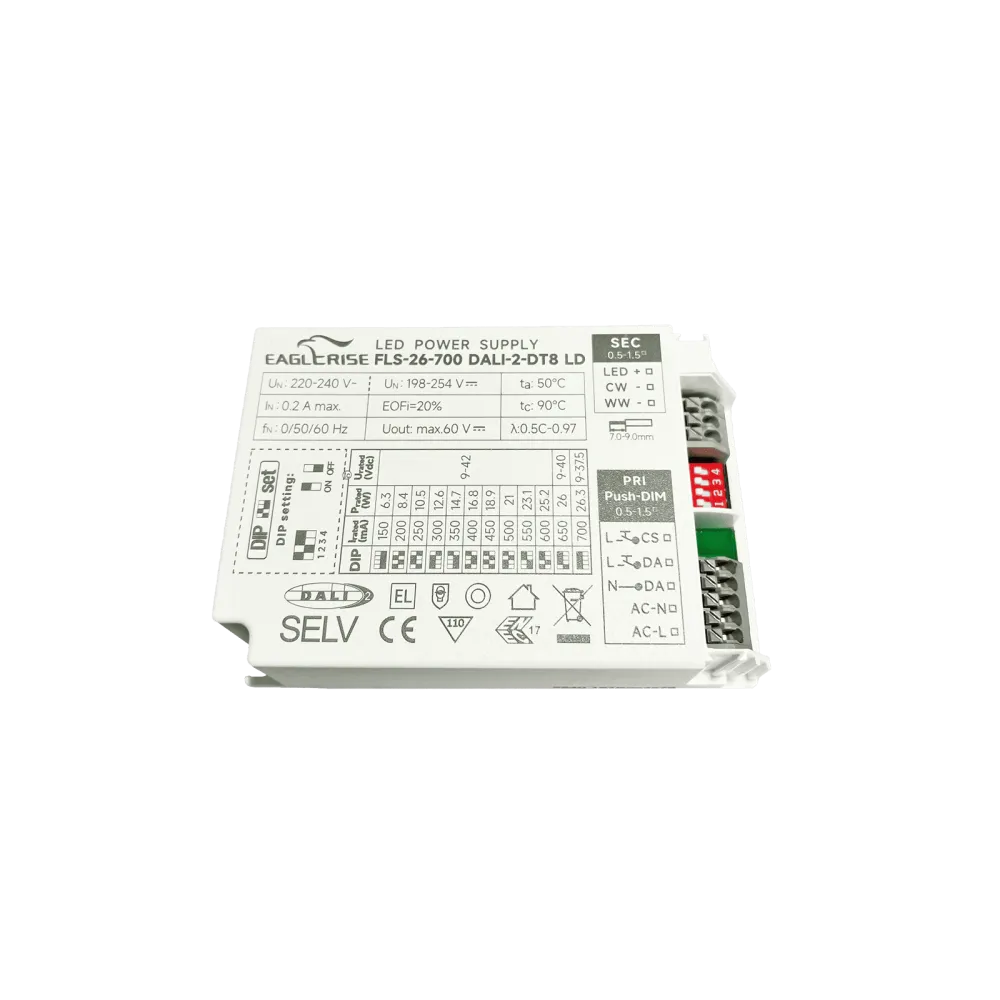

The LED driver FLS-26-700 DALI2 DT8 LD with constant current output is designed to operate Tunable White LED lighting applications from 150 to 700mA in the voltage range from 9 to 42Vdc. The output current can be set via DIP switch on the unit. Side covers with integrated strain relief are mounted for operation outside the luminaire. The driver can be dimmed with DALI2 and AC Push in the range 1-100%.
Two push-buttons are required for push-button operation. One push-button for brightness and one push-button for colour temperature.
Technical data
- Forward voltage range 9 to 42Vdc
- DALI2 DT8 and AC Push interface
- Amplitude dimming with dimming range 1…100%
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA
- Covers can be removed if not required
- Dimensions 110 x 74 x 30mm (L x W x H) without side cover / 160x74x30mm with side cover
Product specifications
| Power | 26 W |
| Output voltage range (VDC) | 9-42 V |
| Output current | 150-700 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Additional functions | EL mark |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 74 mm |
| Length | 110 mm |
| Application | Tunable white |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 2 |
| Control | DALI DT8, AC Push Dimming |
| Product series | FLS |
