About the product

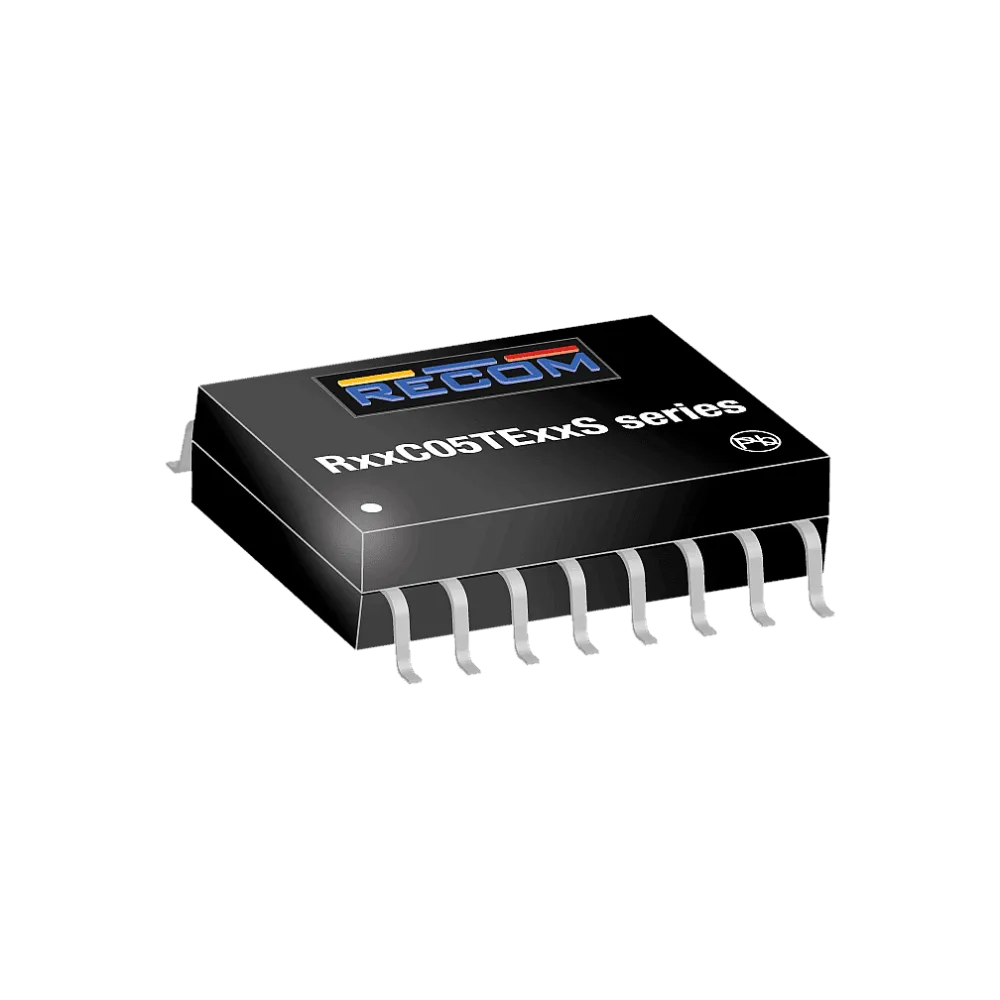

RECOM R05CTE05S is a low cost, low profile, 1W SMD isolated DC/DC single output converter with 4.5-5.5V input range and a semi-regulated 5V output. There is no minimum load requirement which is ideal for applications which switch into very light load operation modes. Standard isolation is 3kVDC/1min, and the operating temperature is from -40°C up to +125°C with derating. The fully-automated design which is equipped with short-circuit, over-current, and over-temperature protection ensures the highest reliability in applications such as communication, current sensing, and COM port isolation.
Tape&Reel: 500pcs per reel
Technical data
- Compact 10.35 x 7.5mm SMD package
- Low profile (2.5mm)
- 3kVDC/1min isolation
- Low EMI emissions
- Ultra-wide temperature range -40°C to +125°C
- Fully automated, high-reliability design
- Semi-regulated 5V output
- Tape&Reel à 500pcs
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 72°C |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 2.5 mm |
| Width | 7.5 mm |
| Length | 10.3 mm |
| Package / case | SMD16 |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 4.5-5.5 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 200000 mA |
| Power | 1 W |
| Efficiency | 54.00% |
