About the product

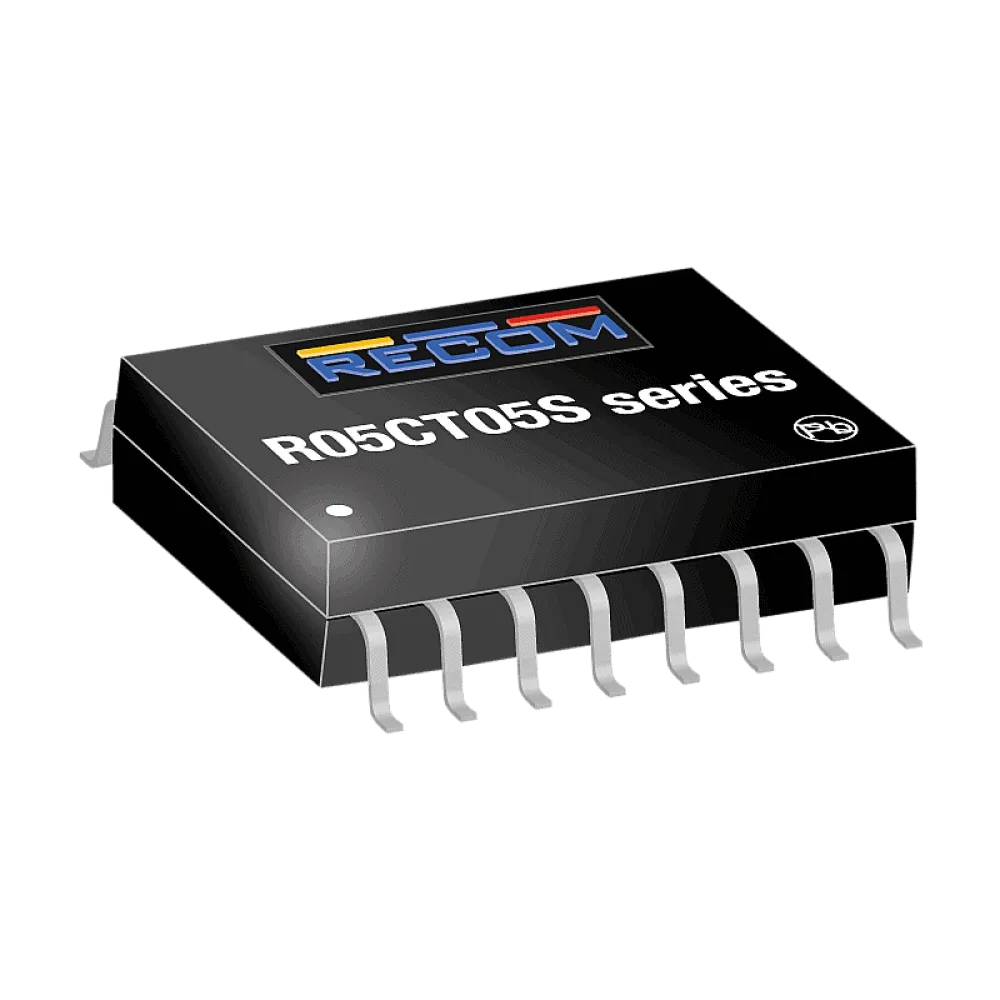

Low cost, low profile, 500mW SMD isolated DC/DC single output converter ideal for applications such as communication, current sensing, and medical applications which require robust isolation. The R05CT05S is a single solution with 5V input and a user-definable single, regulated 3.3V or 5V output. There is no minimum load requirement. Standard isolation is 5kVAC/1min with a 2MOPP rating for medical applications. The operating temperature is from -40°C up to +140°C with derating.
Technical data
- Compact 10.3 x 7.5mm SMD package
- 5kVAC reinforced isolation
- 5V or 3.3V post-regulated, selectable outputs
- Low EMI emissions
- Ultrawide temperature range (-40°C to +140°C)
- Low profile (2.6mm)
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 55°C |
| Manufacturer | Recom |
| Application | ITE/AV, Medical |
| Height | 2.65 mm |
| Width | 7.5 mm |
| Length | 10.3 mm |
| Package / case | SMD16 |
| Regulation | Regulated |
| I/O isolation | 5000 V AC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 4.5-5.5 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 100000 mA |
| Power | 0.5 W |
| Efficiency | 60.00% |
