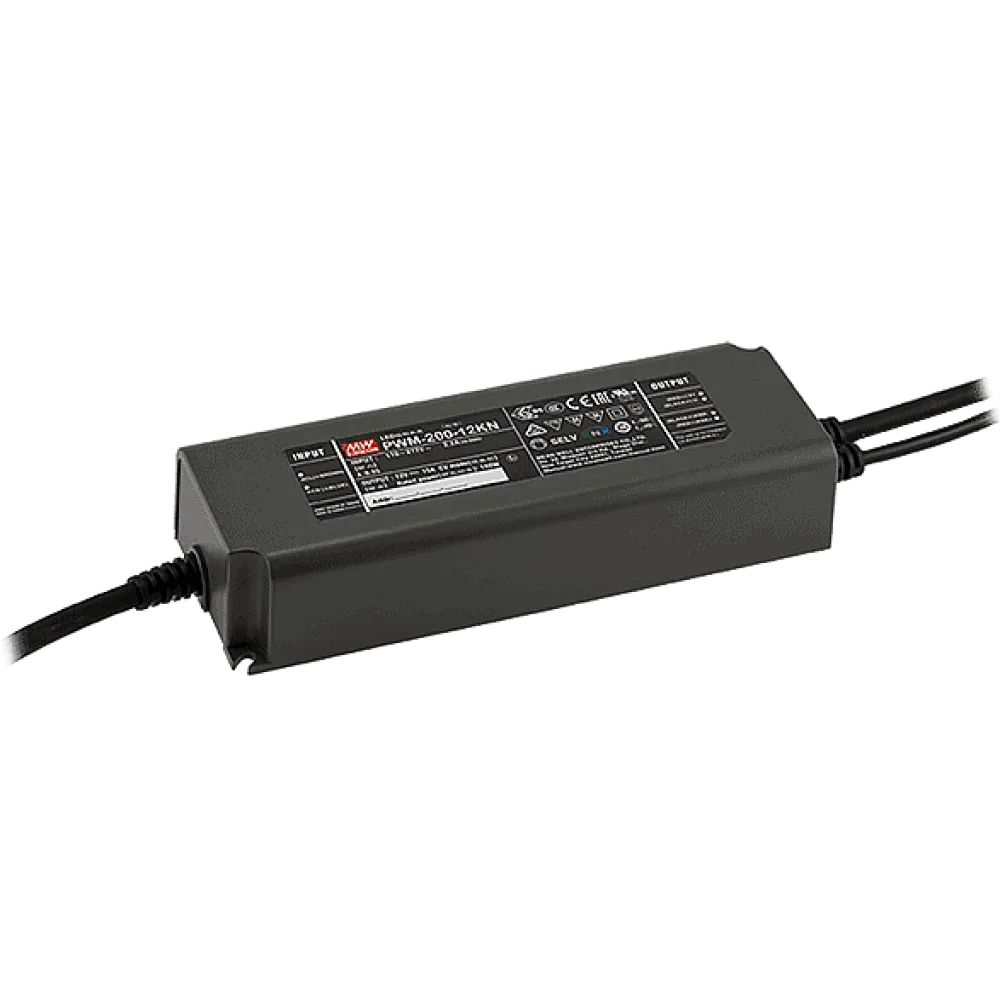

180W LED Driver with PWM Output 12V/15A, KNX

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogenity when driving all kinds of LED strips. PWM-200KN featuring the KNX control so that the integration into a KNX building automation system is greatly simplified.

Technical data

Universal AC input 90 to 305Vac
Constant voltage output
Built-in KNX Interface
KNX Secure
ETS Functions: Manual dim, operation hours, power consumption feedback, log/linear dimming curve selection, PWM frequency setting etc.
PWM style dimming with frequency 4kHz
No load power consumption 0.5W
Class II power unit, without FG
Dimension 195 x 68 x 39.5mm (L x W x H)
5 years warranty

Product specifications

Output voltage (VDC)	12 V
Manufacturer warranty	5 years
Product series	PWM
Input voltage range (VAC)	110-277 V
Additional functions	EL mark
Connection	Cable
IP protection	IP67
Height	39.5 mm
Width	68 mm
Length	195 mm
Application	Single color
Dimming method	PWM
Control	KNX
Channels	1
Output current	15 A
Power	180 W
Manufacturer	MEAN WELL
