120W LED Driver with PWM Output 12V/10A, DALI

Delivery at your place between May 22 and Jun 26 2025

Add to cart

About the product

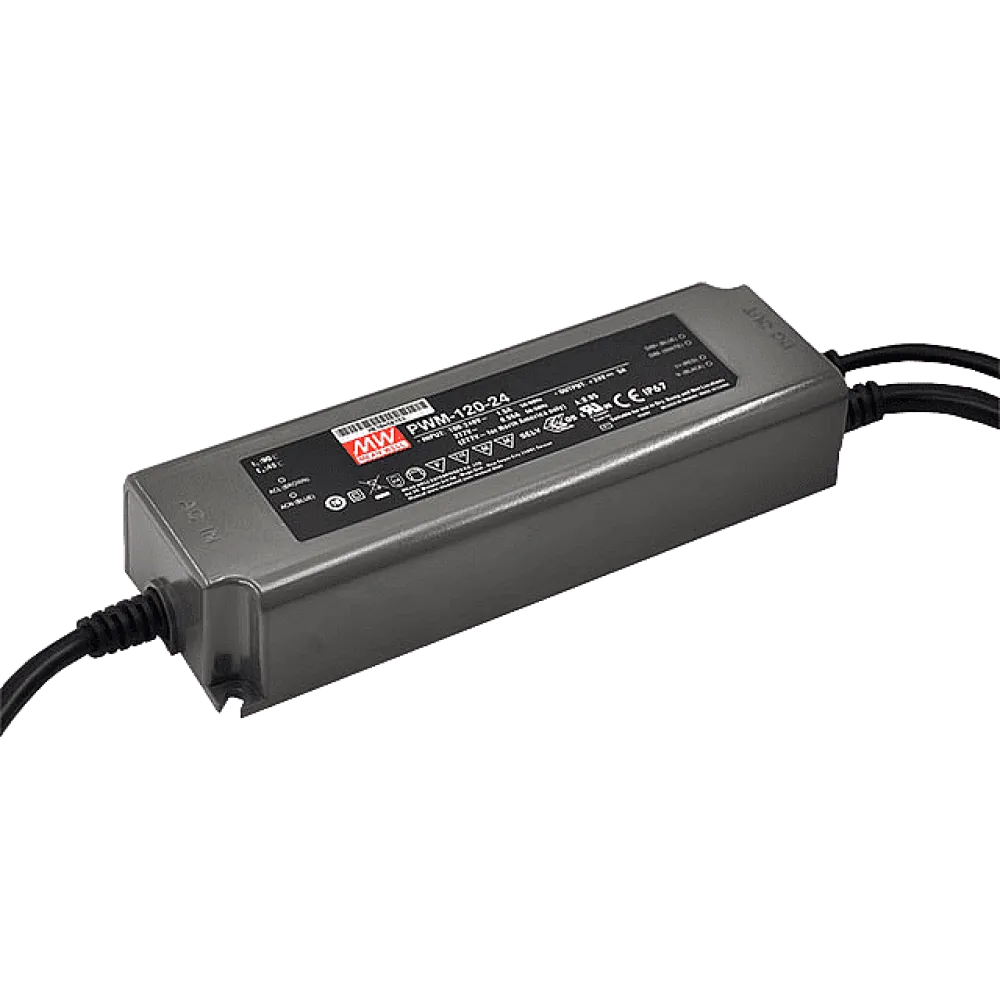

Mean Well PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The DALI interface makes it easy to integrate into building control systems.

Technical data

Universal AC input 90 to 305Vac
Constant voltage output
Built-in DALI Interface
PWM style dimming with frequency 1.47kHz
No load power consumption <0.5W
Fully isolated plastic case with IP67 level
Class II power unit, without FG
Dimension 191 x 63 x 37.5mm (L x W x H)
5 years warranty
Manufacturer: MEAN WELL

Product specifications

Output voltage (VDC)	12 V
Manufacturer warranty	5 years
Product series	PWM
Input voltage range (VAC)	100-277 V
Connection	Cable
IP protection	IP67
Height	37.5 mm
Width	63 mm
Length	191 mm
Application	Single color
Dimming method	PWM
Control	DALI
Channels	1
Output current	10 mA
Power	120 W
Manufacturer	MEAN WELL
