About the product

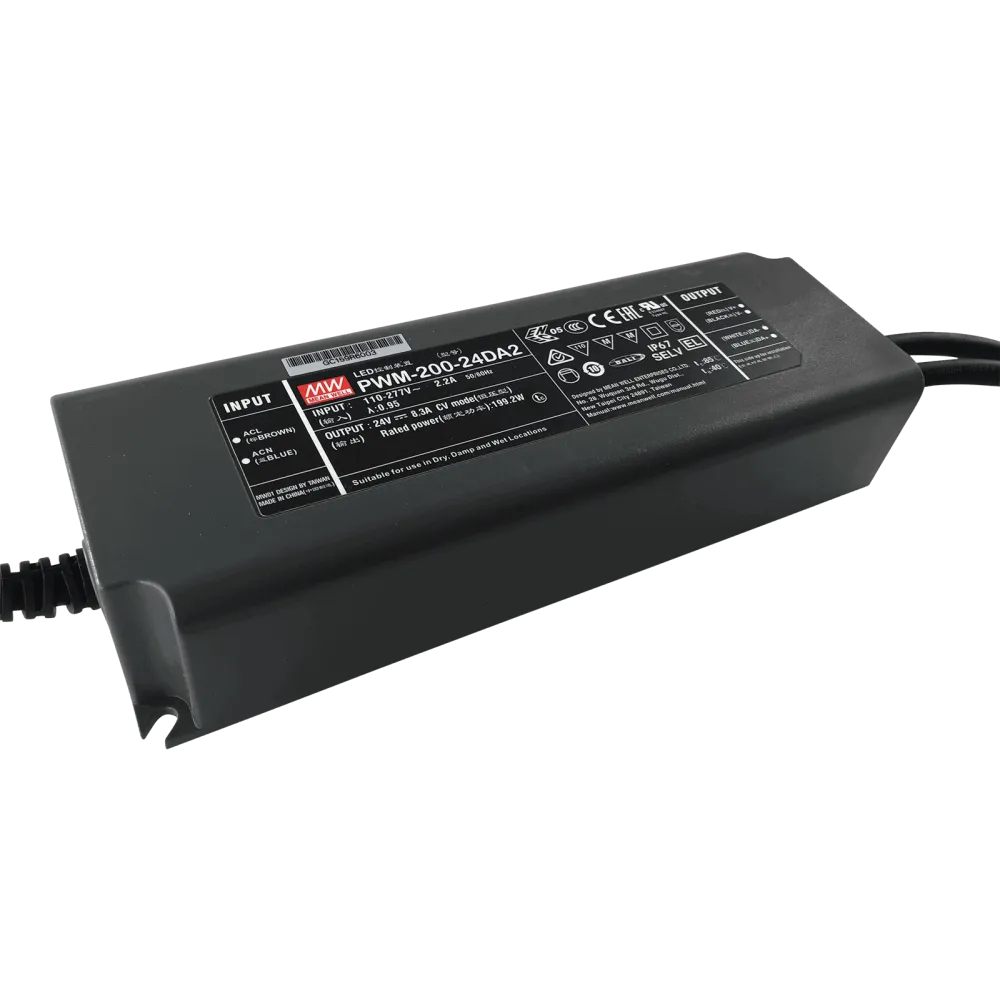

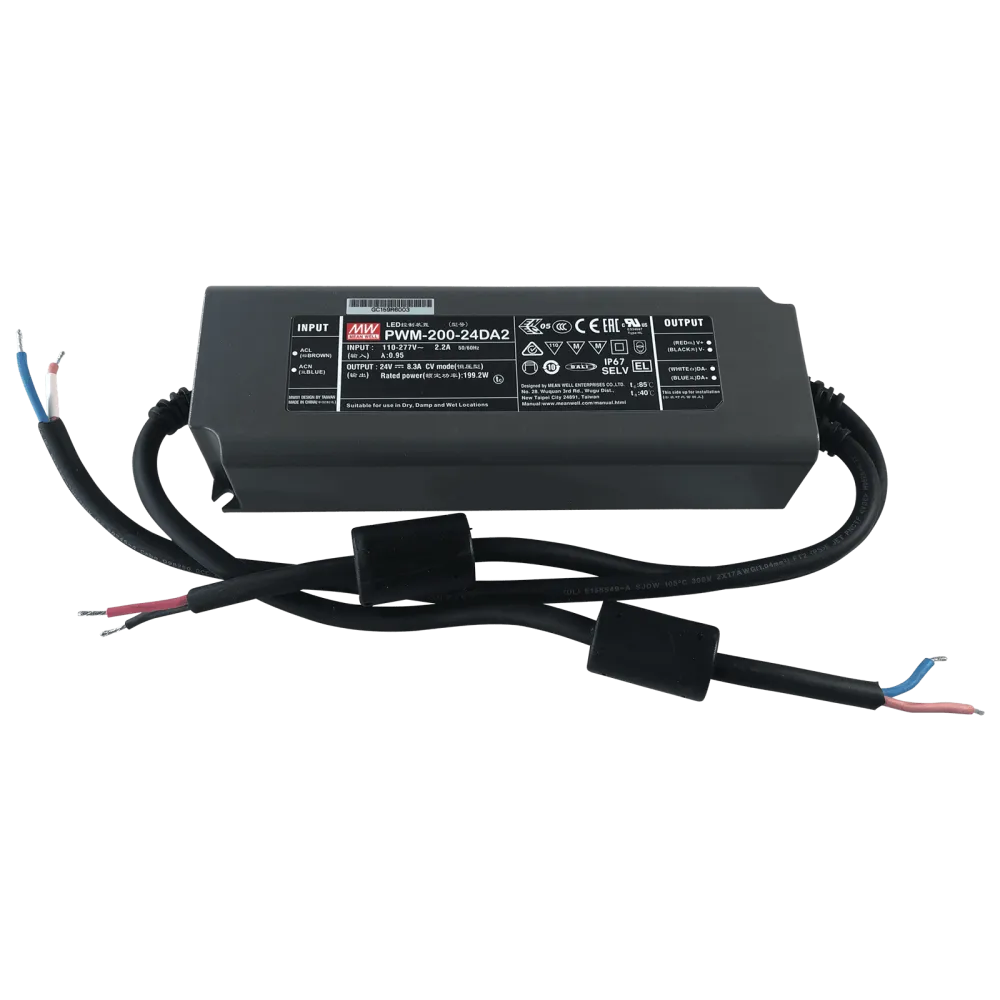

PWM-200DA2 series is an AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The light can be controlled via DALI 2.0 or with a simple push button (AC Push).
Technical data
- Universal AC input 100 to 305Vac
- Constant voltage output
- Built-in DALI 2.0 Interface and AC push
- PWM style dimming with frequency 2.5kHz
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- No load power consumption 0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 195 x 68 x 39.5mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 110-277 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 68 mm |
| Length | 195 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI2, DALI, AC Push Dimming |
| Channels | 1 |
| Output current | 15 A |
| Power | 180 W |
| Manufacturer | MEAN WELL |
